Function Diagrams



Function Diagram For Power Windows pe72.29-p-2050daa

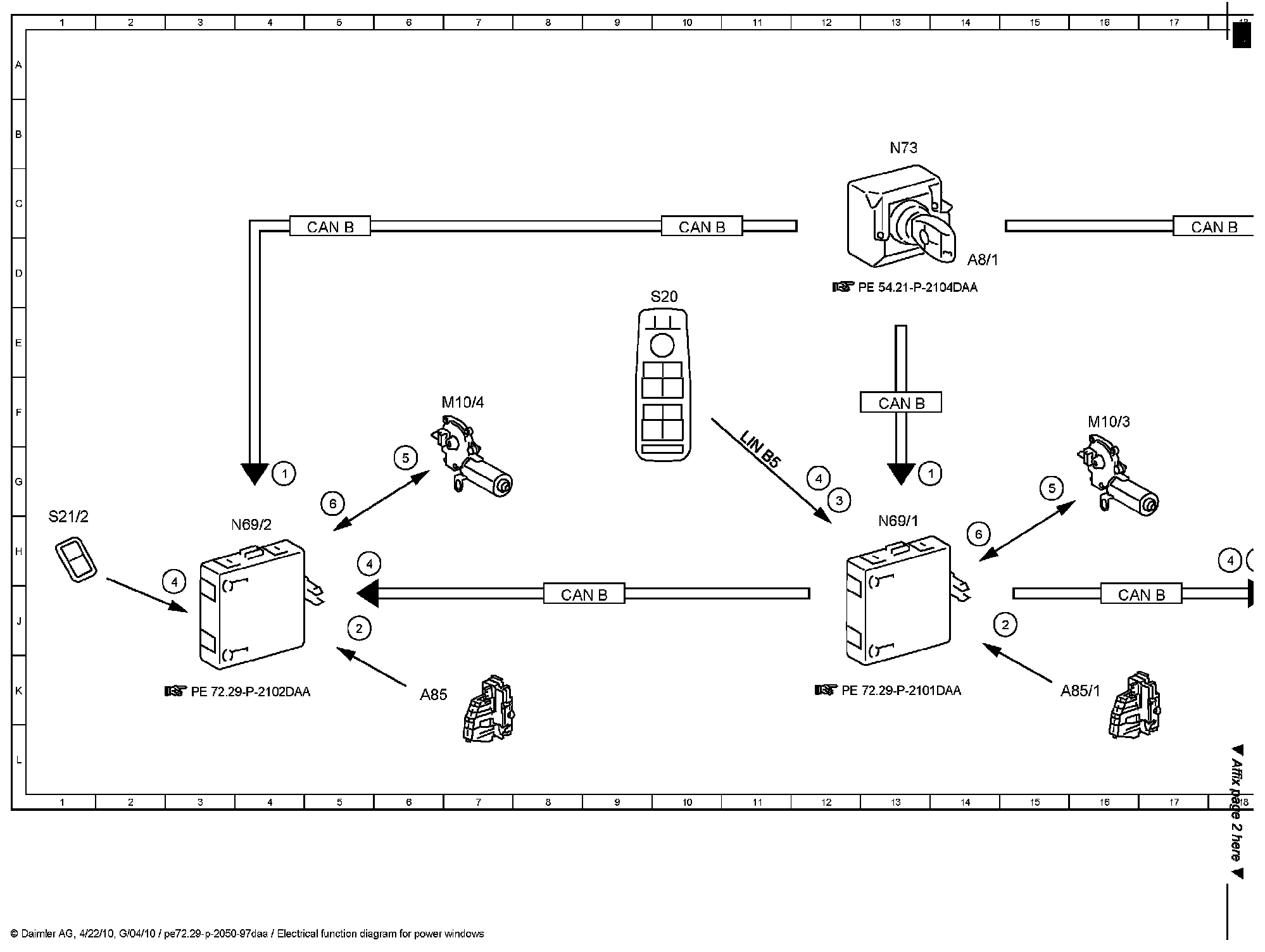

Function Diagram (Part 1):

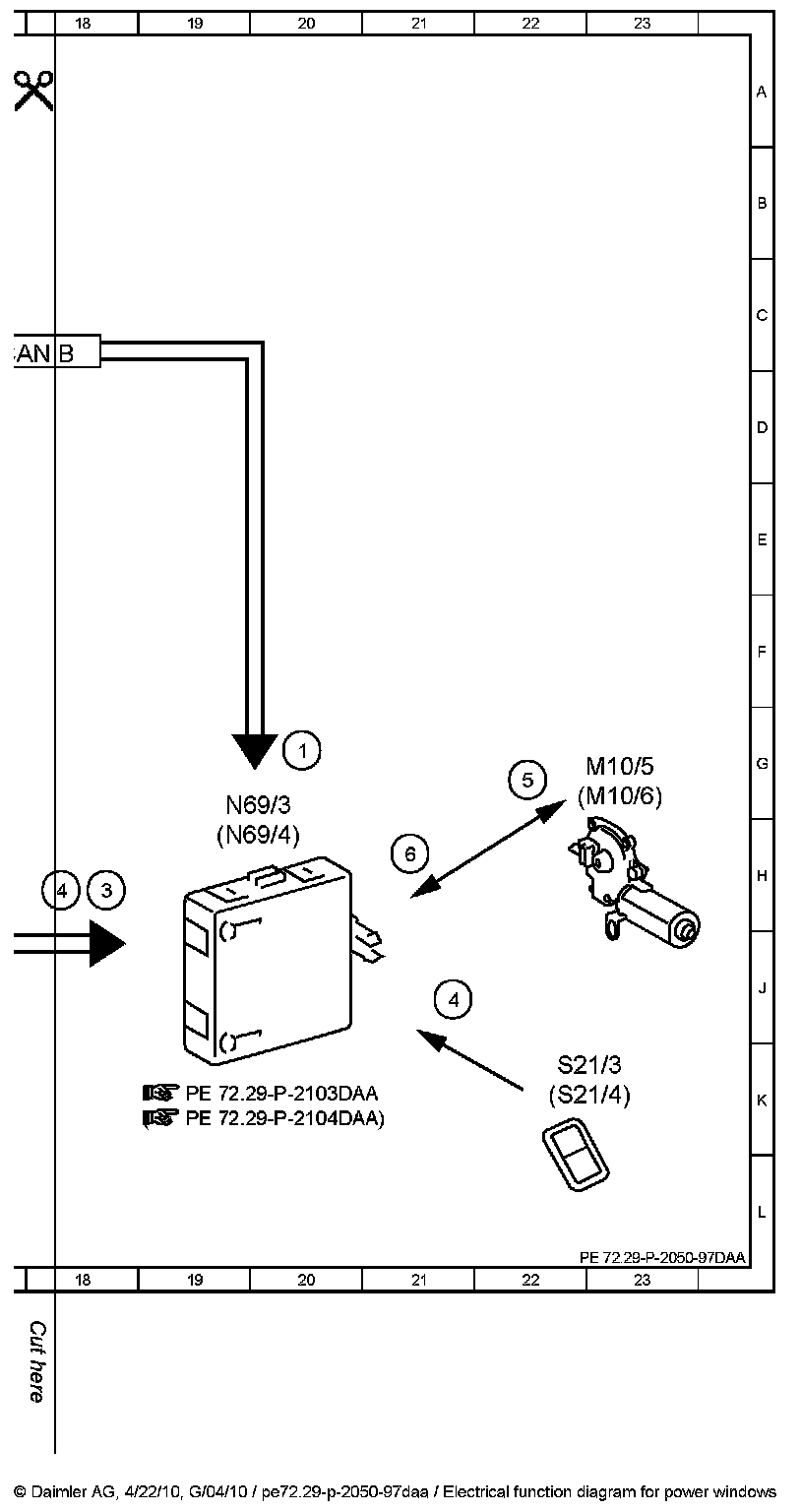

Function Diagram (Part 2):

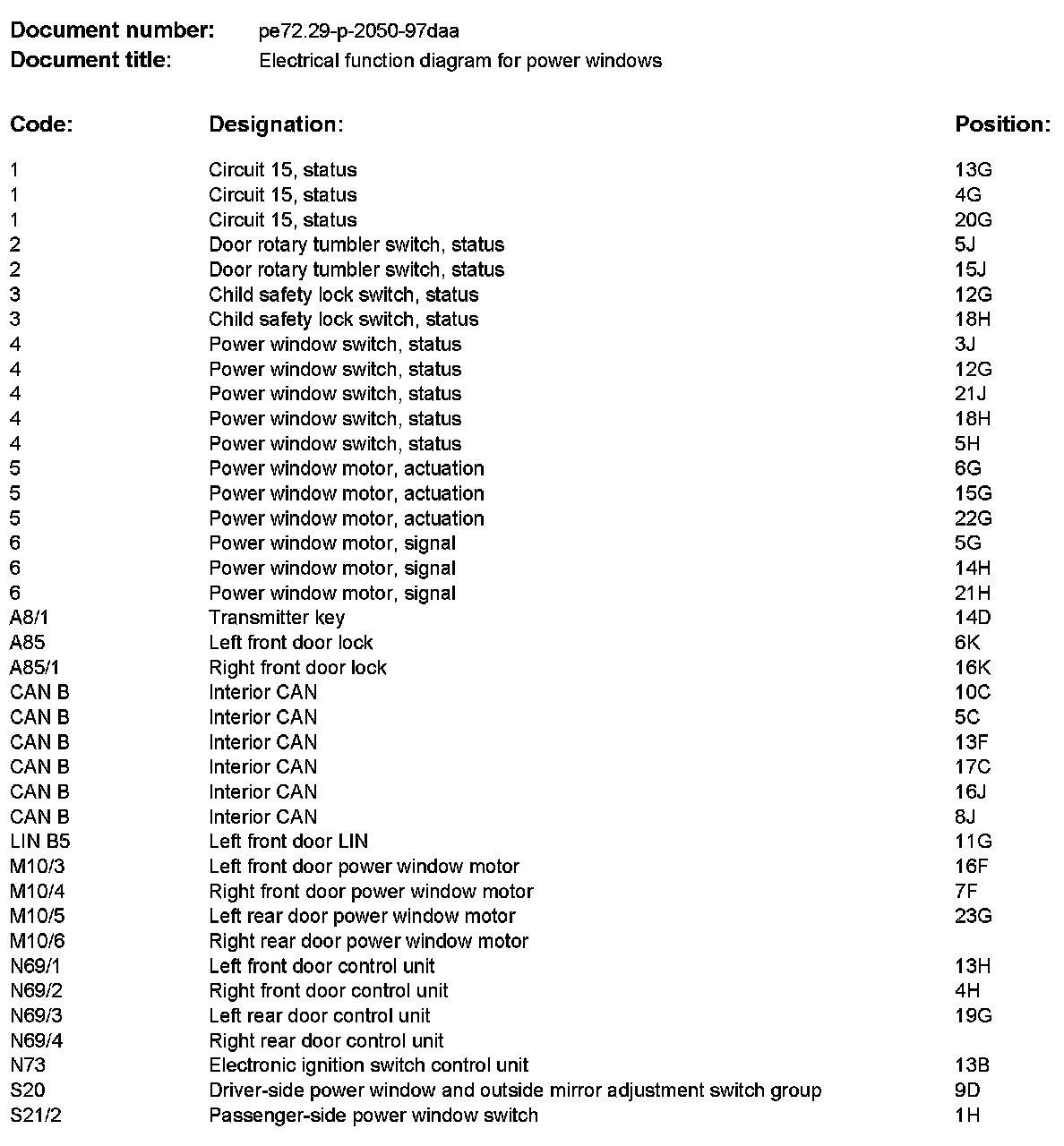

Component Description/Coordinates, 1 To S21/2:

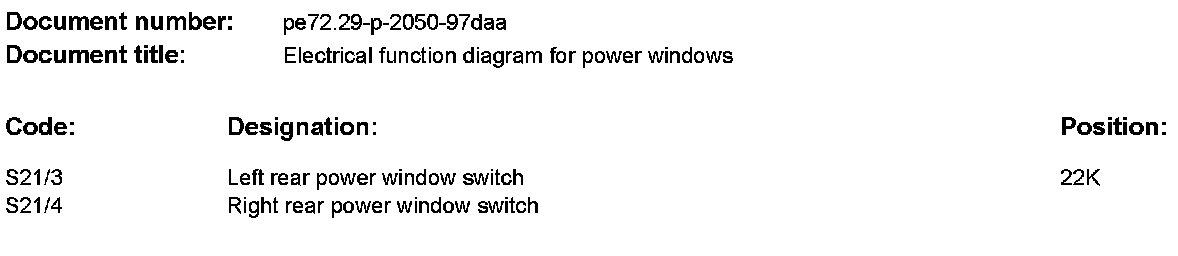

Component Description/Coordinates, S21/3 To S21/4:
