AP31.11-P-3152EW Check Condition and Operation of Trailer Hitch



AP31.11-P-3152EW Check Condition And Operation Of Trailer Hitch

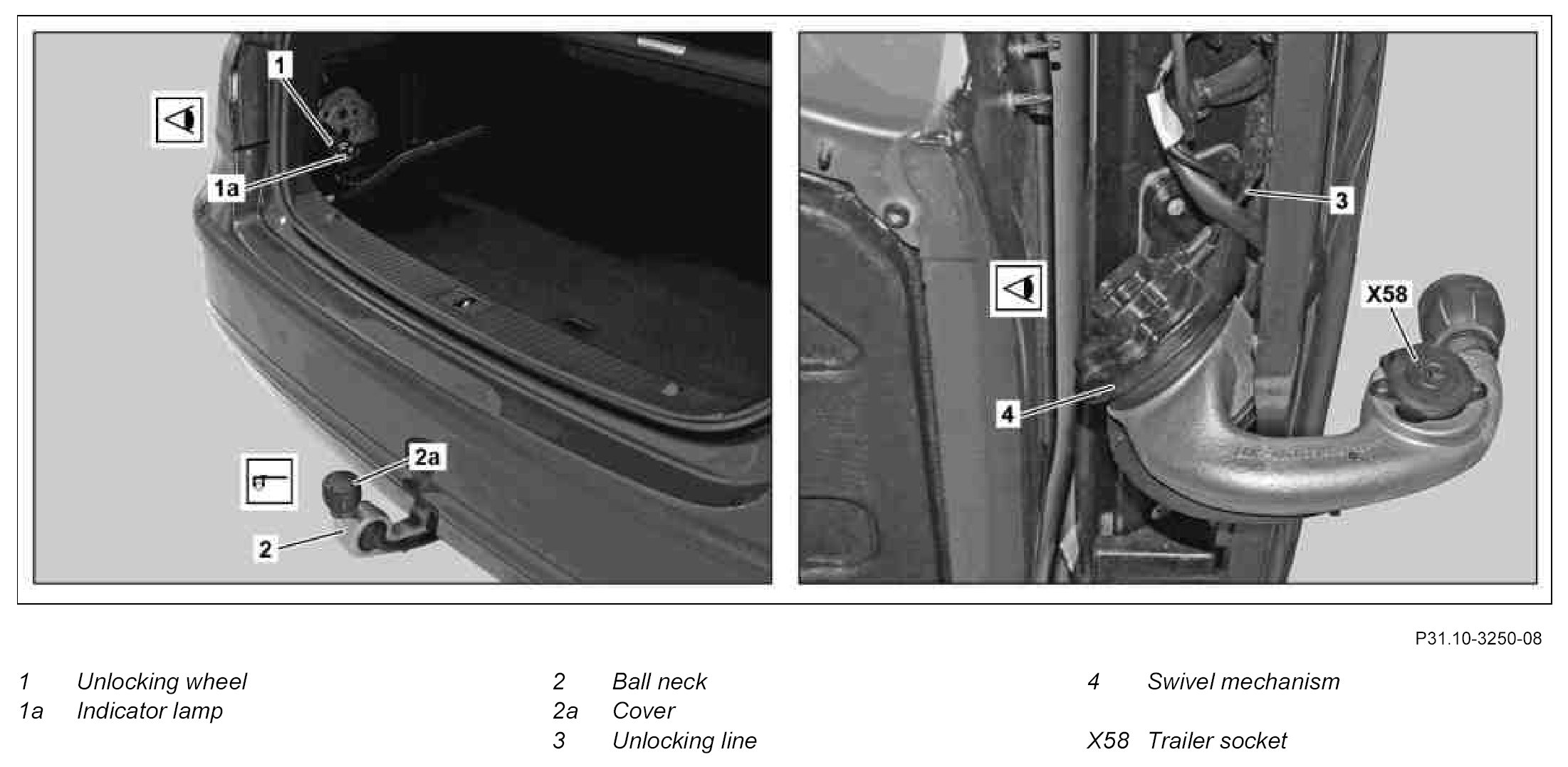

Component Identification:

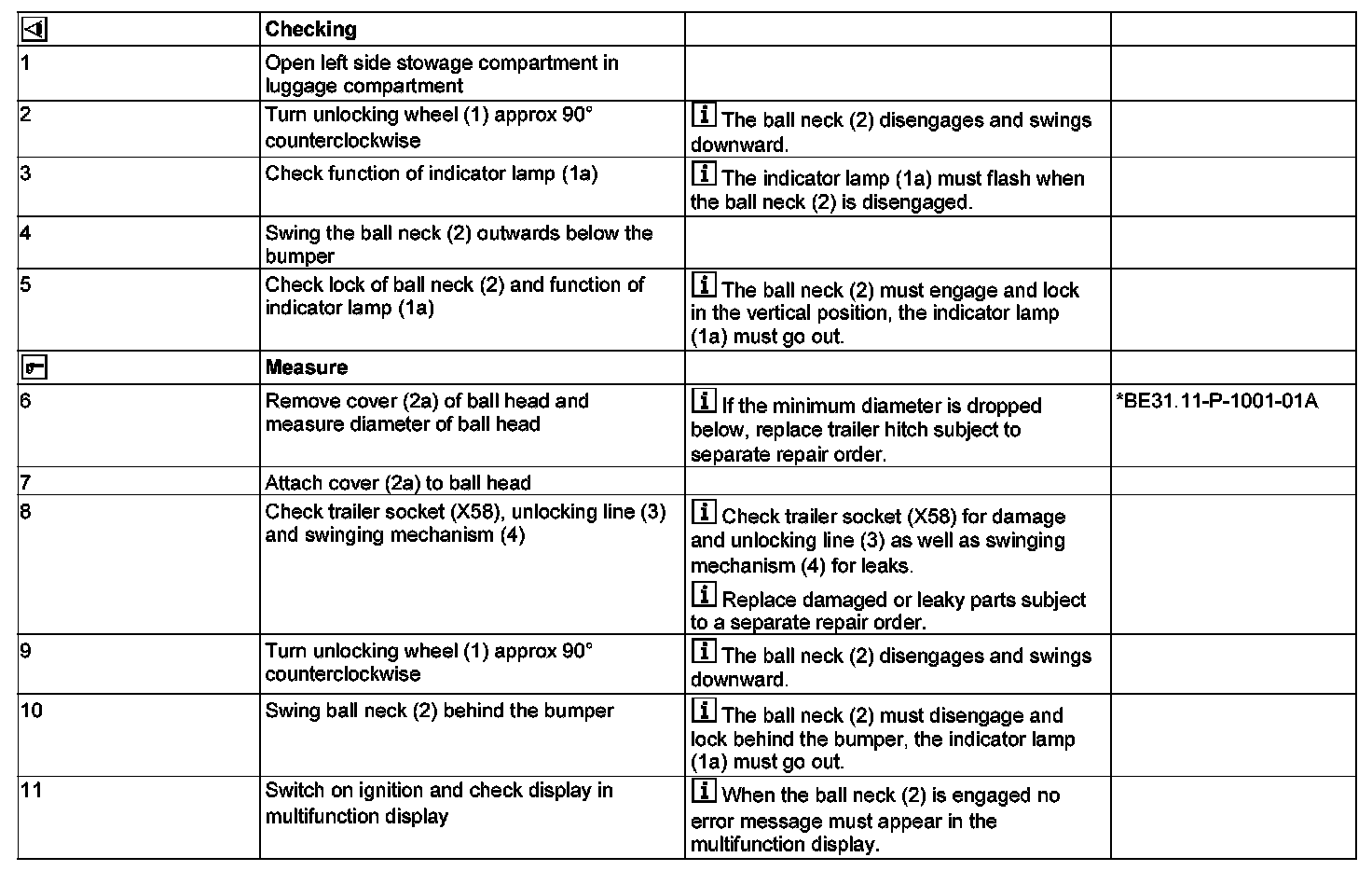

Steps 1 - 11:

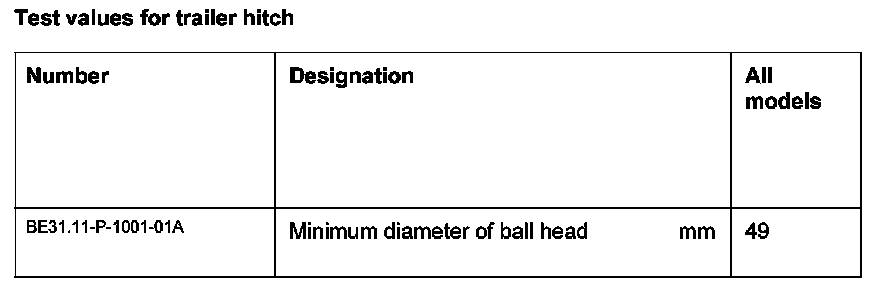

Test Values For Trailer Hitch:
