AN31.10-P-0001EW Retrofit Mechanical Swing-Away Trailer Hitch

AN31.10-P-0001EW Retrofit Mechanical Swing-Away Trailer Hitch
- Model 212.0## (except 212.077) 1#
- except CODE (460) Canada version
- except CODE (494) USA version
- except CODE (498) Japan version

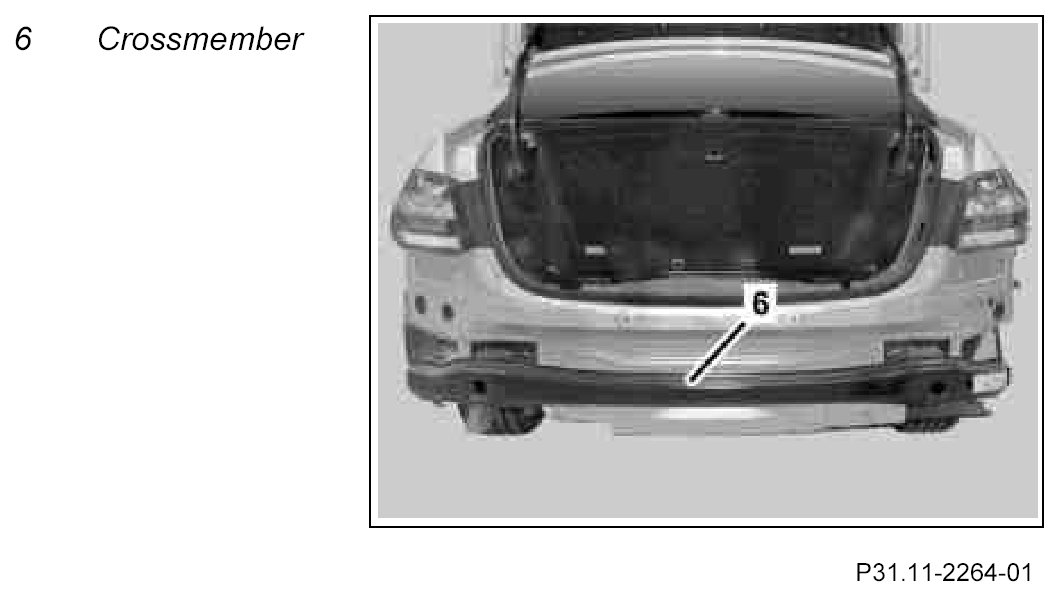

Component Identification:

Component Identification:

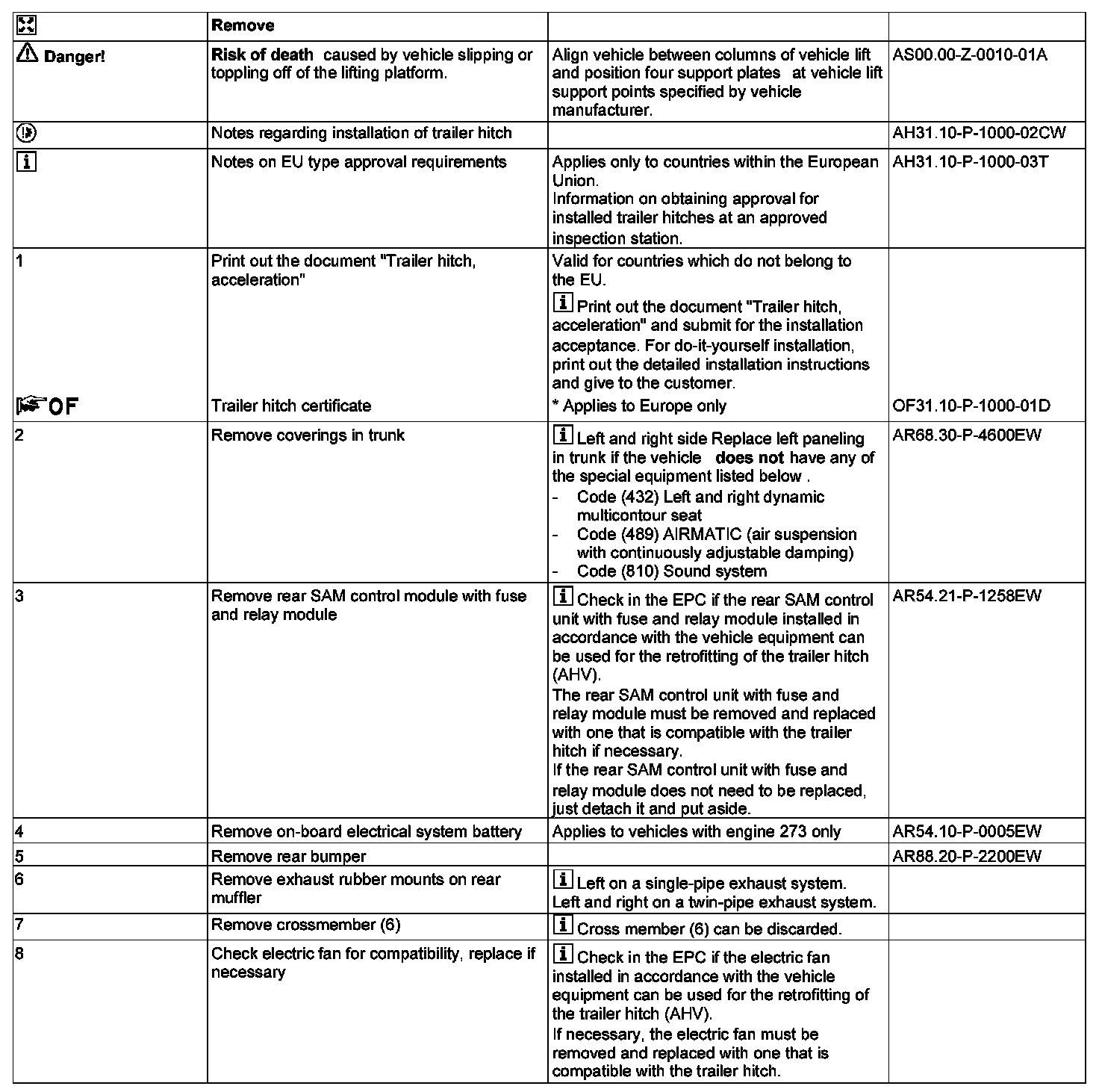

Steps 1 - 8:

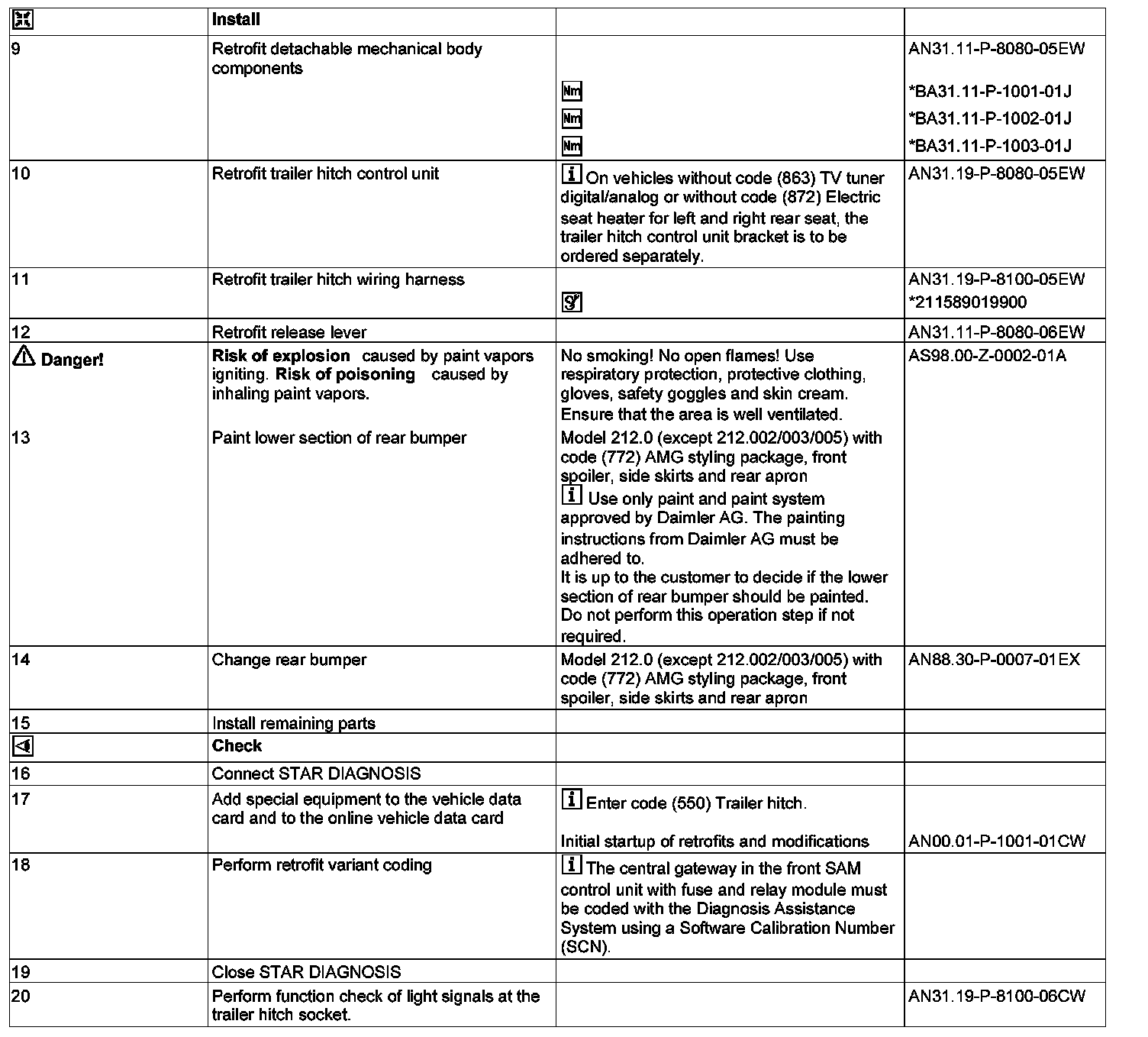

Steps 9 - 20:

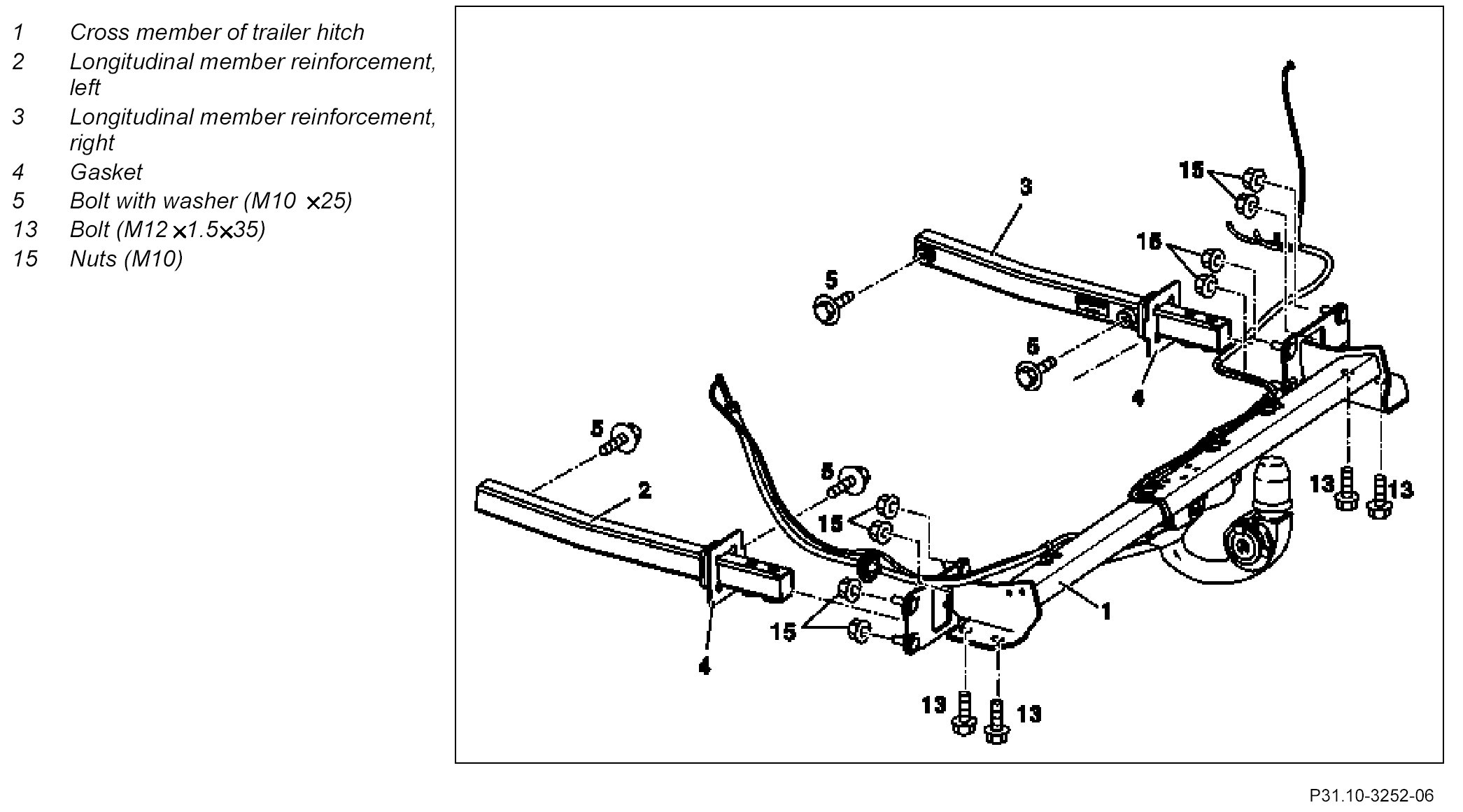

Trailer Hitch Mechanical System:

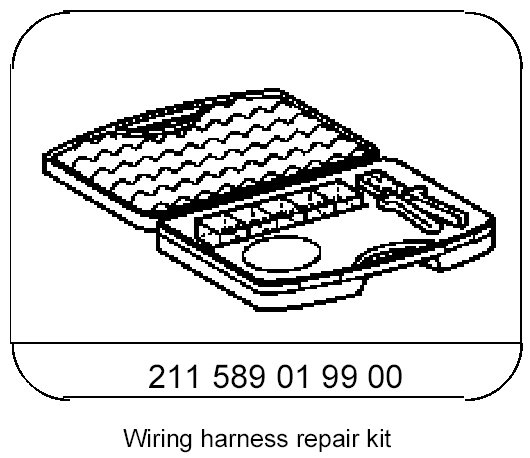

Special Tools:

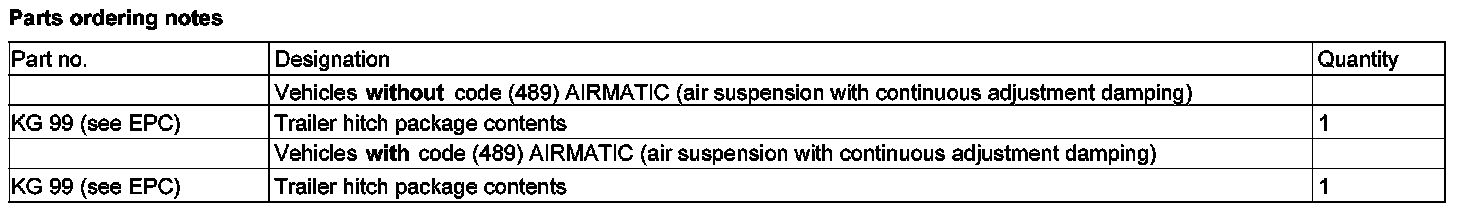

Parts Ordering Notes:
