Electrical Diagrams

Wiring Diagram, Panic Alarm System (PAS [GAS]) Control Unit pe82.25-p-2101dfa
- with CODE (Z04) Light armoring
- Control unit N26/8

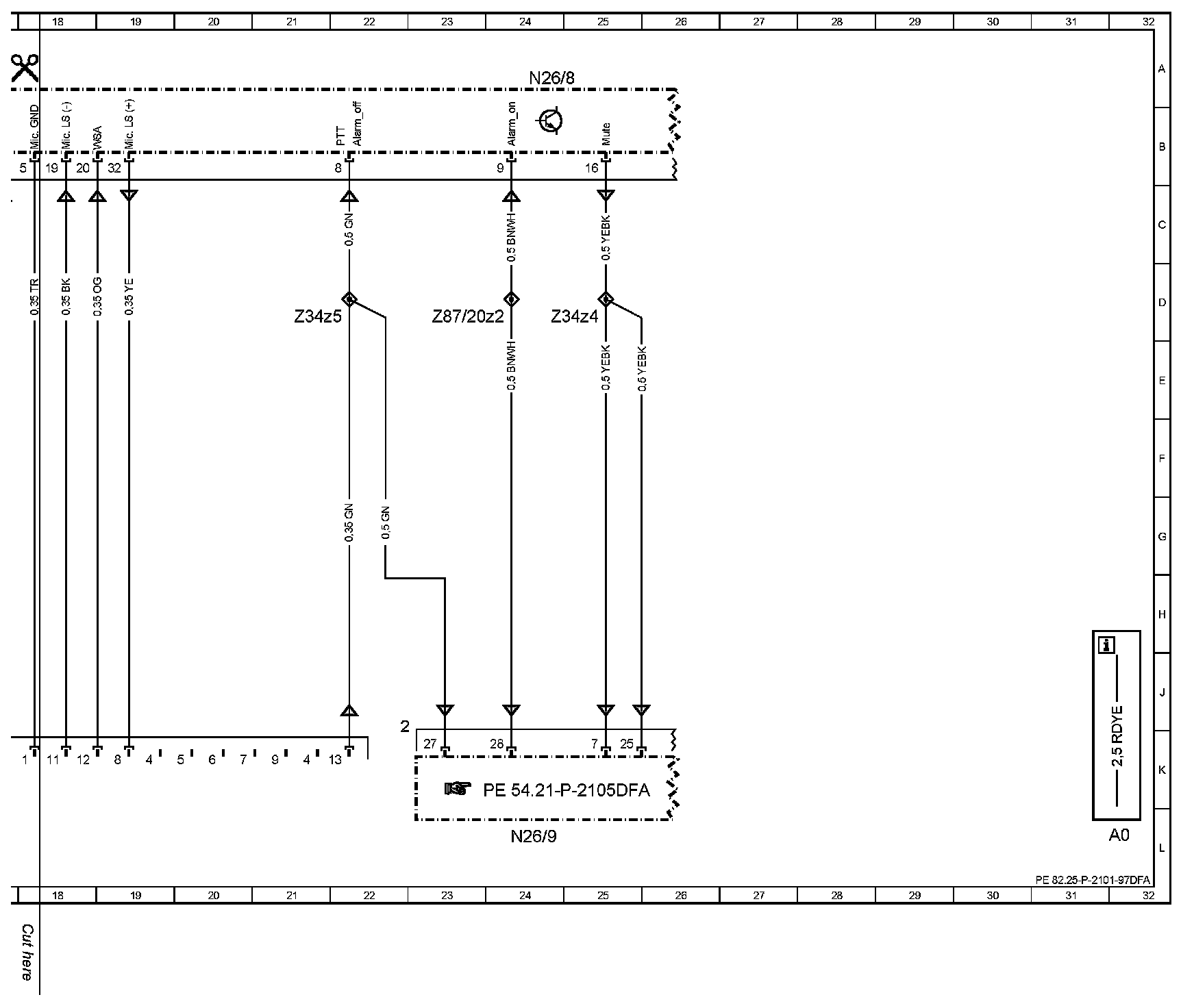

Wiring Diagram (Part 1):

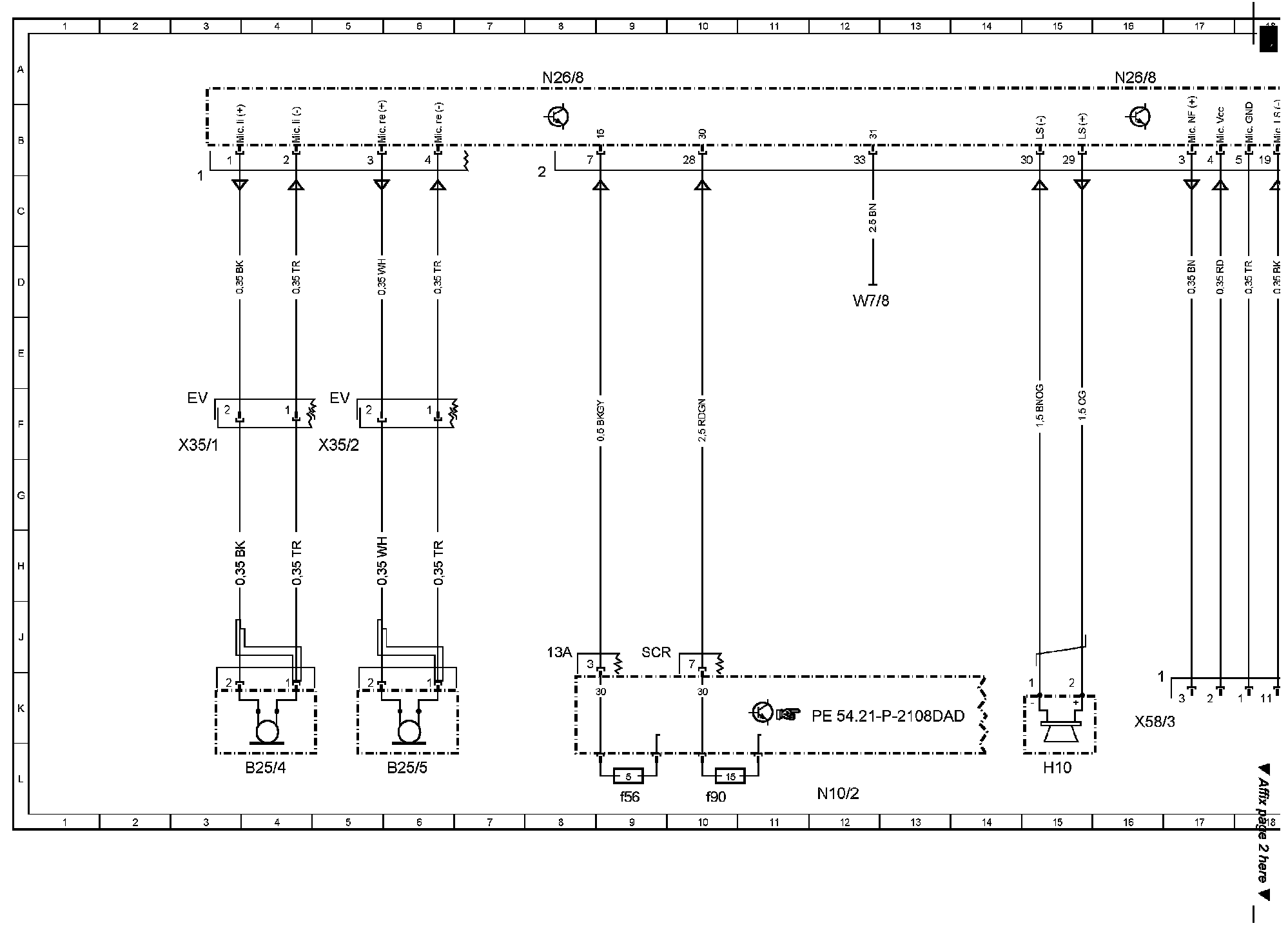

Wiring Diagram (Part 2):

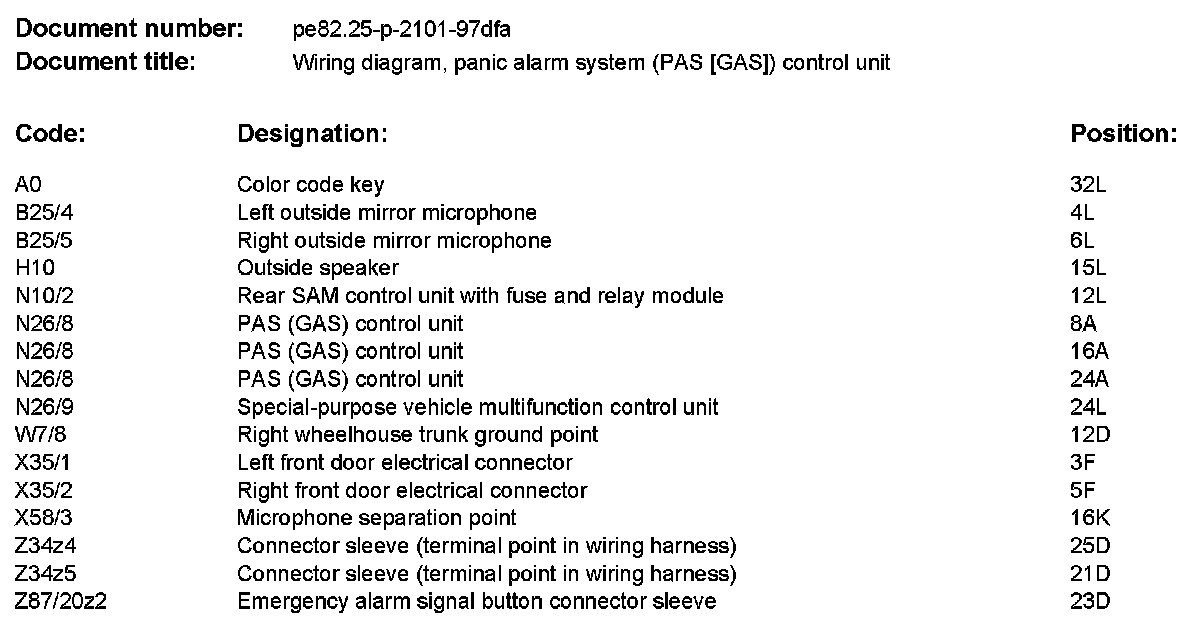

Component Description/Coordinates, A0 To Z87/20z2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
