Power Distribution Relay
>>
Locations
>>
Circuit 50 Relay, Starter
Circuit 50 Relay, Starter
Circuit 50 Relay, Starter

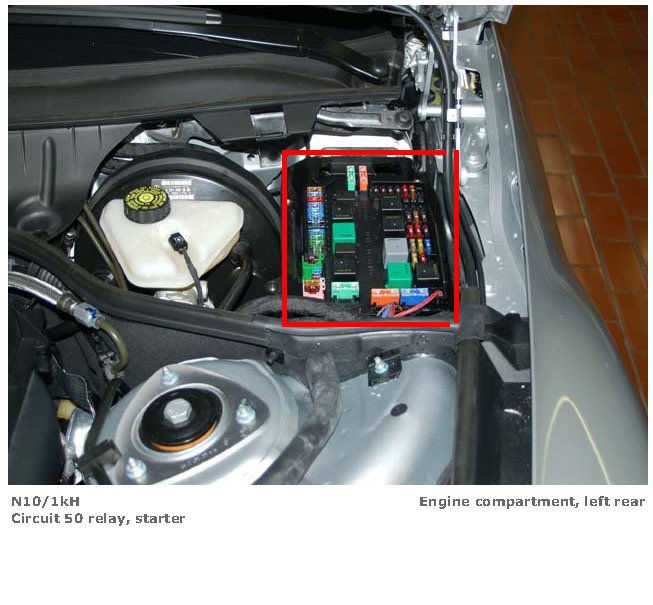

Circuit 50 Relay, Starter (View 1):

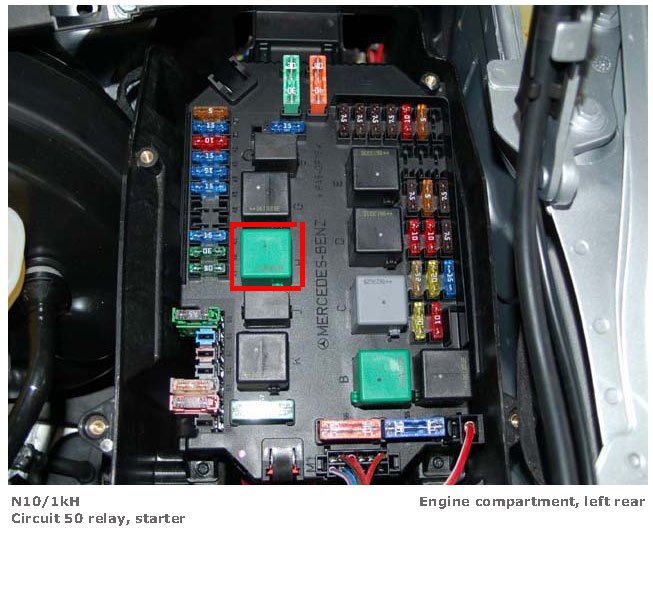

Circuit 50 Relay, Starter (View 2):

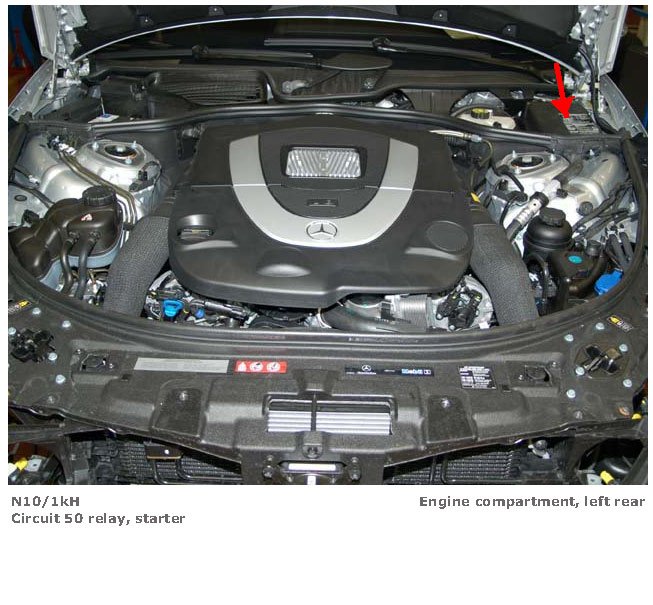

Circuit 50 Relay, Starter (View 3):
