Headlamp Control Module: Service and Repair

AR82.10-P-4632SY Remove/Install Xenon Headlamp Control Unit
- except CODE (487) Active Body Control (ABC)
- with CODE (614) Bi-xenon headlamp unit
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination

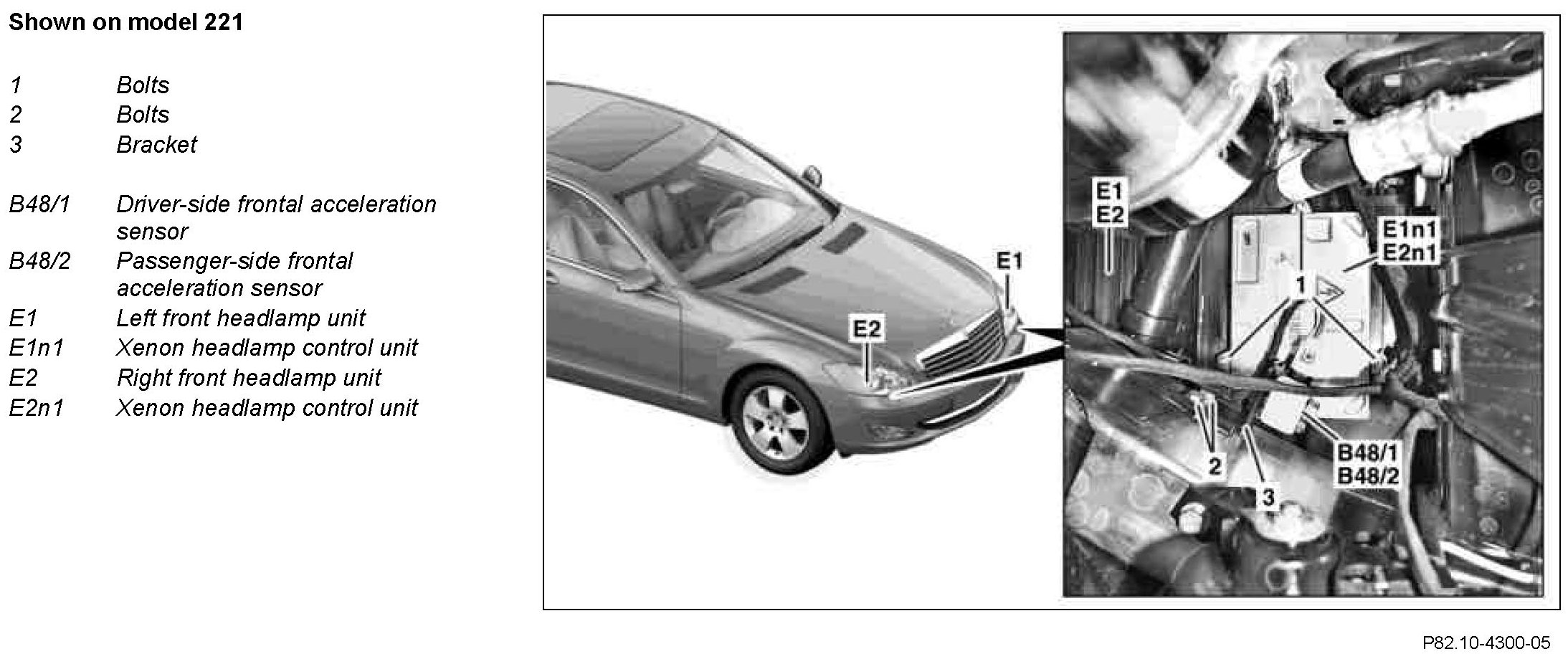

Component Identification:

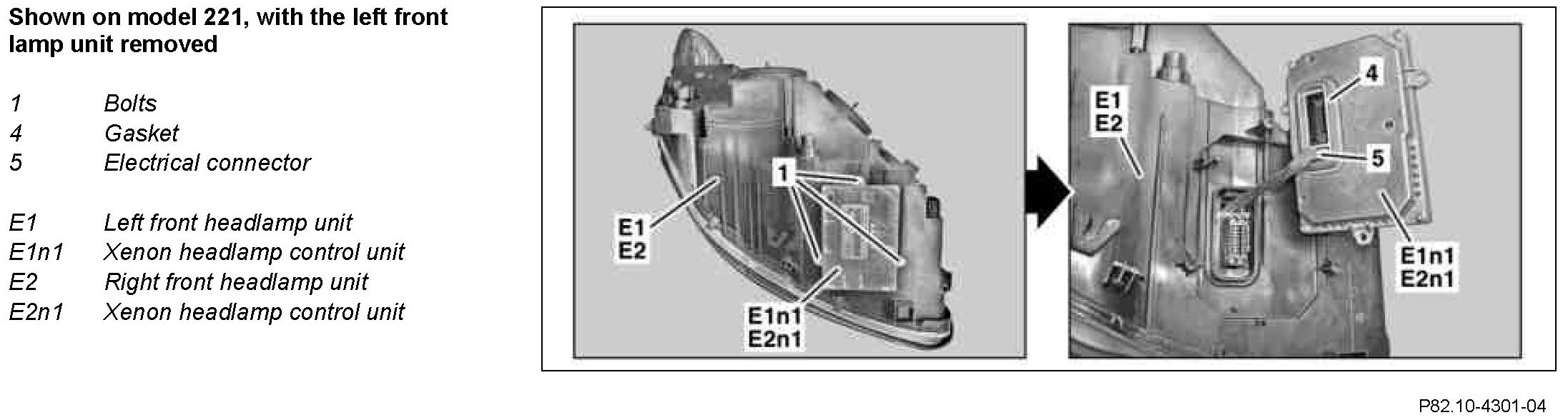

Component Identification:

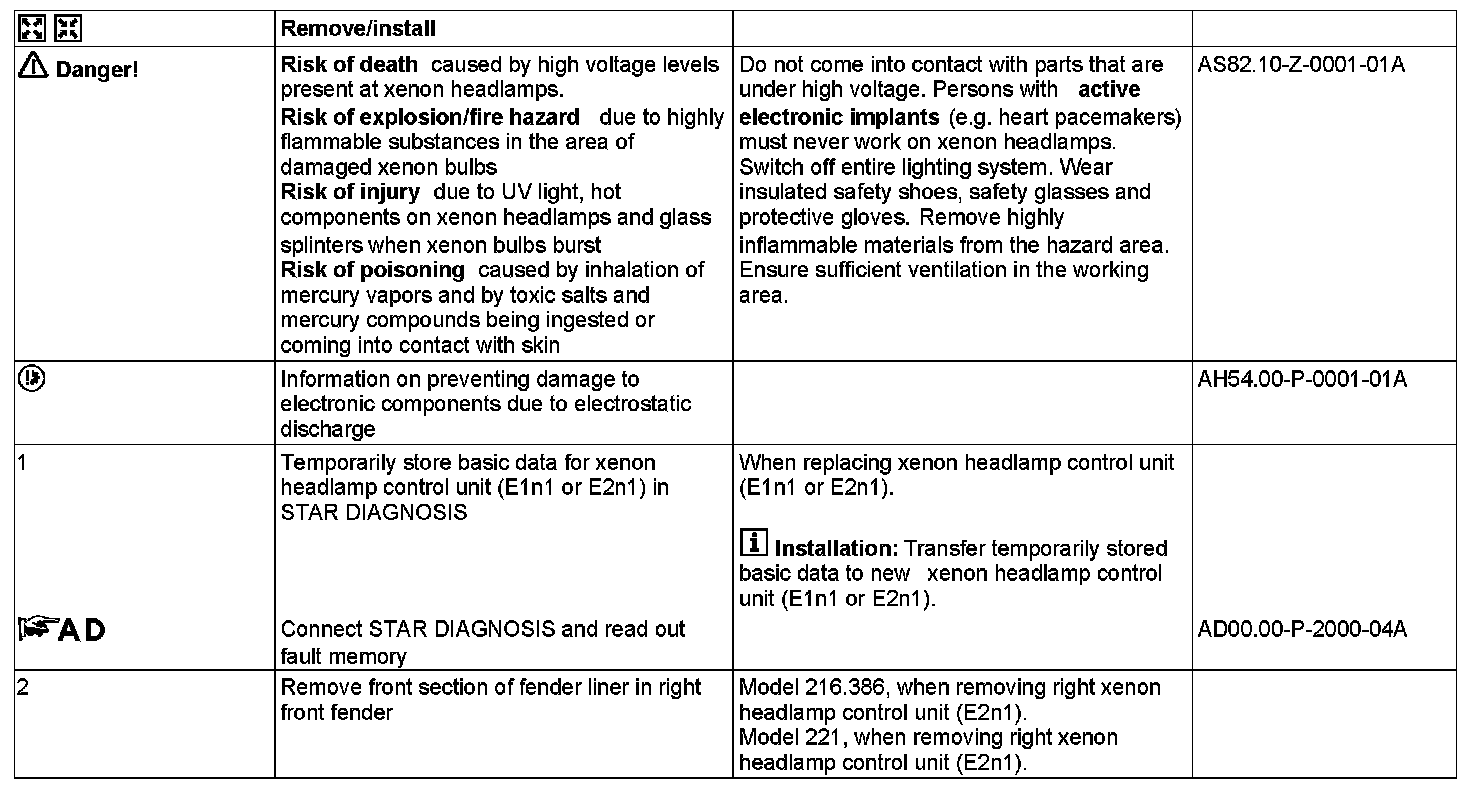

Steps 1 - 2:

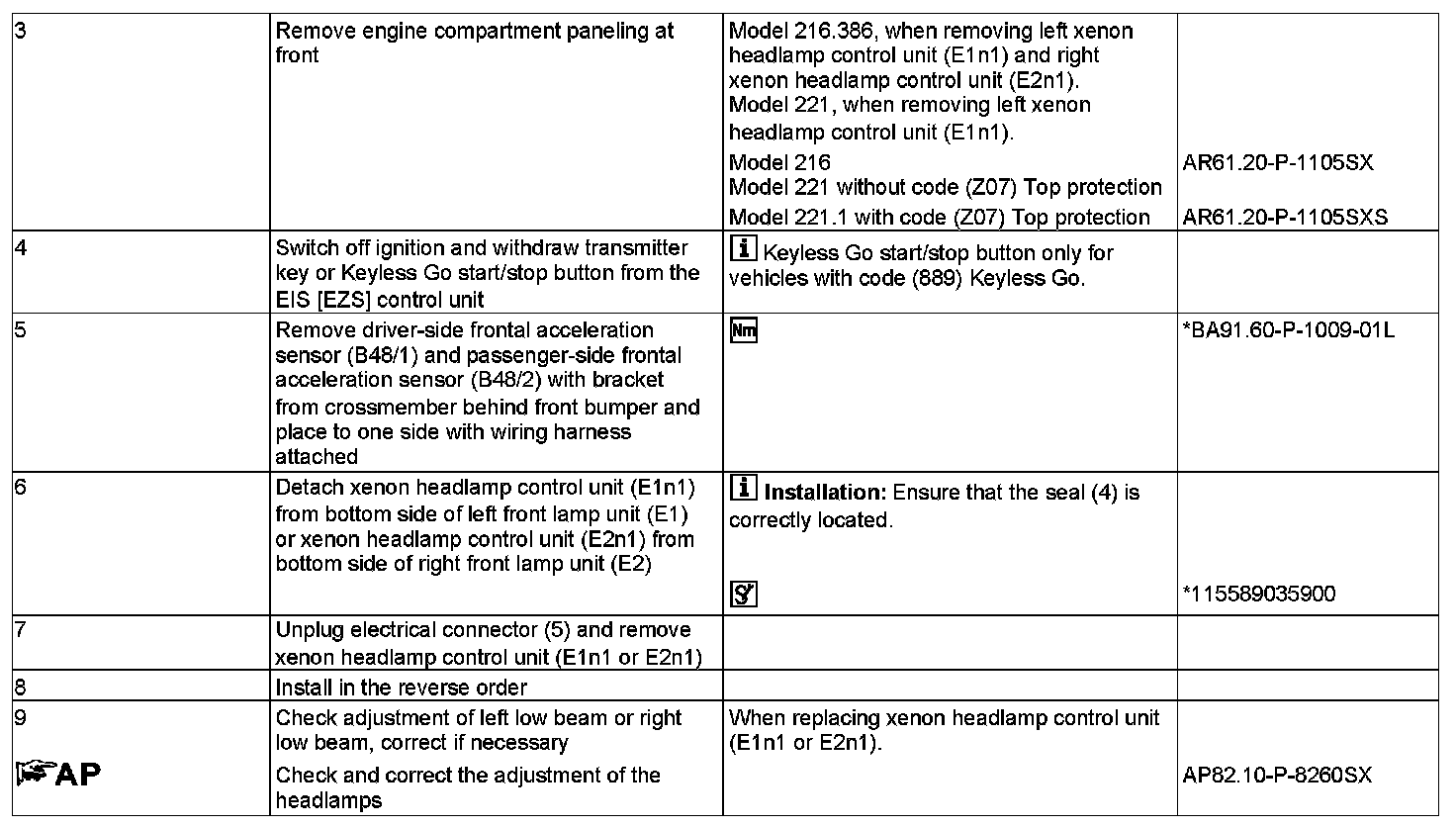

Steps 3 - 9:

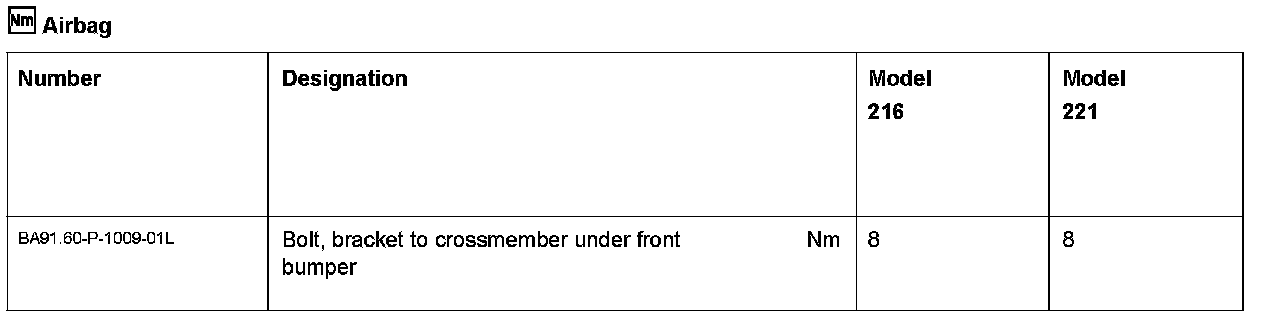

Airbag:

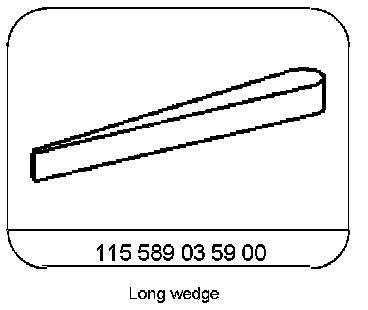

Special Tools:
