AR09.20-P-1990SX Remove, Install Tumble Flap And Resonance Flap Switchover Valve To Intake Manifold



AR09.20-P-1990SX Remove, Install Tumble Flap And Resonance Flap Switchover Valve To Intake Manifold

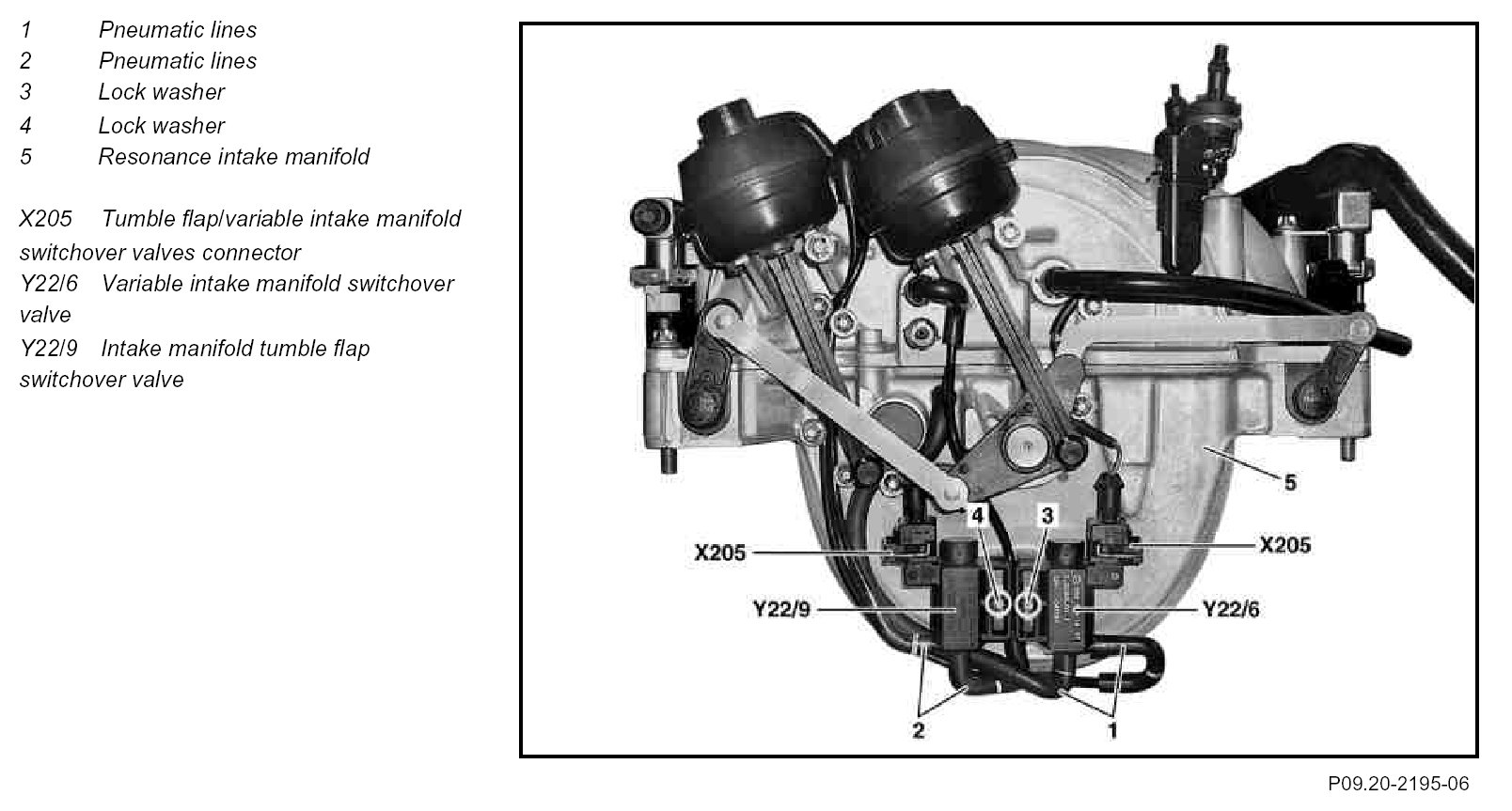

Component Identification:

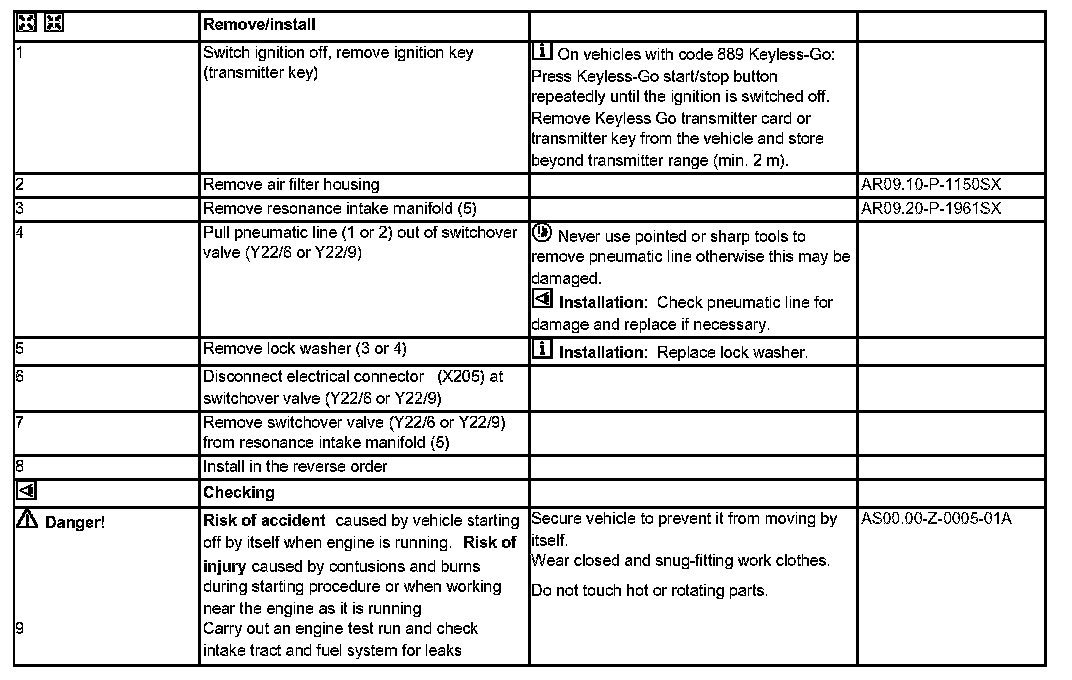

Steps 1 - 9:
