Knock Sensor
>>
Service and Repair
Knock Sensor: Service and Repair
AR15.12-P-2184SX Remove/install
knock sensors
Component Identification:

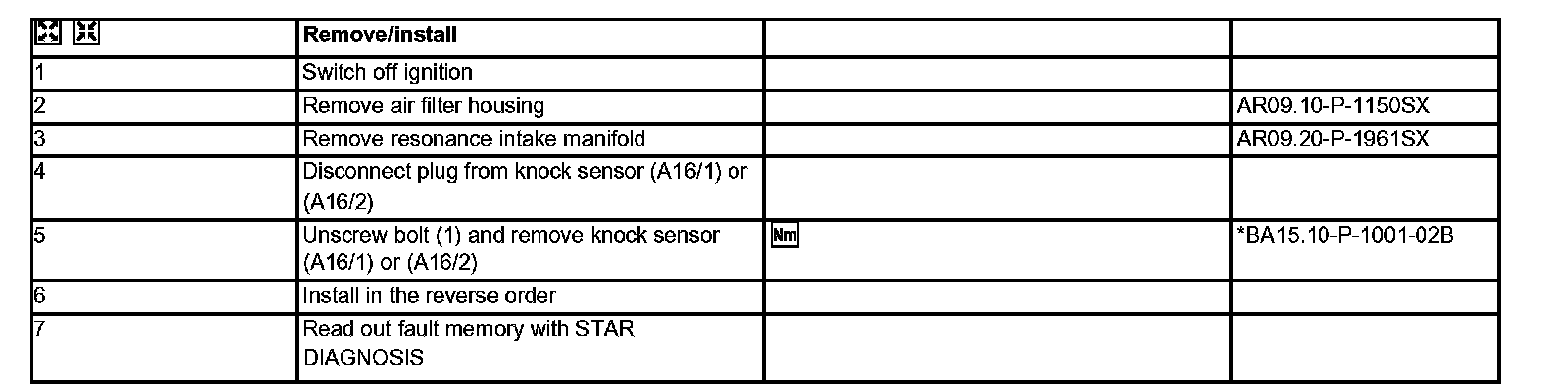

Remove/install Steps 1-7:

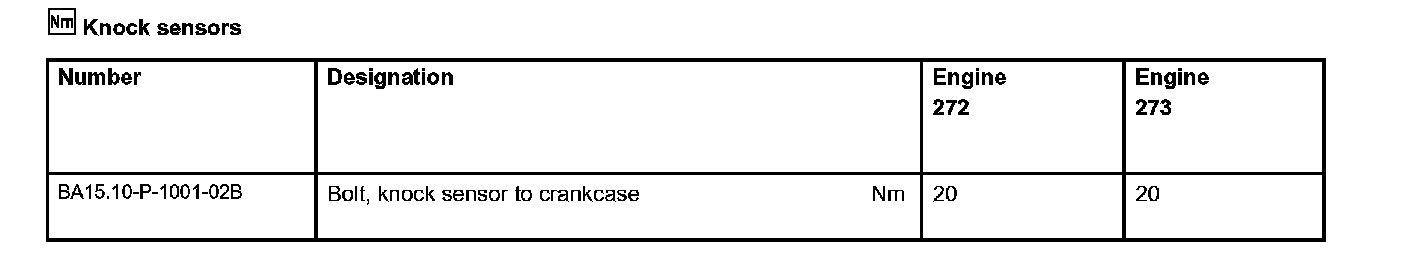

Knock sensors:
