AR01.40-P-8000SX Remove/Install Timing Case Cover

AR01.40-P-8000SX Remove/Install Timing Case Cover
ENGINES 272.946 /965 /974 /975 in MODEL 221
ENGINES 273.922 /924 /961 /968 in MODEL 221
ENGINES 273.961 /968 in MODEL 216

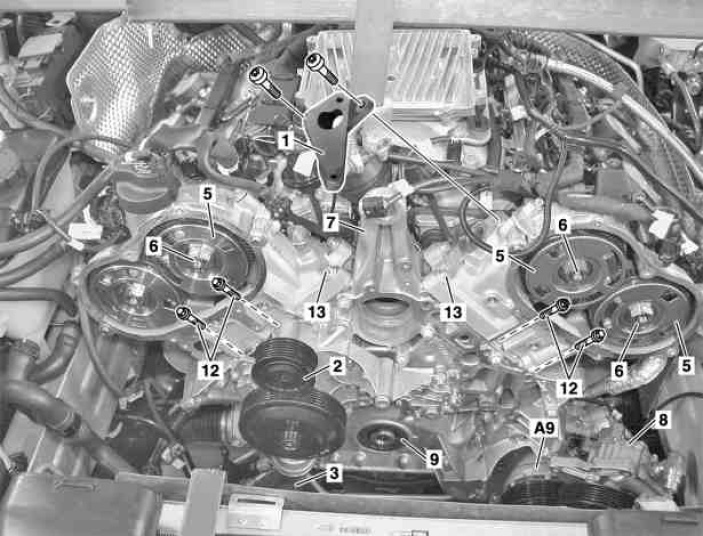

Shown on engine 272.946

1 Intermediate flange
2 Pulley
3 Coolant hose
5 Segmental disks
6 Central valves
7 Timing case cover
8 Power steering pump
9 Crankshaft radial sealing ring
12 Screw/bolts
13 Screw/bolts

A9 Refrigerant compressor





























112 589 00 25 00
Squeeze gun





001 589 65 09 00
Wrench socket
