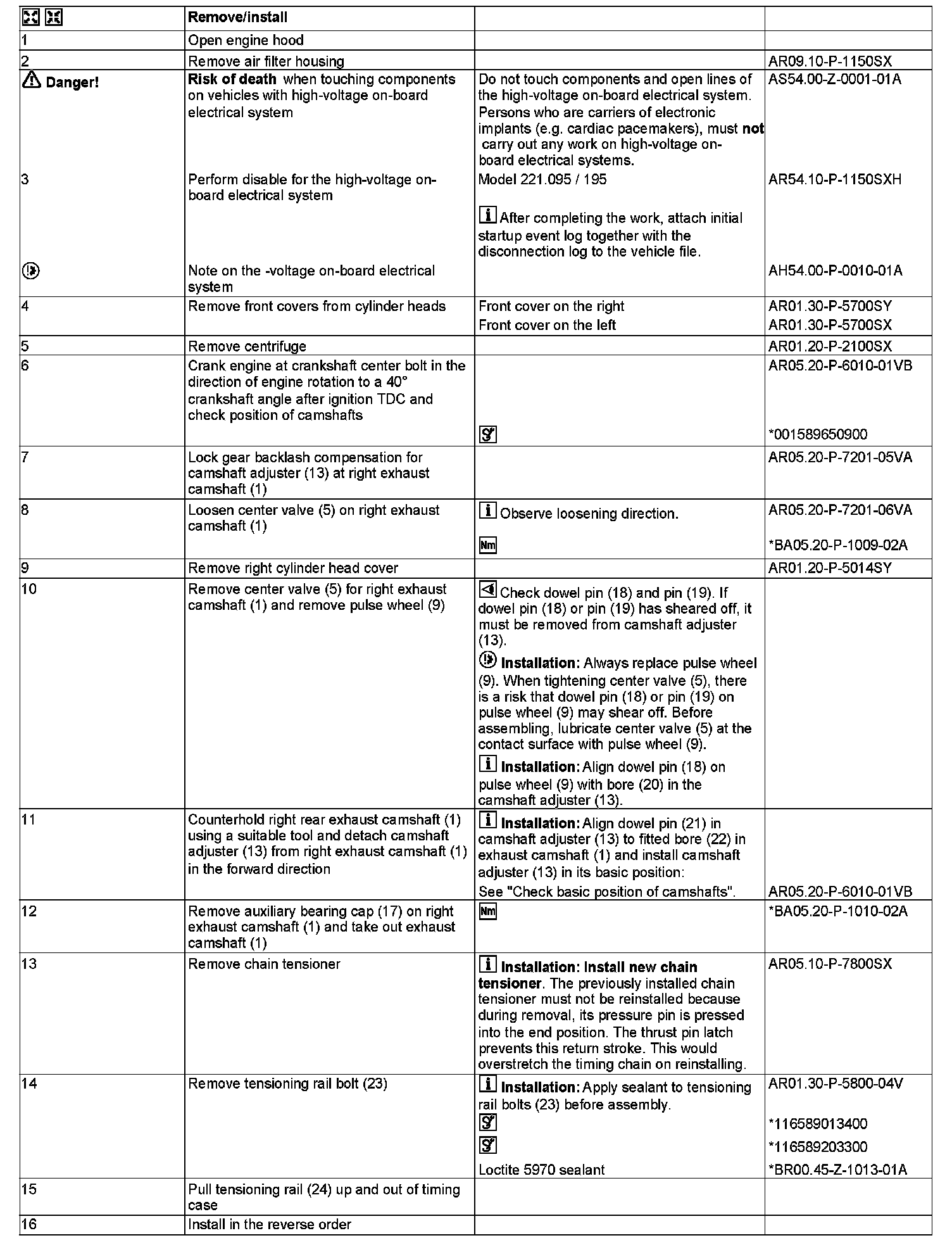

AR05.10-P-8127SX Remove/Install Tensioning Rail

AR05.10-P-8127SX Remove/Install Tensioning Rail
ENGINES 273 in MODEL 216
ENGINES 272, 273 in MODEL 221





Shown on engine 273

1 Exhaust camshaft
5 Center valve of exhaust camshaft
9 Pulse wheel of exhaust camshaft
13 Camshaft adjuster of exhaust camshaft
15 Camshaft adjuster for intake camshaft
17 Auxiliary bearing cap of exhaust camshaft

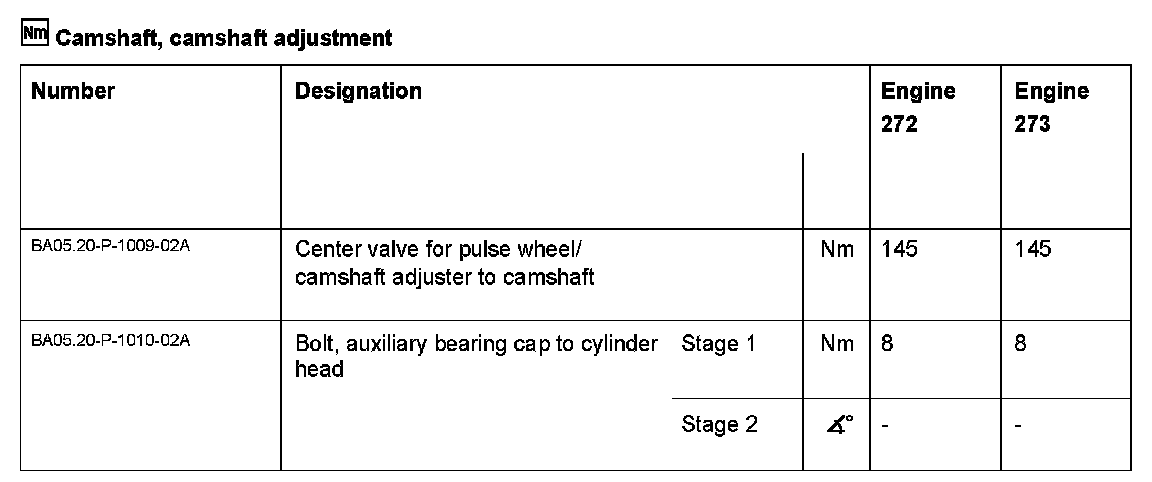

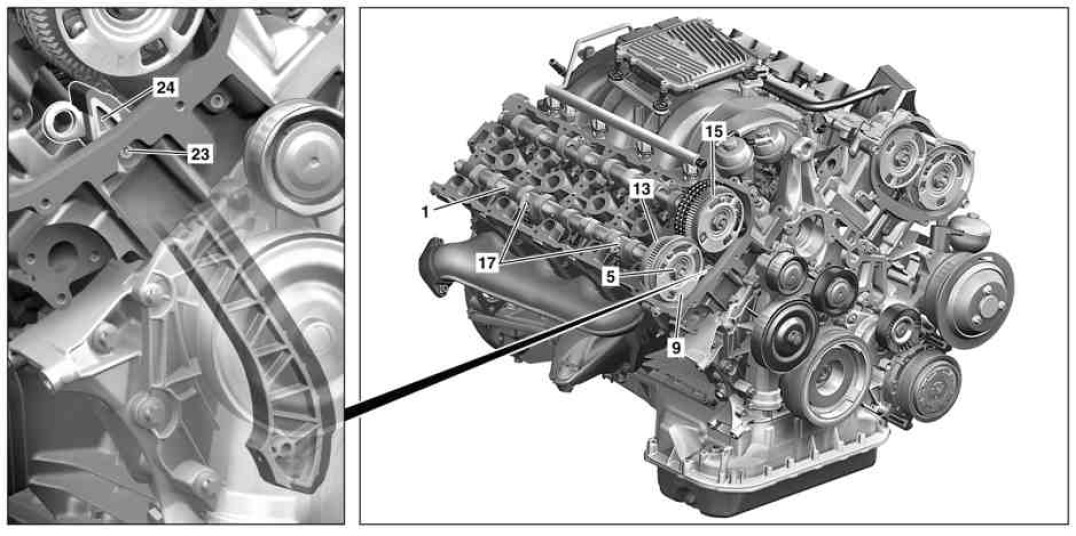

23 Tensioning rail bolts
24 Tensioning rail





13 Camshaft adjuster of exhaust camshaft
15 Camshaft adjuster for intake camshaft

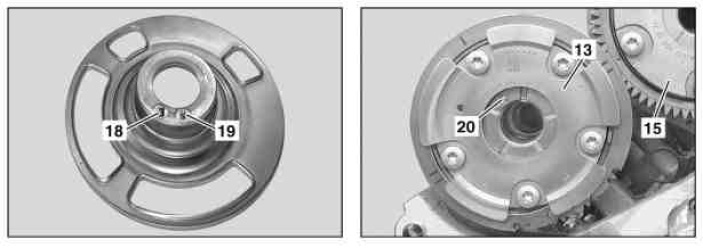

18 Dowel pin
19 Pin
20 Bore in camshaft adjuster

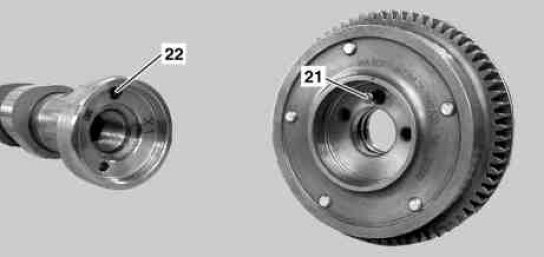

21 Dowel pin in camshaft adjuster
22 Fitted bore on exhaust camshaft











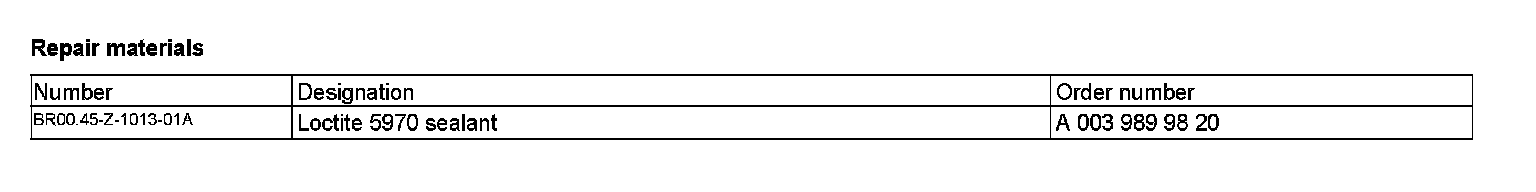

001 589 65 09 00
Wrench socket





116 589 20 33 00
Impact extractor





116 589 01 34 00
Threaded stud
