Removal and Replacement

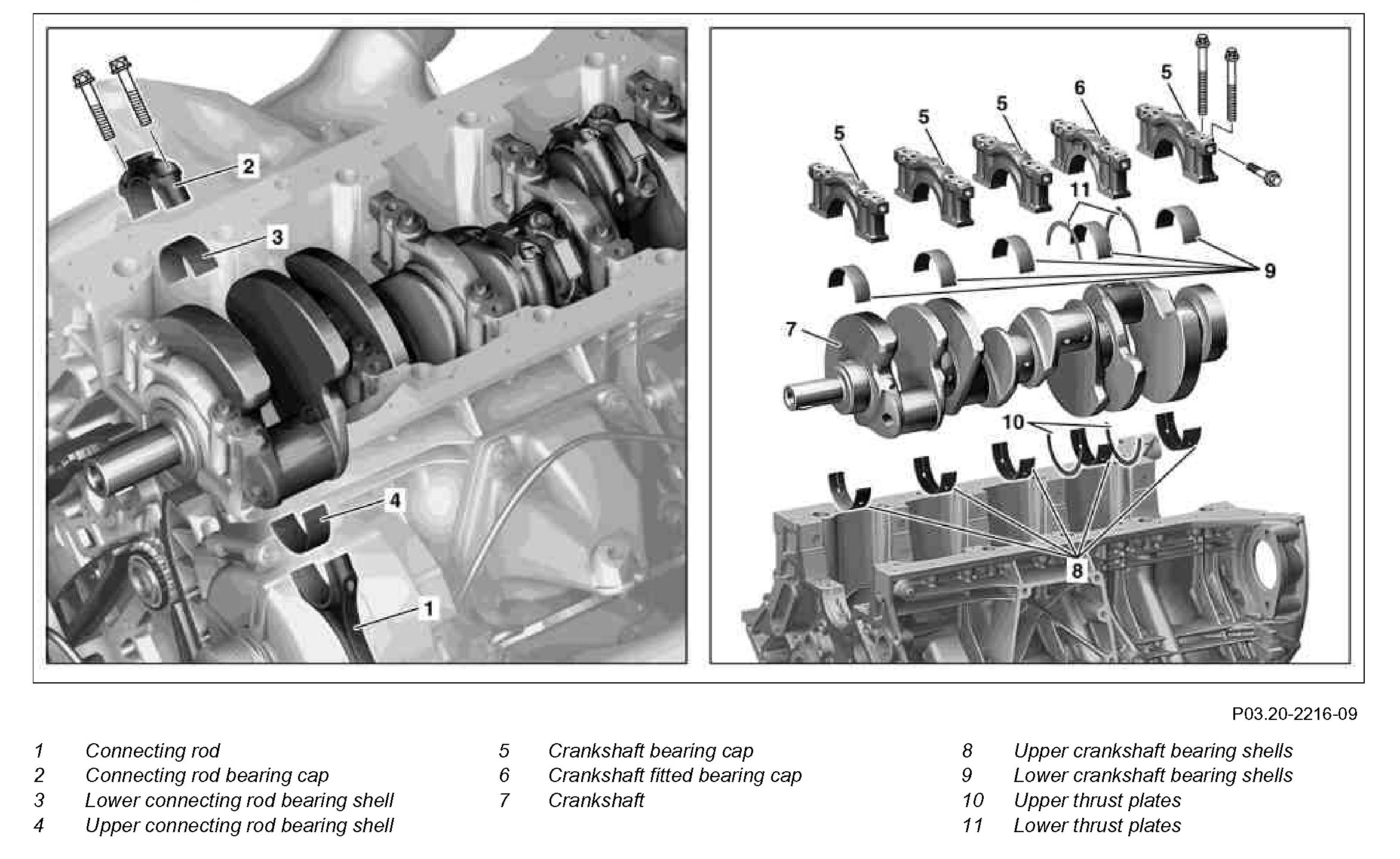

Component Identification:

Component Identification:

Modification notes:

Removal Step 1:

Steps 1 (Continued)-29:

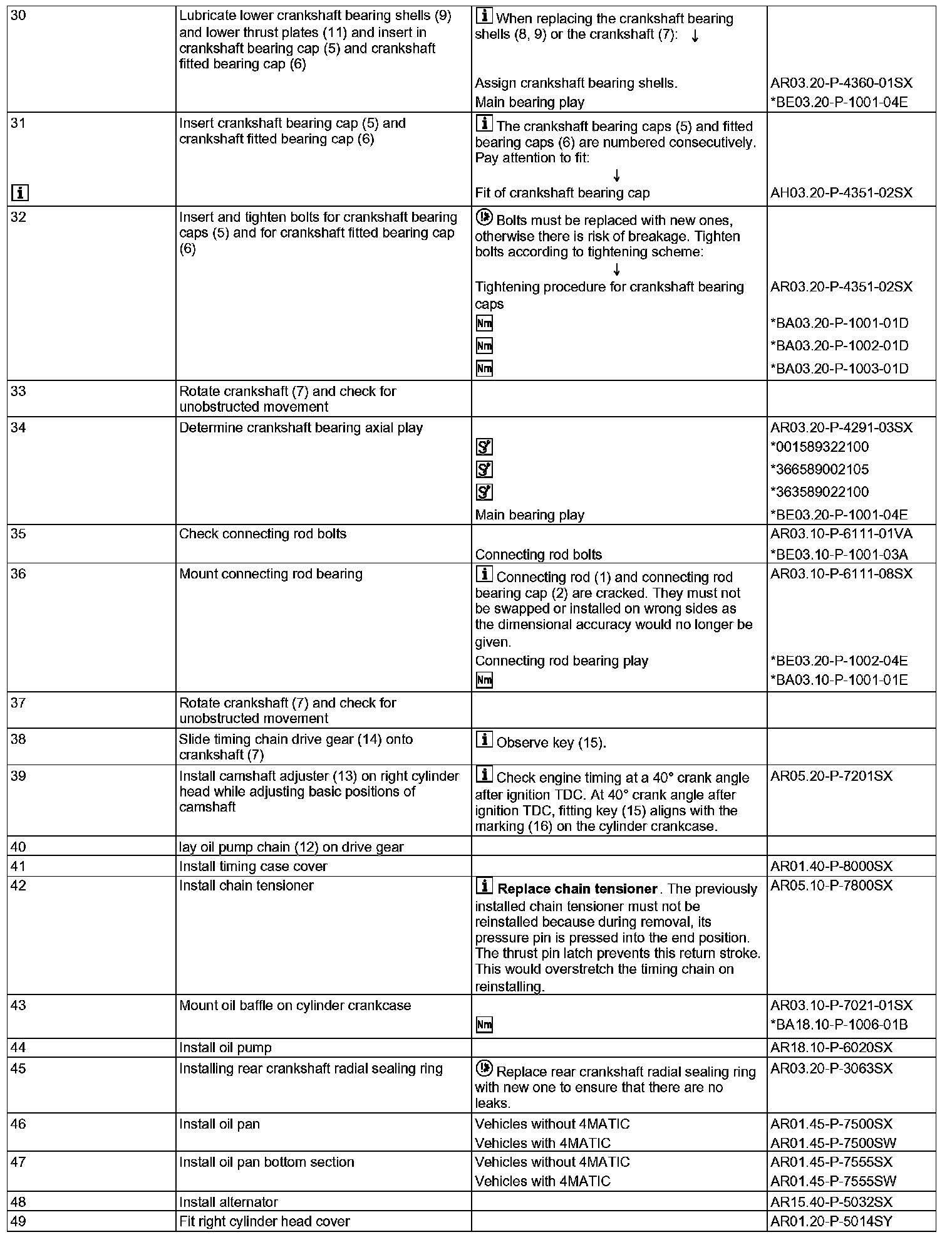

Steps 30-49:

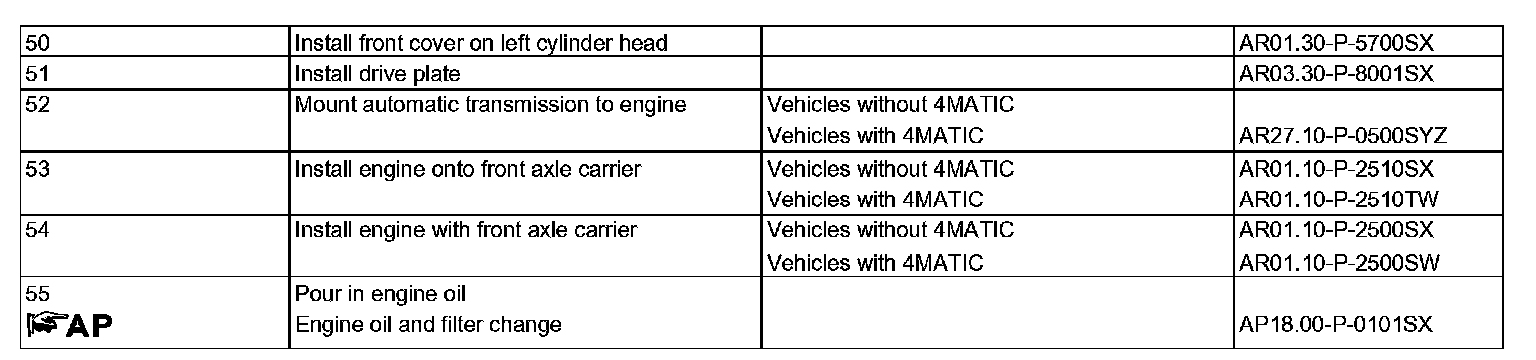

Steps 50-55:

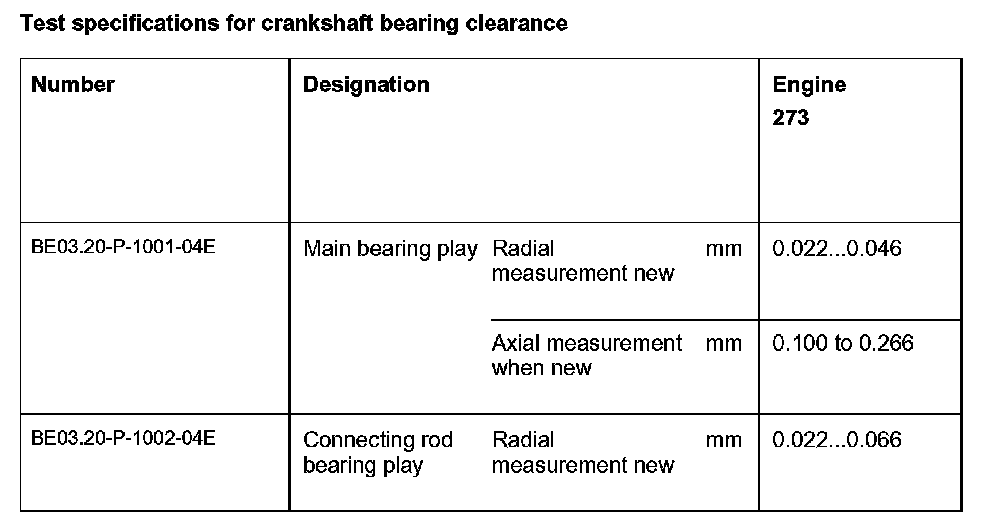

Test specifications for crankshaft bearing clearance:

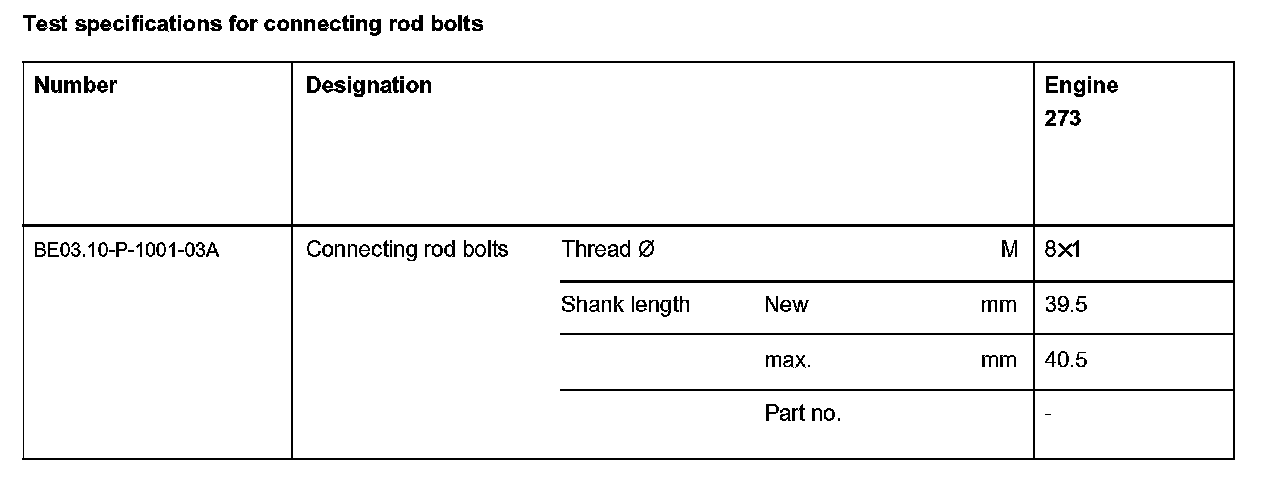

Test specifications for connecting rod bolts:

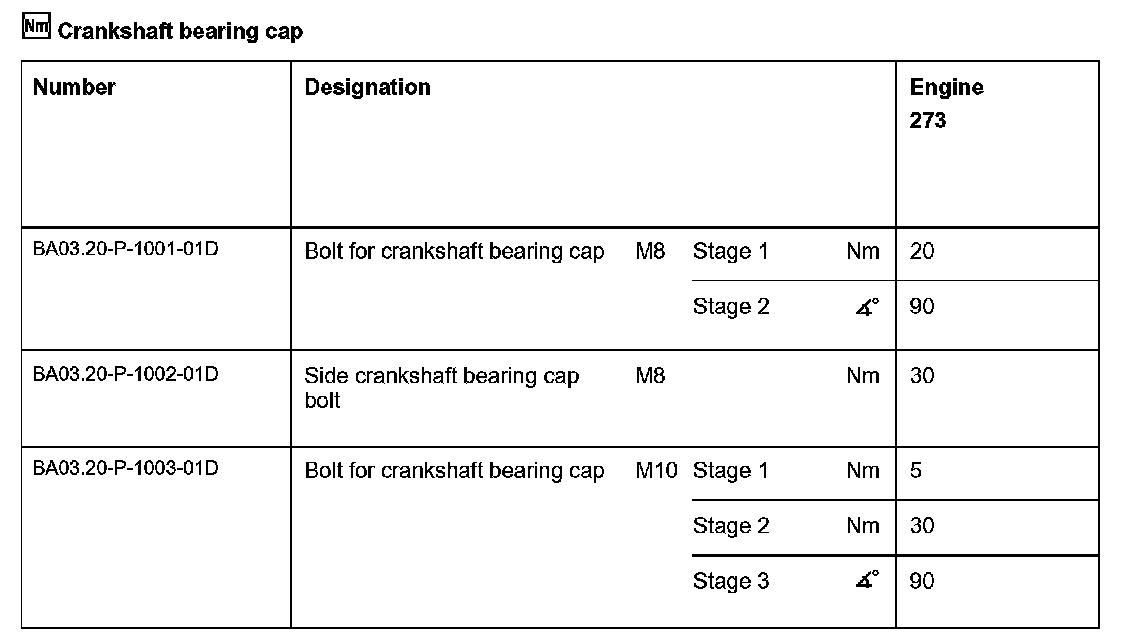

Crankshaft bearing cap:

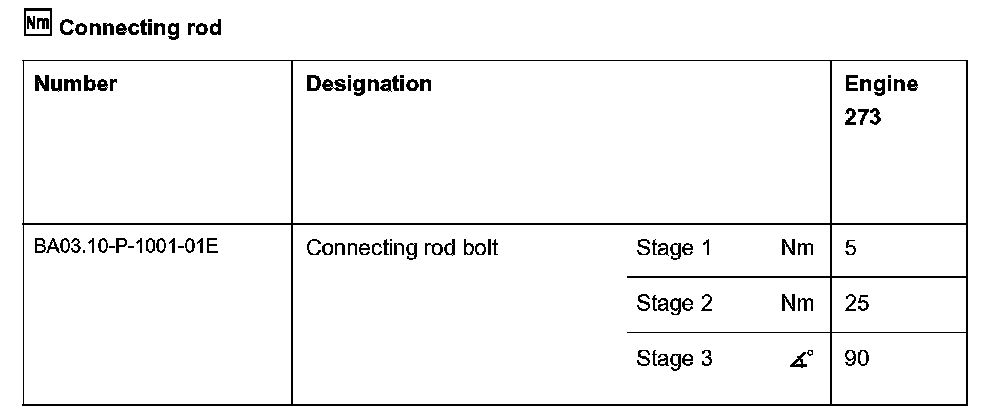

Connecting rod:

Oil pump:

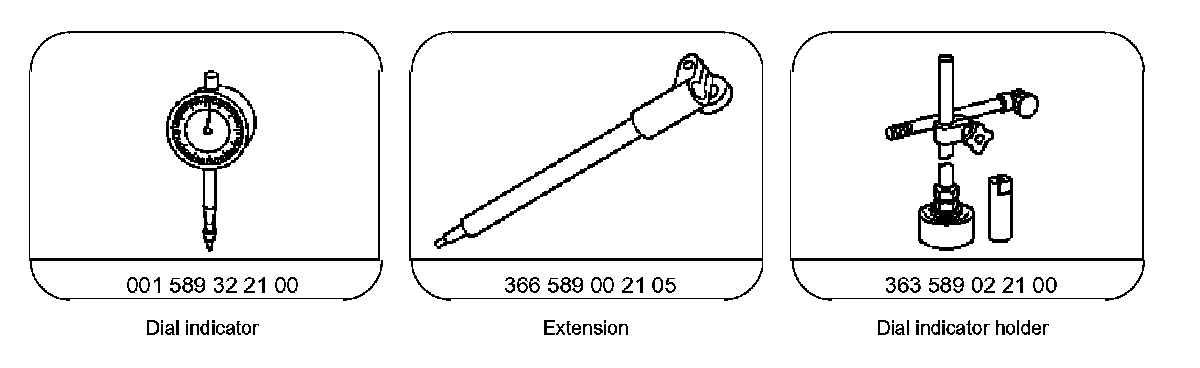

Special Tools:
