PE82.60-P-2059CAB Electrical Function Diagram For Volume/Sound Settings, Function

Electrical Function Diagram For Volume/Sound Settings, Function PE82.60-P-2059CAB
- with CODE (529) HIGH Class Japan
- as of model year 09

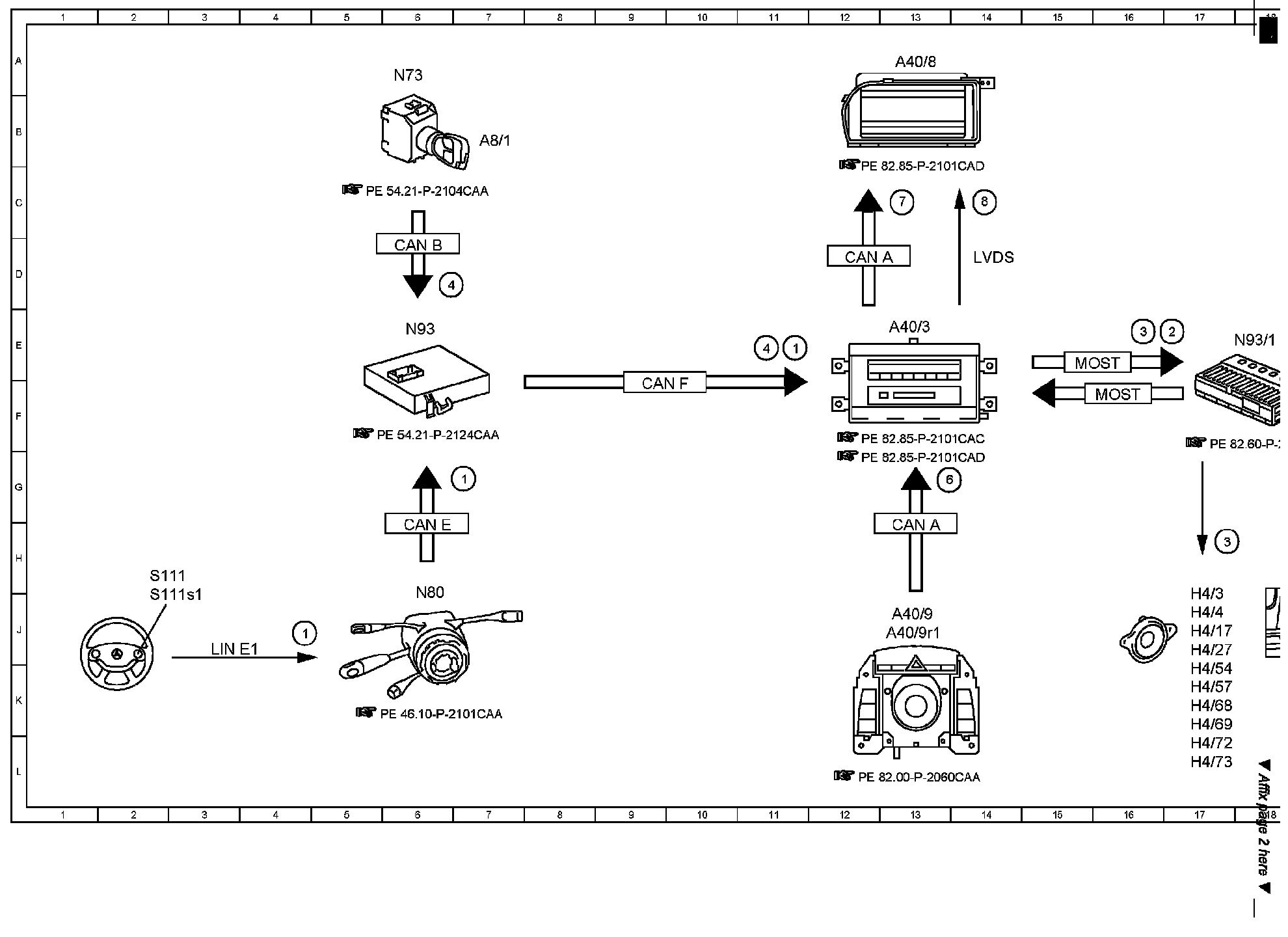

Function Diagram (Part 1):

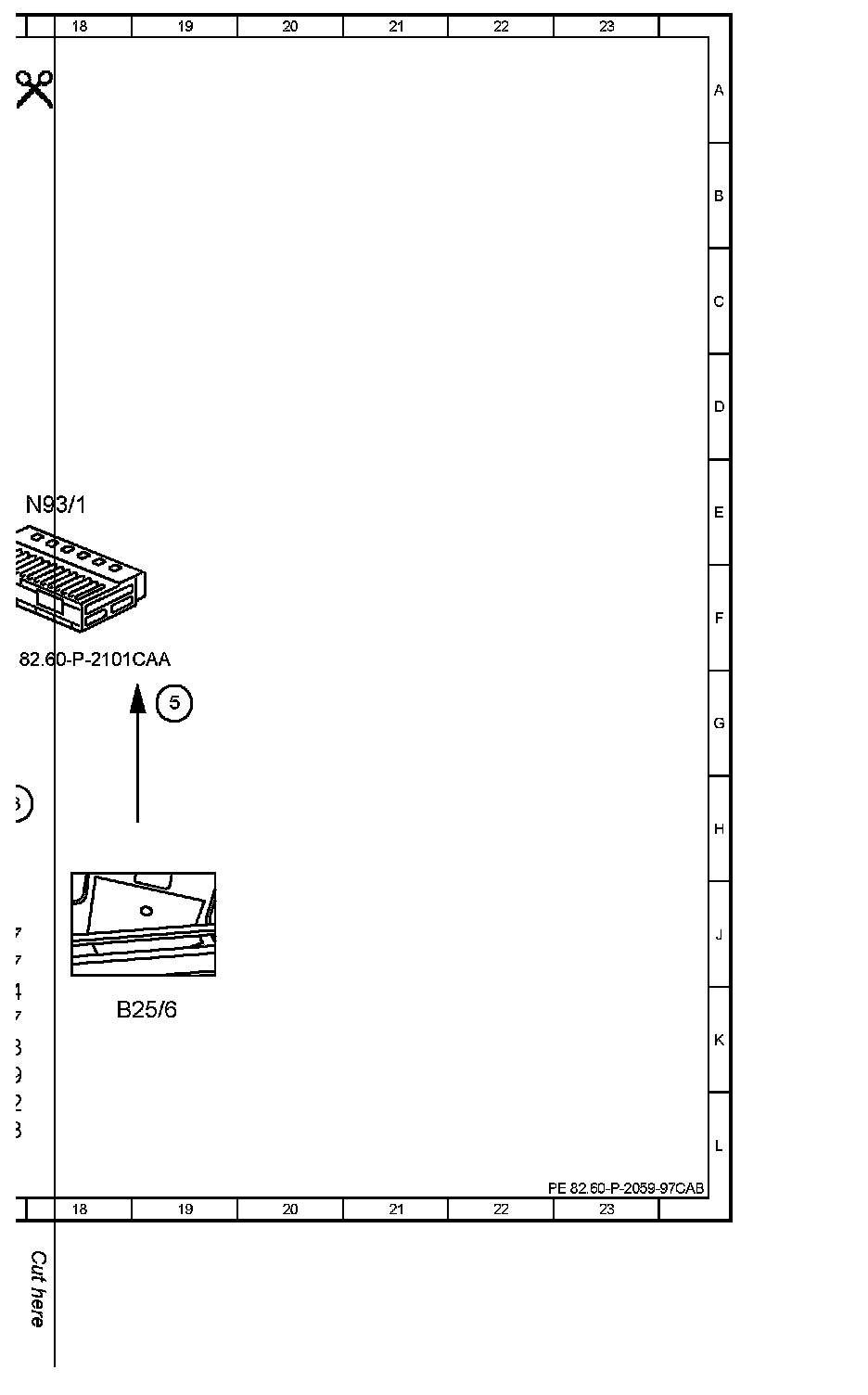

Function Diagram (Part 2):

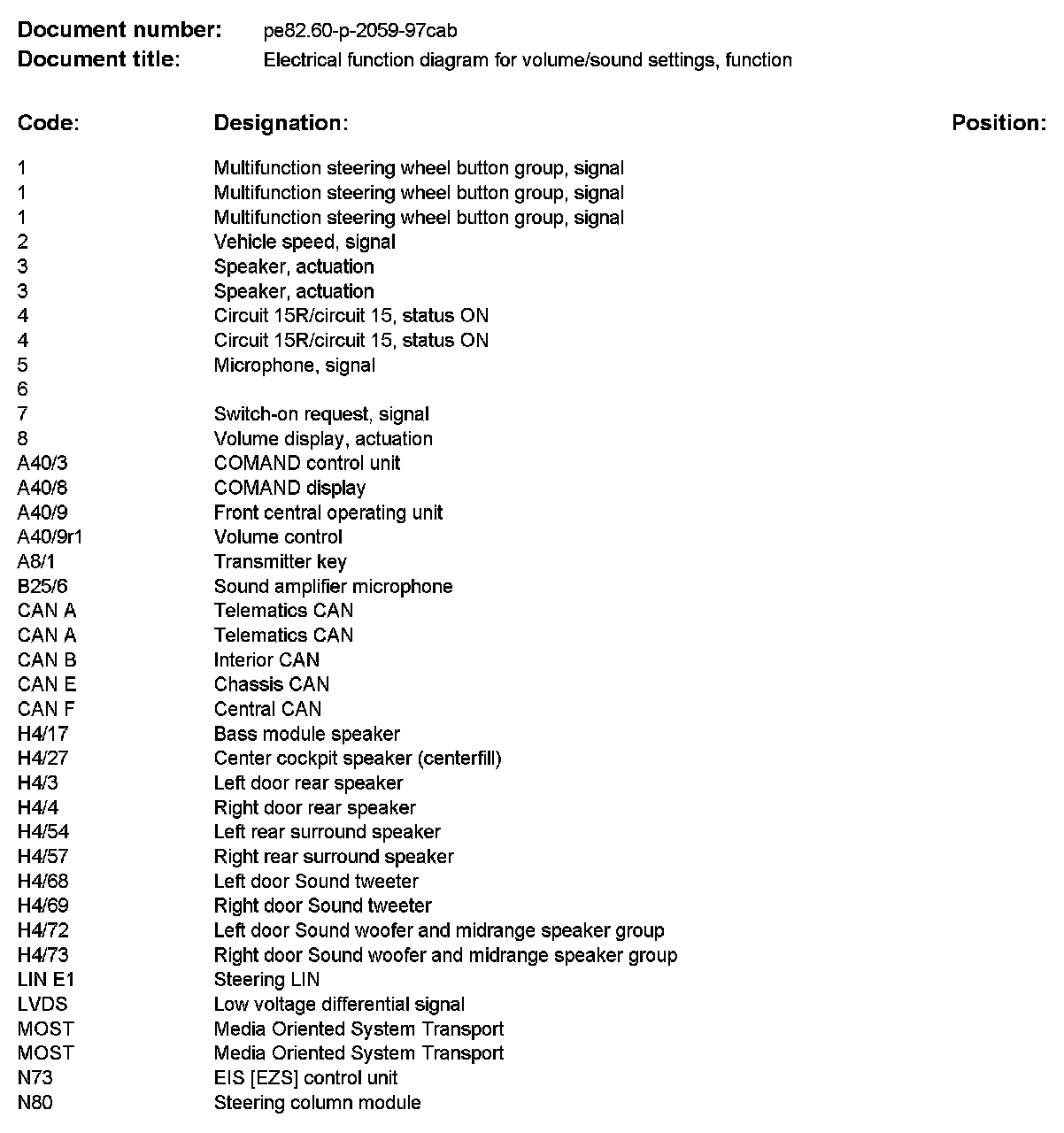

Component Description/Coordinates, 1 To N80:

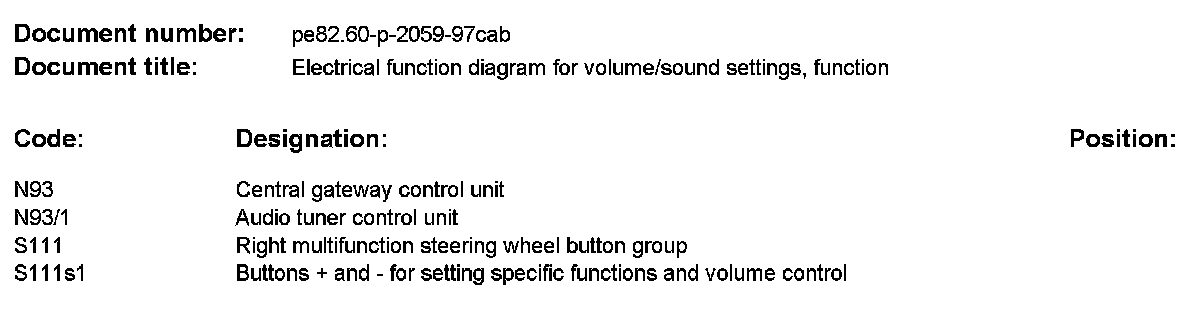

Component Description/Coordinates, N93 To S111s1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
