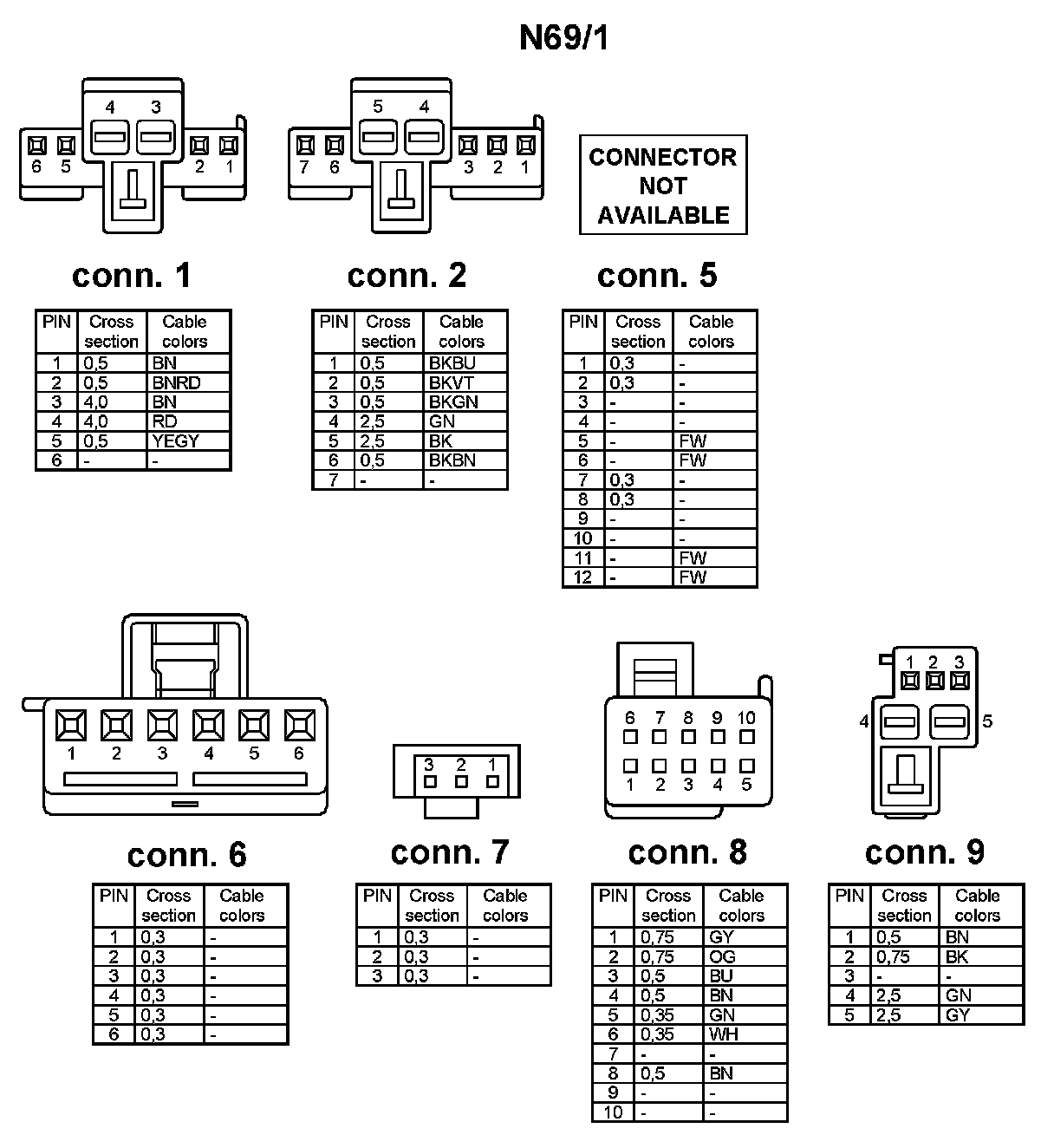

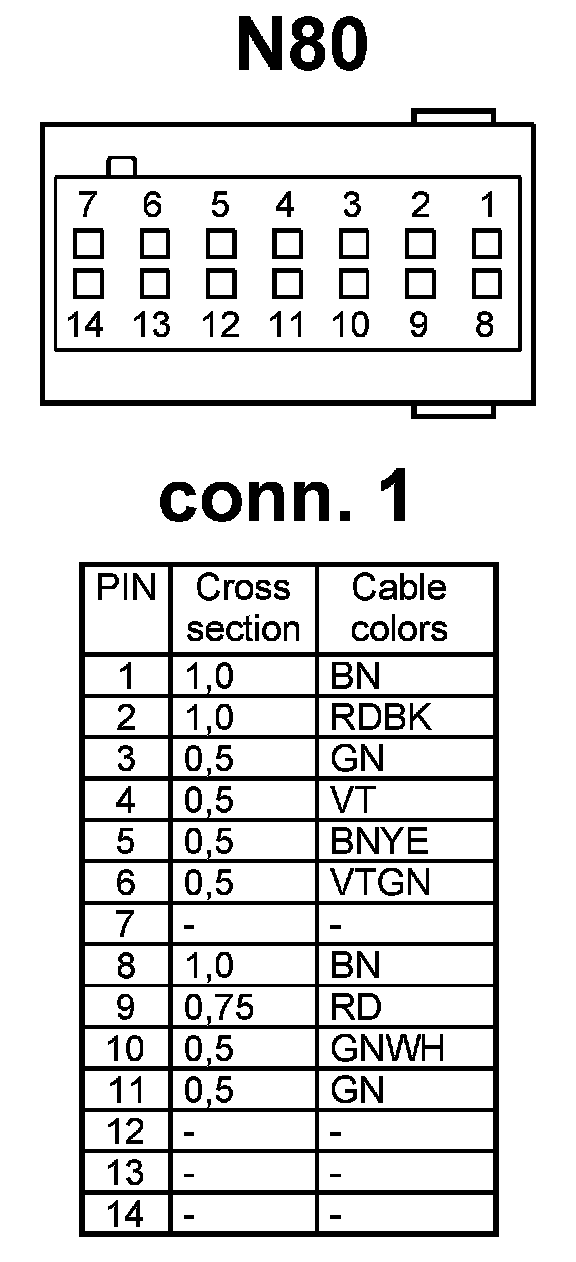

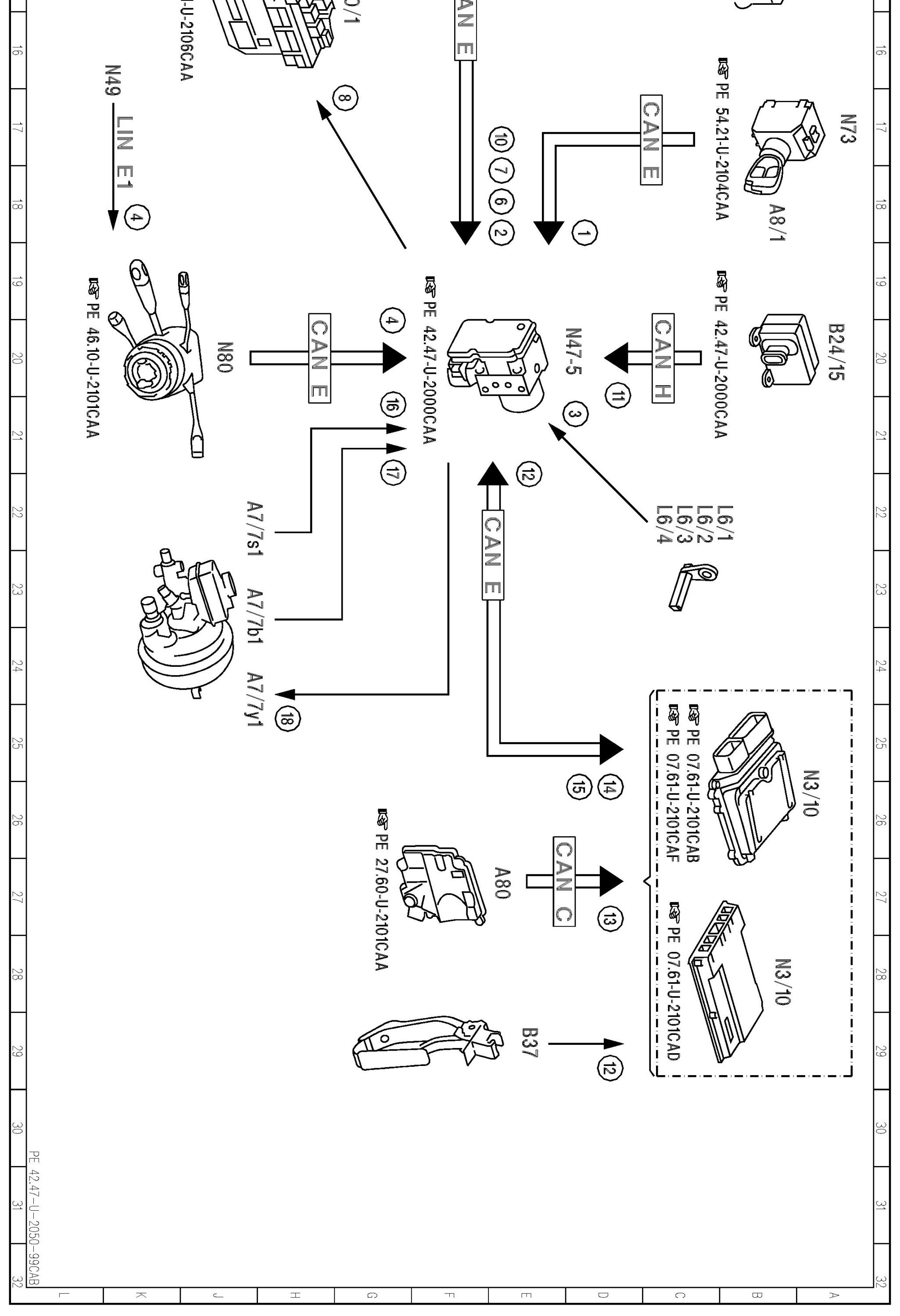

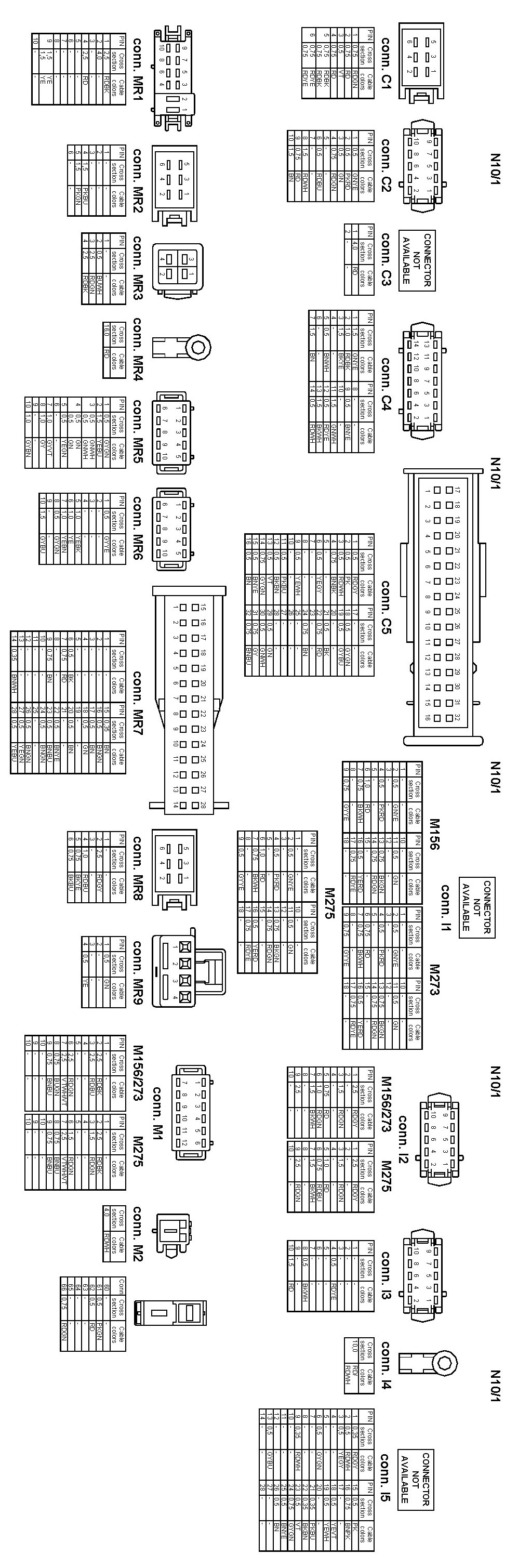

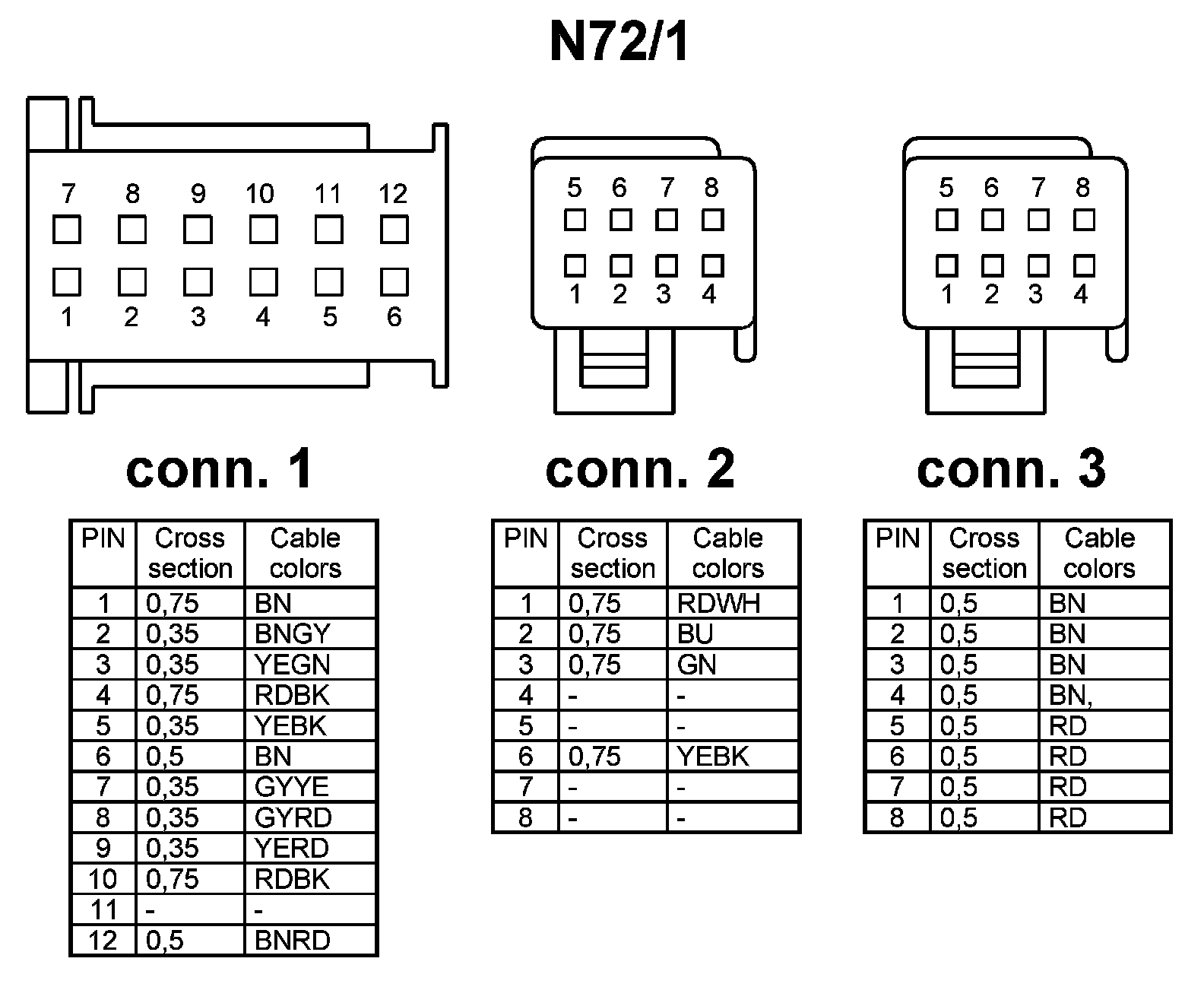

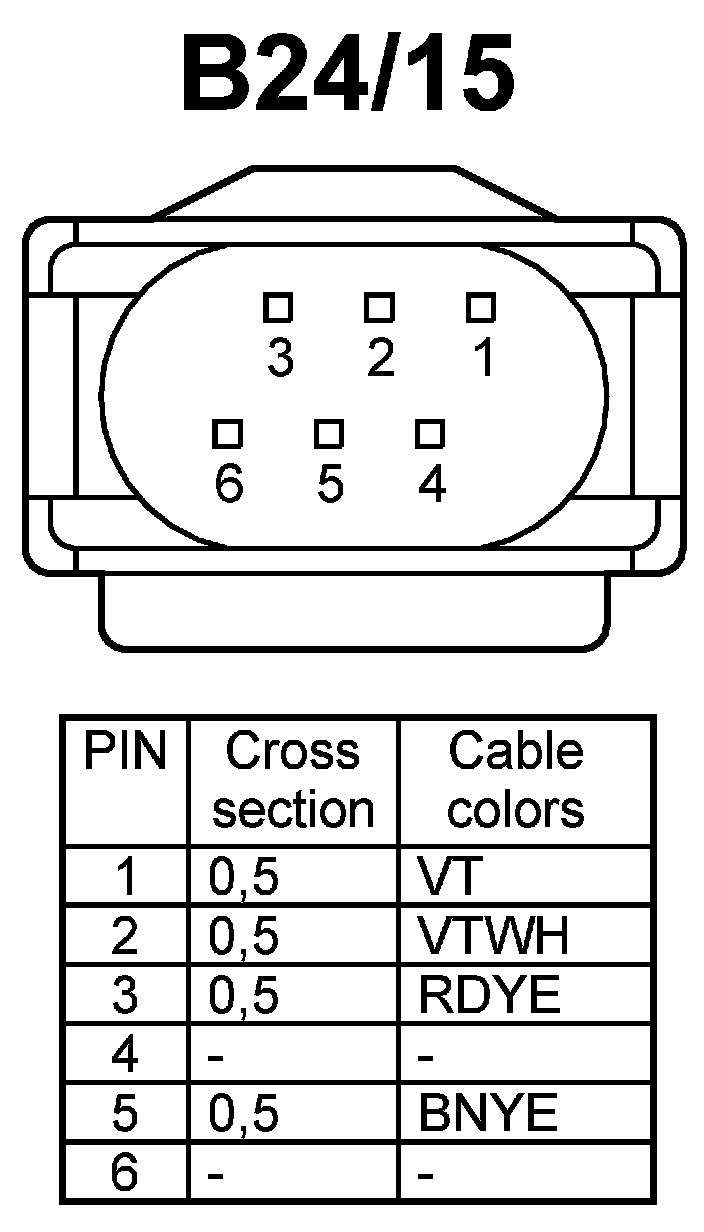

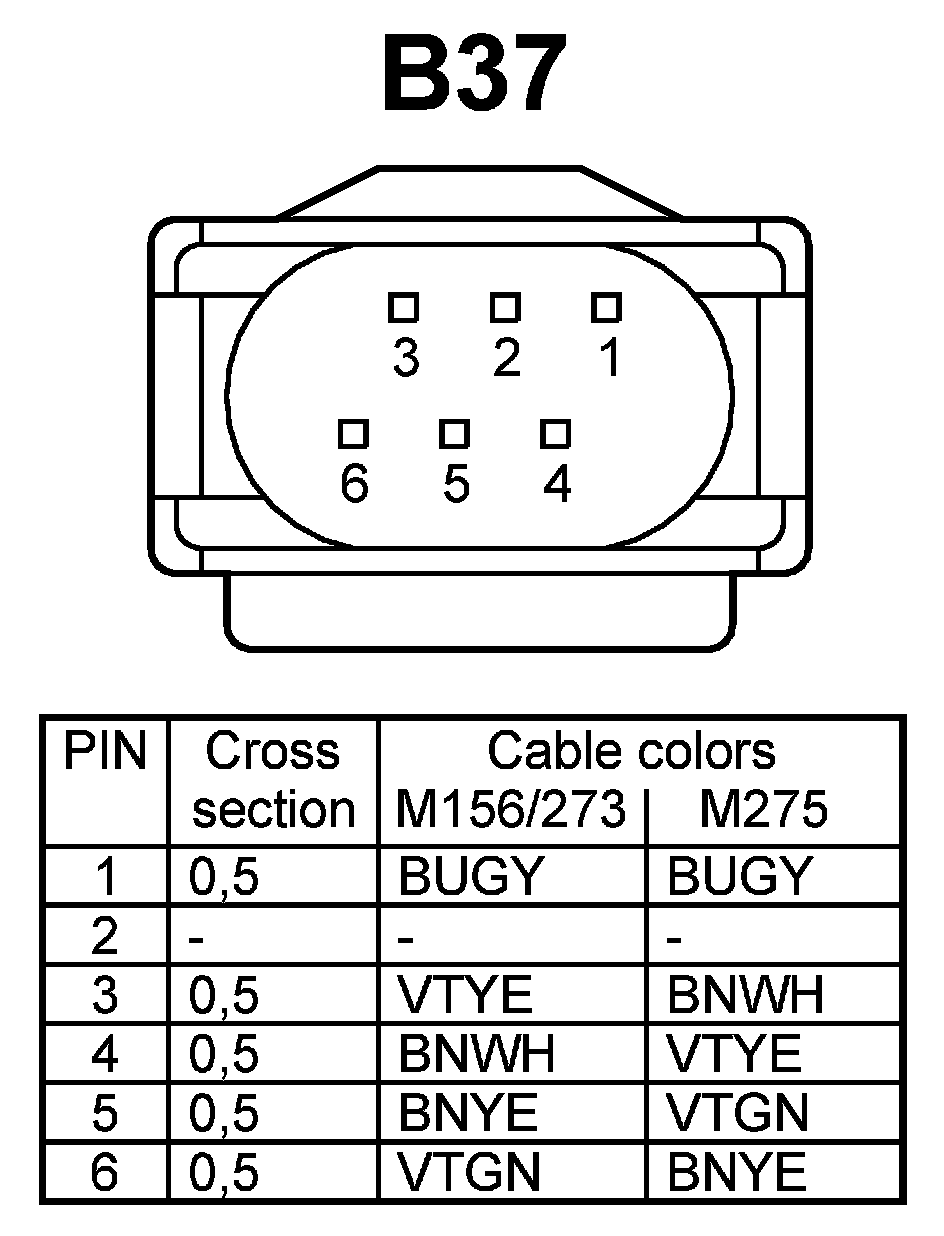

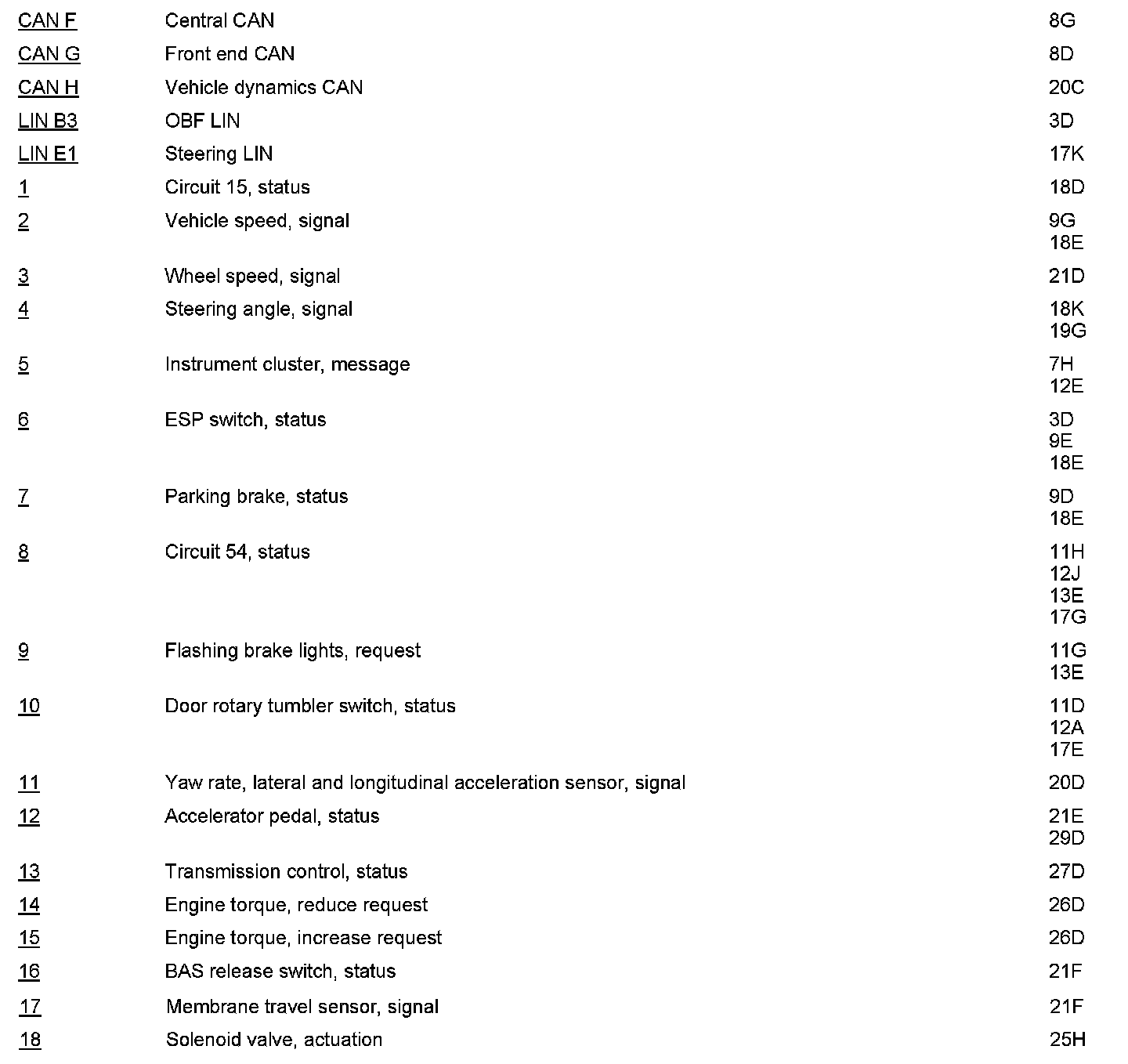

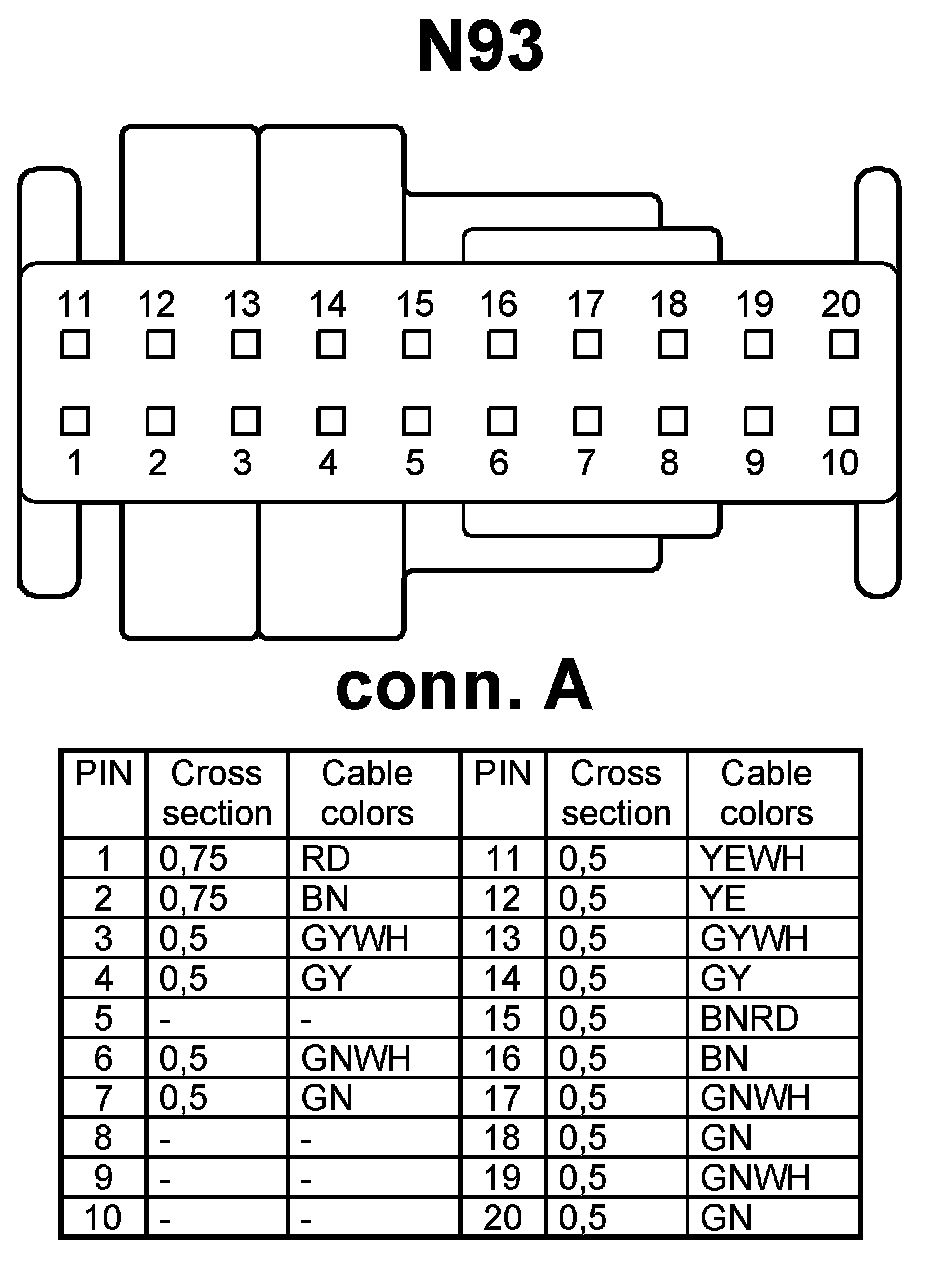

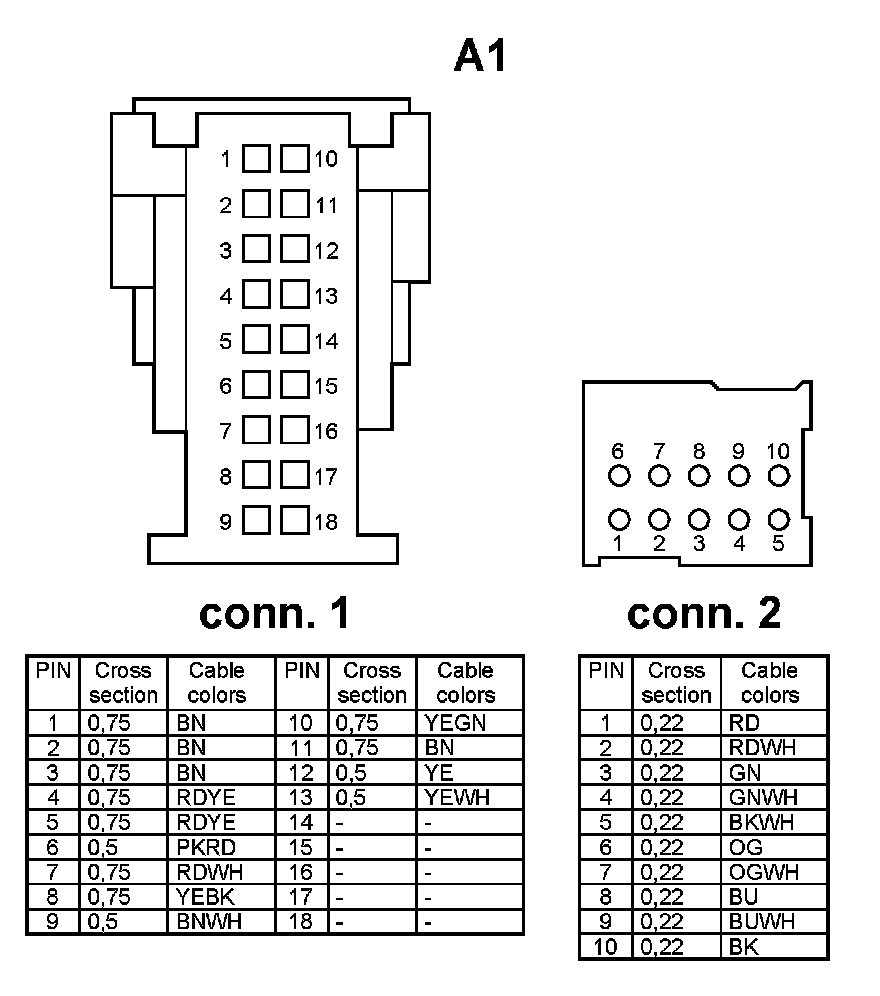

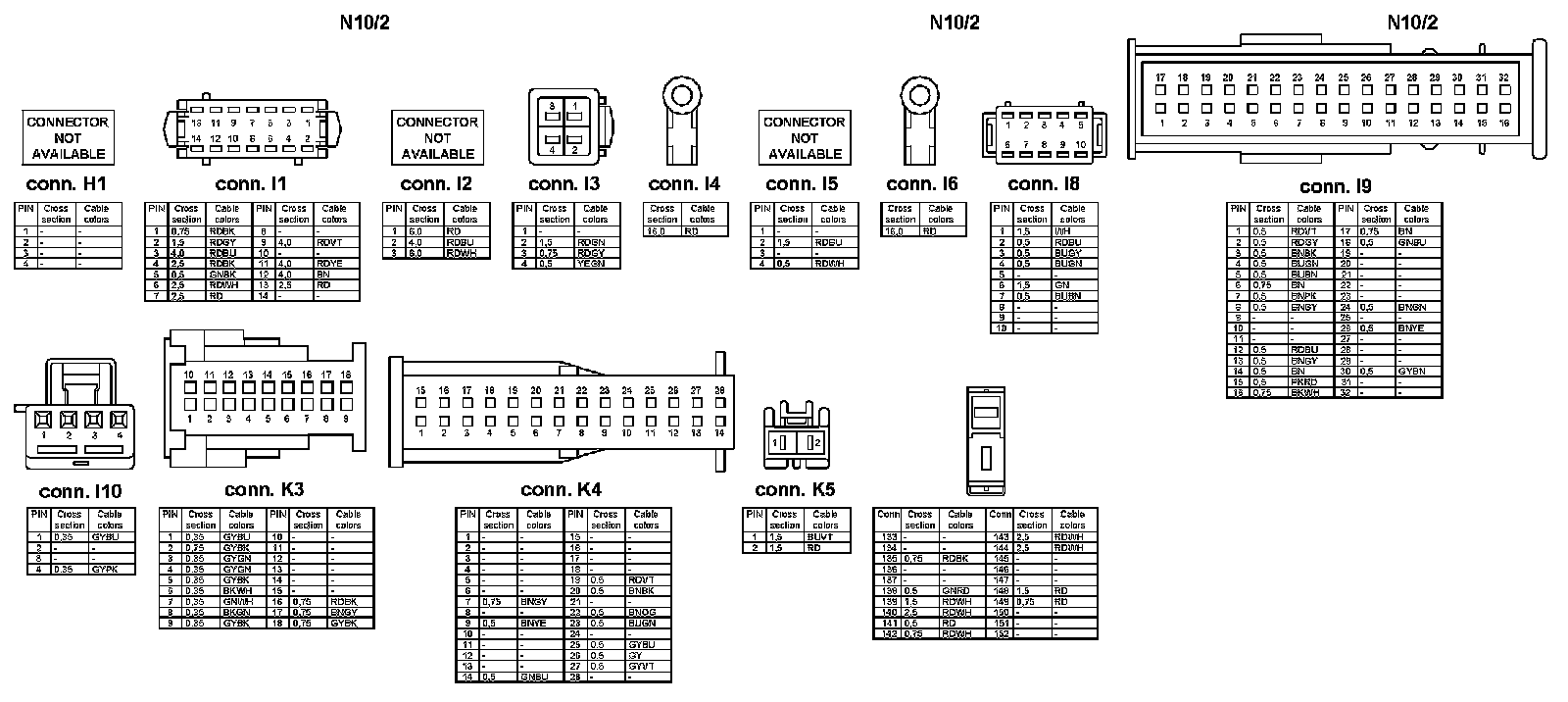

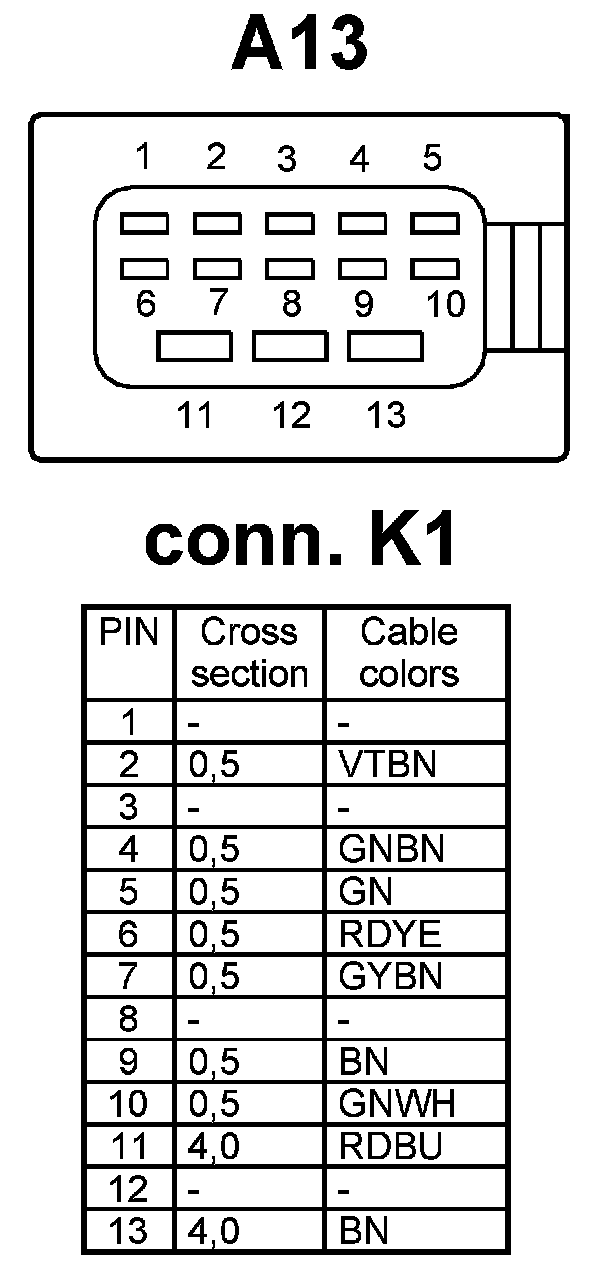

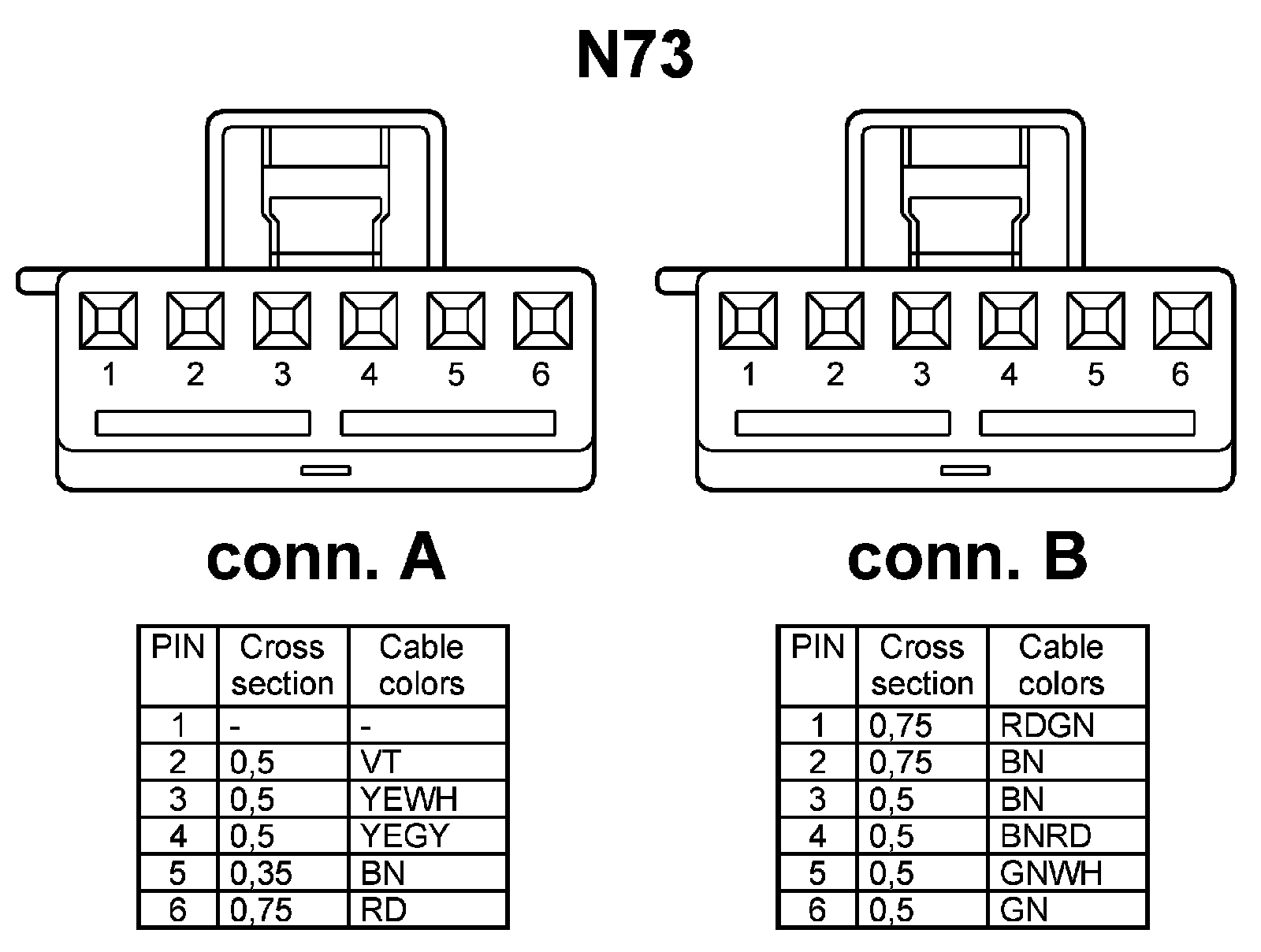

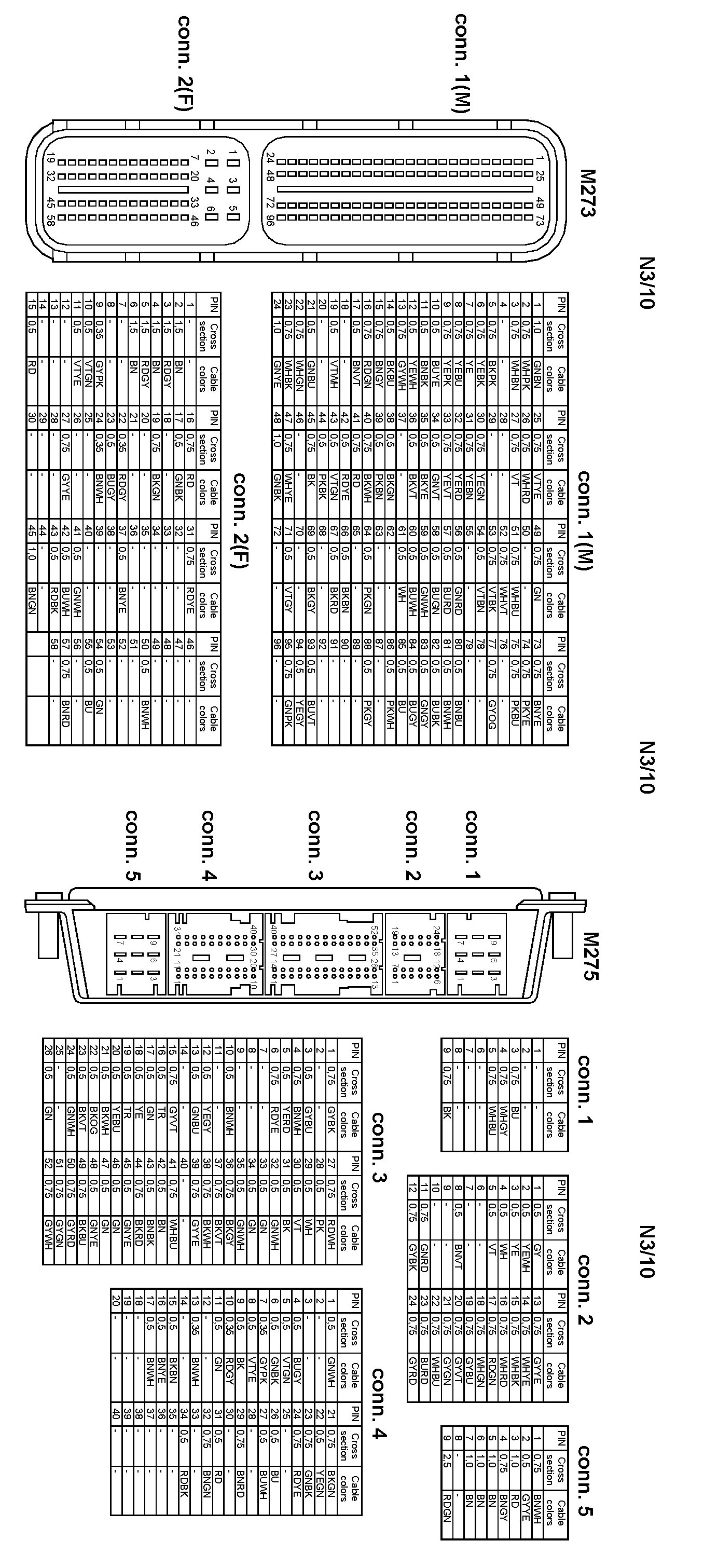

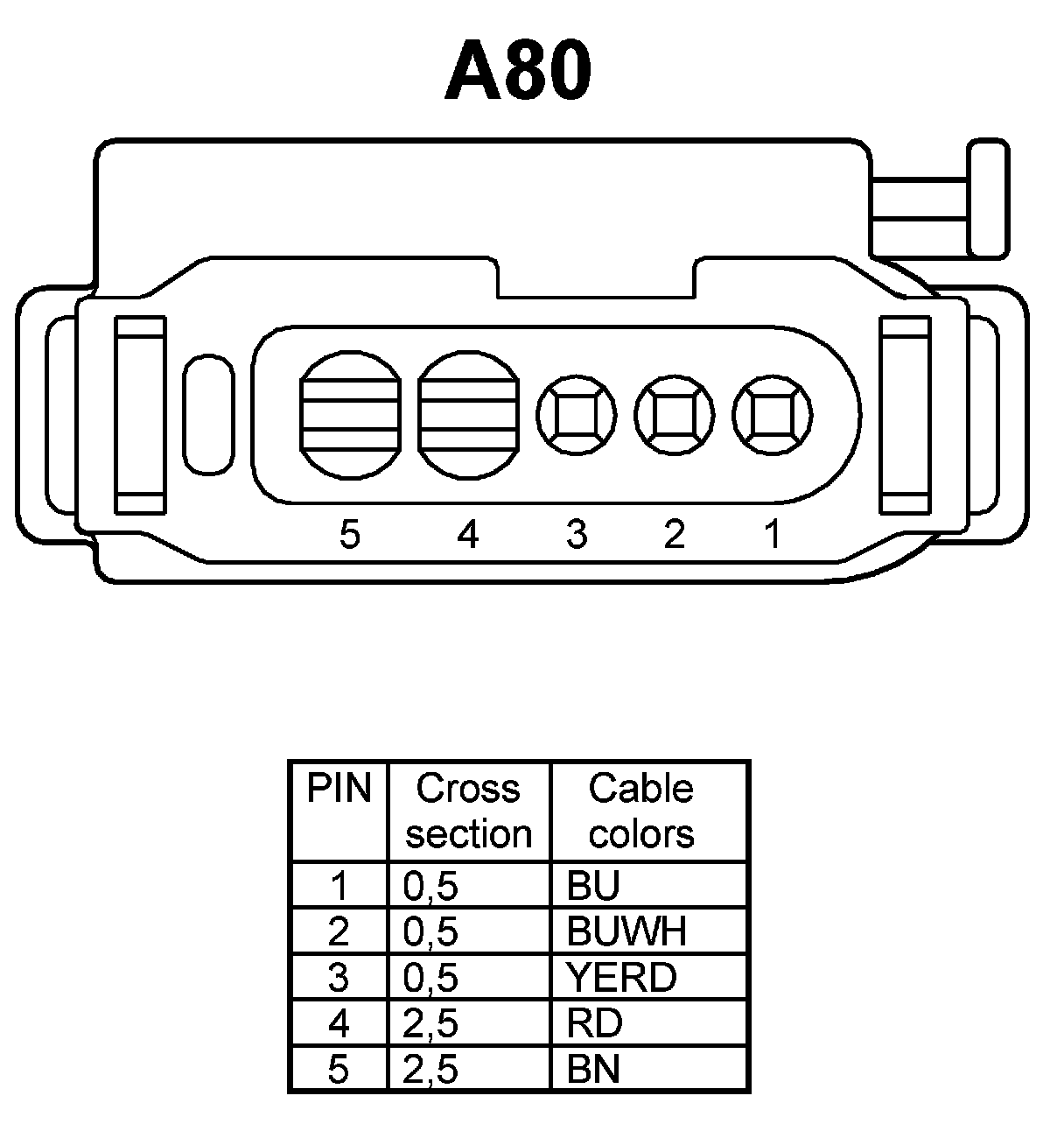

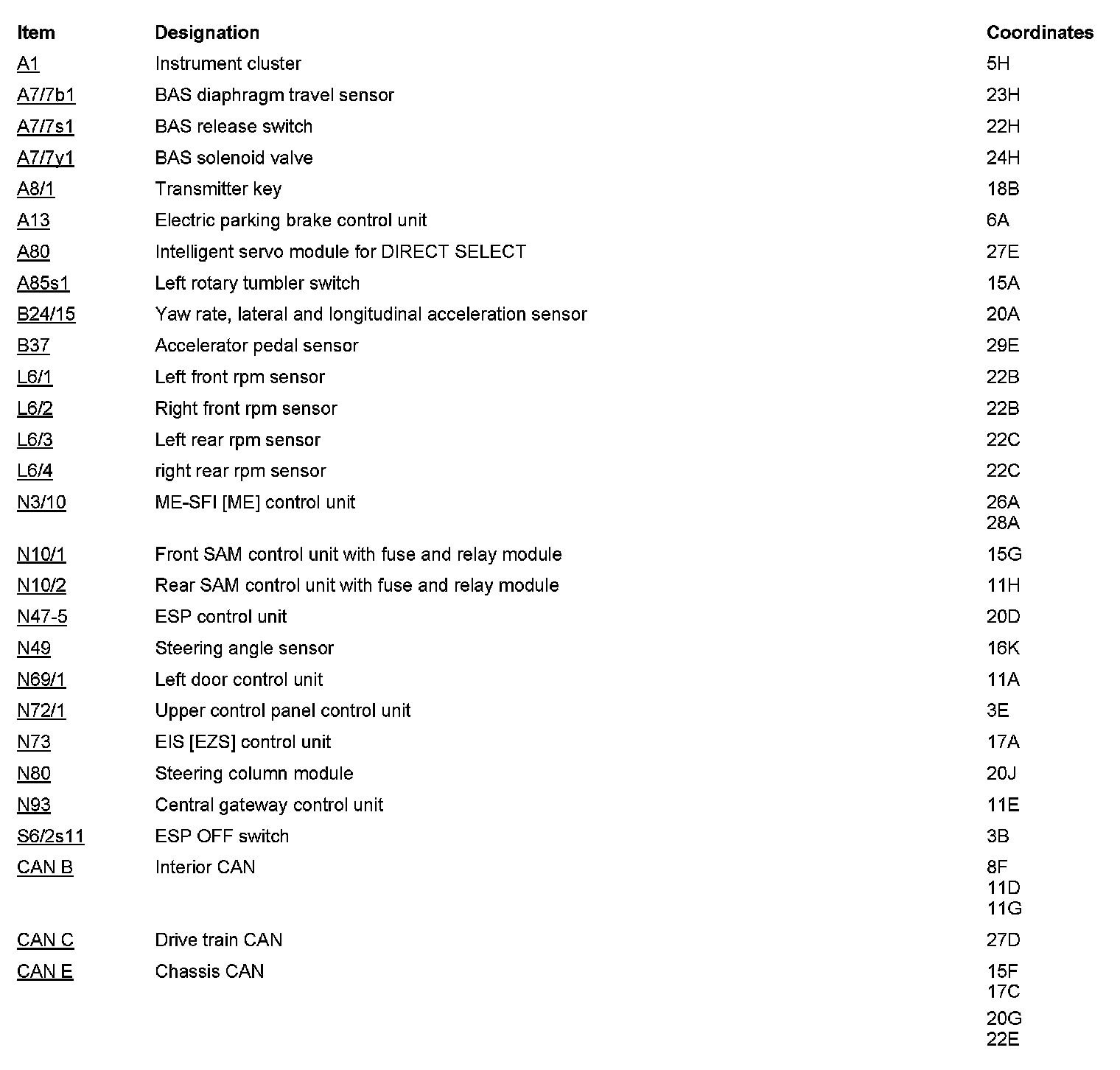

PE42.47-U-2050CAB Electrical Function Diagram For Adaptive Brake (ABR) System

PE42.47-U-2050CAB Electrical Function Diagram For Adaptive Brake (ABR) System

MODEL 216
- as of Model Year 2009
- up to Model Year 2010







































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
