AR67.10-P-1000-04CW Align Windshield In Body Opening

AR67.10-P-1000-04CW Align Windshield In Body Opening

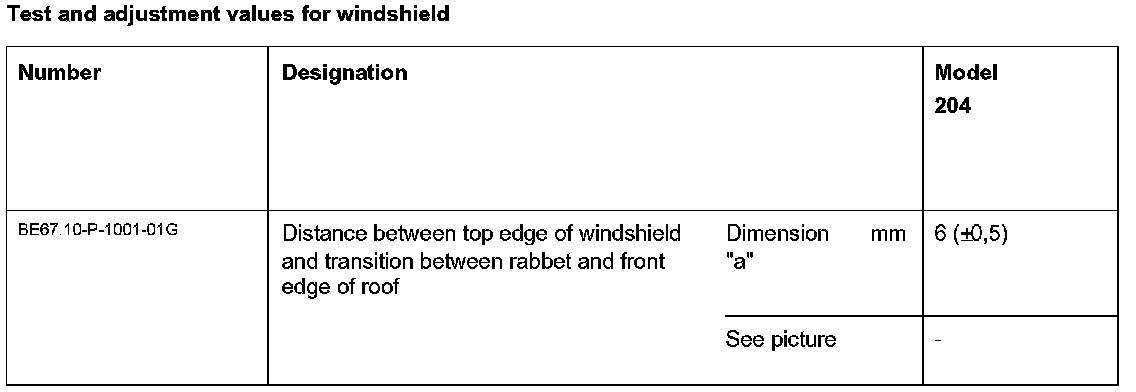

Test And Adjustment Values For Windshield:

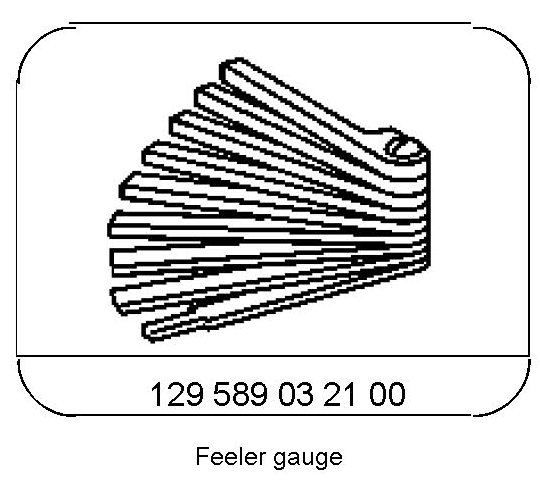

Special Tools:

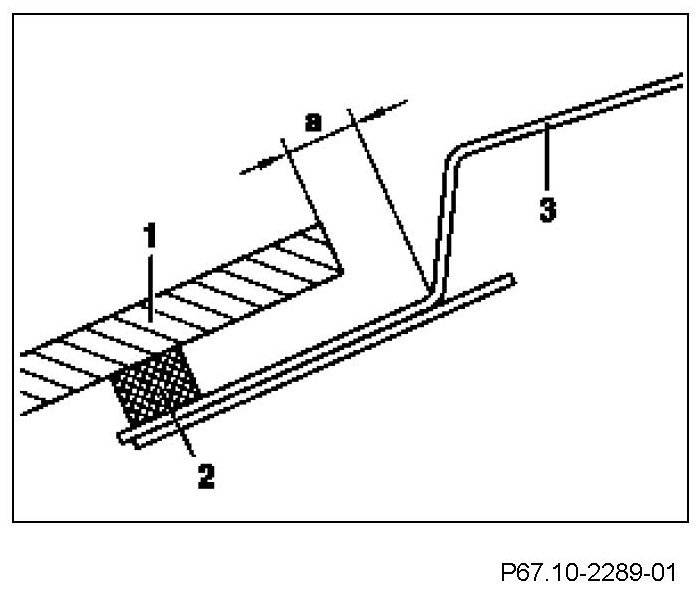

1. Position windshield (1) on spacers (2) on body flange (3) with aid of helper, align windshield (1) at top according to dimension (a) and center at sides.
Cup suction tool







2. Attach suitable strips of adhesive tape (arrows) and cut at upper edge on windshield (1).
3. Remove windshield (1) from body flange with aid of helper.
