AR27.30-P-4970CW Remove/Install Radial Shaft Sealing Ring on Front Transmission Cover



AR27.30-P-4970CW Remove/install radial shaft sealing ring on front transmission cover
- with TRANSMISSION 722.6/9

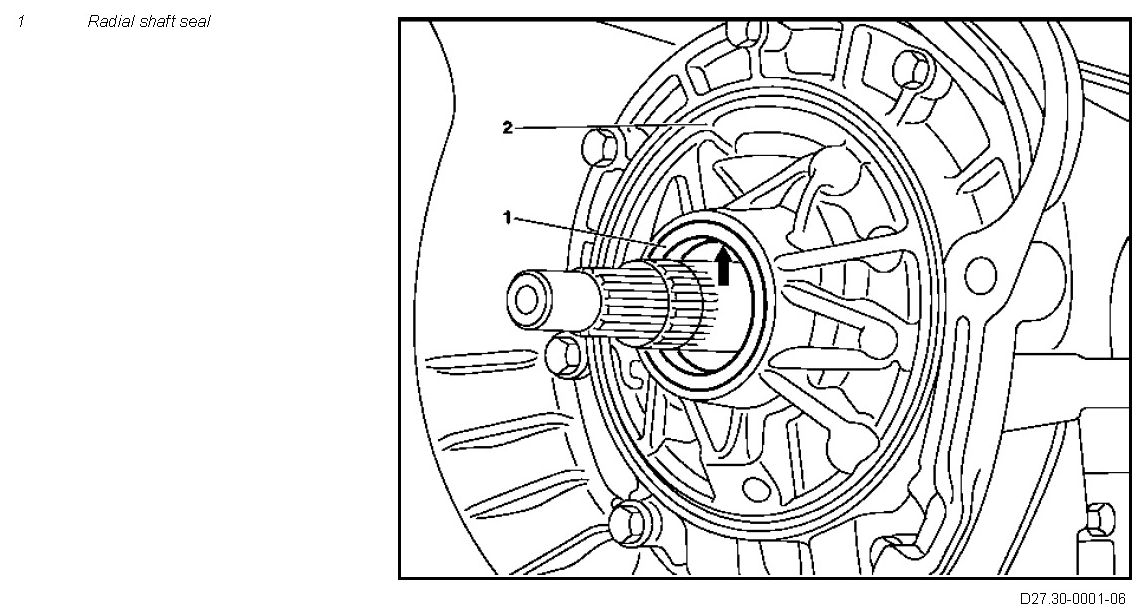

Component Identification:

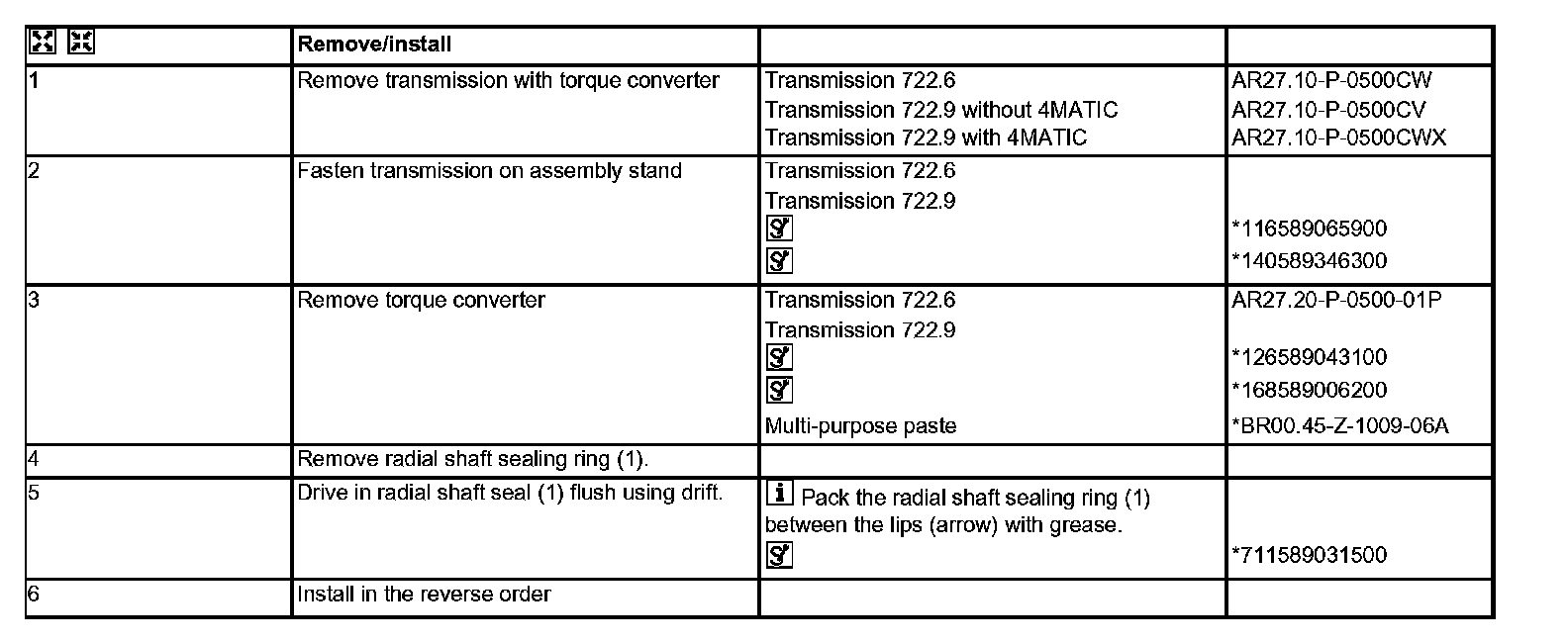

Remove/install Steps 1-6:

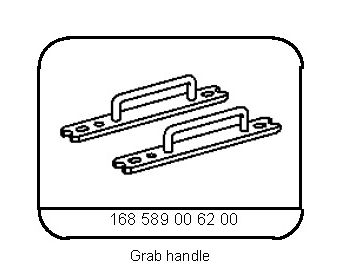

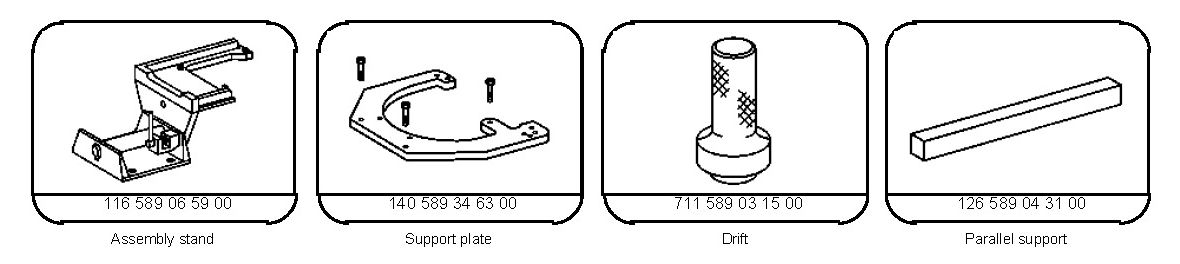

Special Tools:




Special Tools:

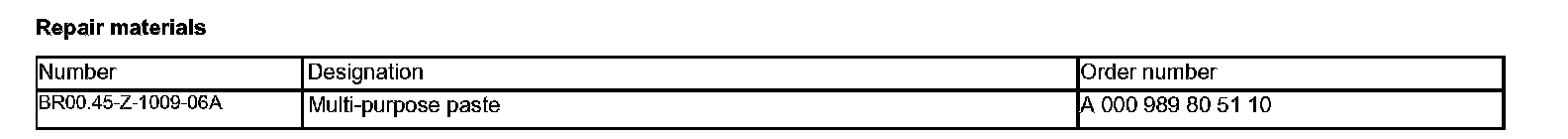

Repair materials:
