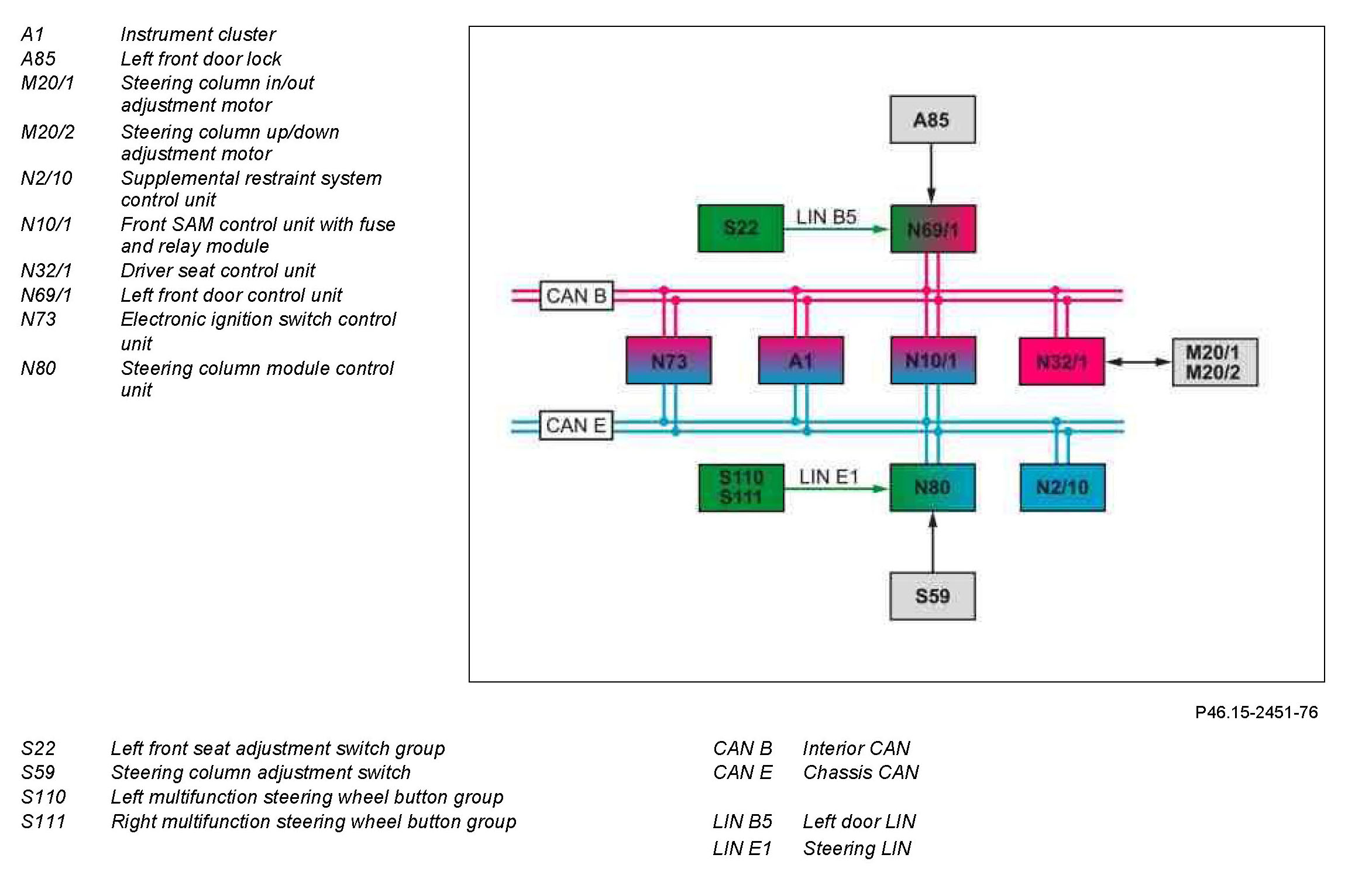

GF46.15-P-0003-02CE Electrically Adjustable Steering Column (EVL) Block Diagram



GF46.15-P-0003-02CE Electrically adjustable steering column (EVL) block diagram
- with CODE (275) Memory package (driver seat, steering column, mirrors)

Component Identification:
