Computers/Controls - DAS/XD Add-On 2009-12-03-1314

DAS/XD ADD-ON 2009-12-03-1314 FOR PASSENGER CARS

Topic number LI58.40-P-048776

Version 1

Design group 58.40 Workshop equipment/MB testers

Date 01-07-2010

Validity DVD version 10/2009

Reason for change

Reason for block

Complaint:

ETC, model series: 203,211,221 Diagnosis as per factory specifications is possible without a password.

ETC

Model series: 204, 212, 207

1. Display of adaptation data for development department as text file

2. Activation of control unit 3. Correction programming in Diagpass and XD modified for hotline cases

SIM4CNG

Model series: 211

Coding of engine control unit not possible.

TSGVL9, TSGVR9, TSGHL9, TSGHR9, TSGML9, TSGMR9

Model series: 221

Coding in diagnosis per factory specifications is not possible
SRS/airbag

Model series: X204

If the SM for the X204 cannot be successfully completed in the first run (e.g. communication problem, OBD connector disconnected etc.), it is not possible to repeat the initial startup procedure (fault message -99 after CU programming).

Cause:

For all complaints: XD and DAS diagnostic data.

Remedy:

DAS/XD add-on 2009-12-03-1314 for passenger cars:

This add-on can be installed over DAS/XD version 10/2009.

This add-on does not supersede any other add-ons and must be additionally installed.

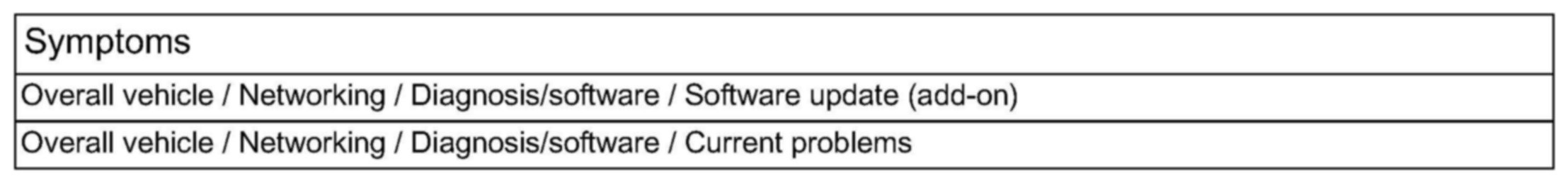

Symptoms

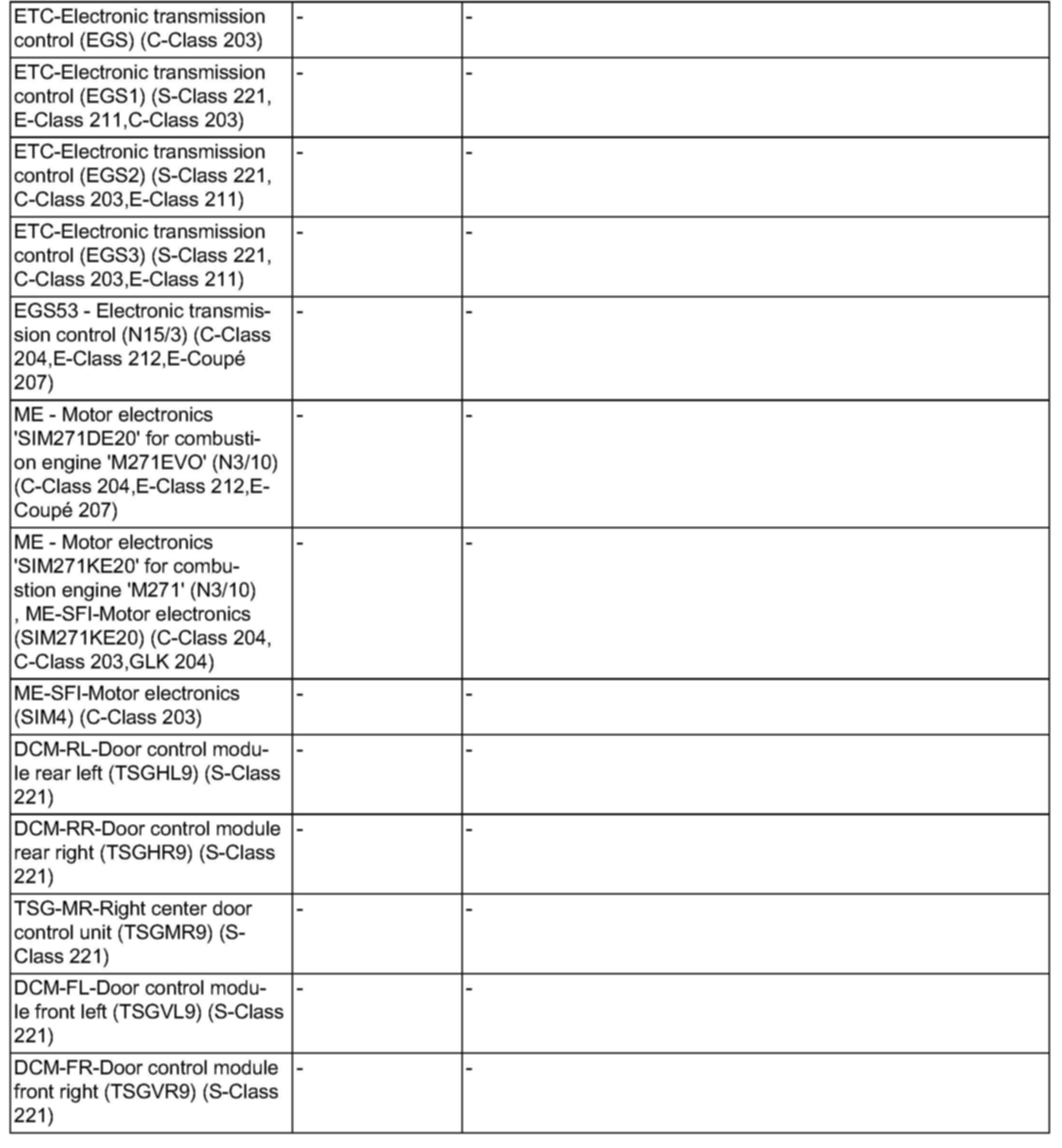

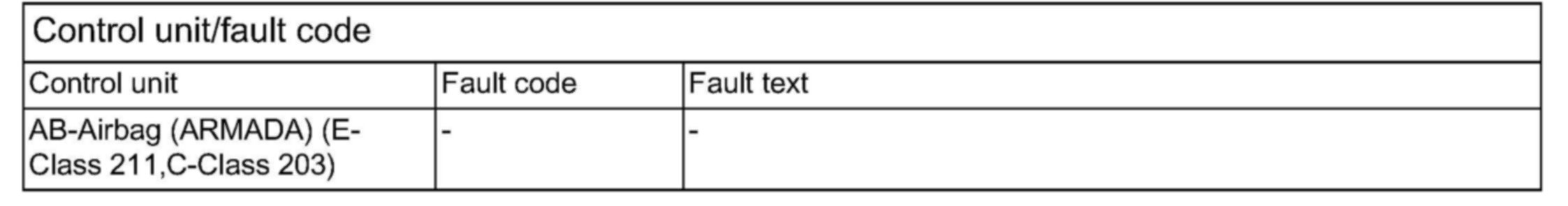

Control unit/fault code

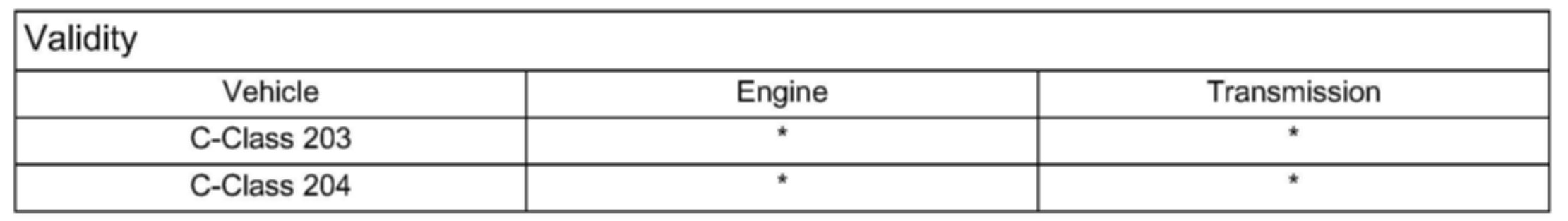

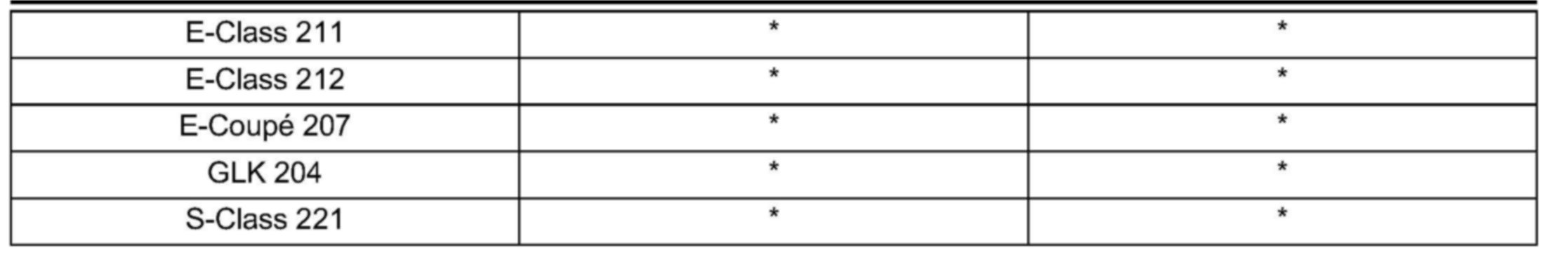

Validity
