Air Duct: Service and Repair
AP83.10-P-8339CW Clean Water Drain In Air/water Duct

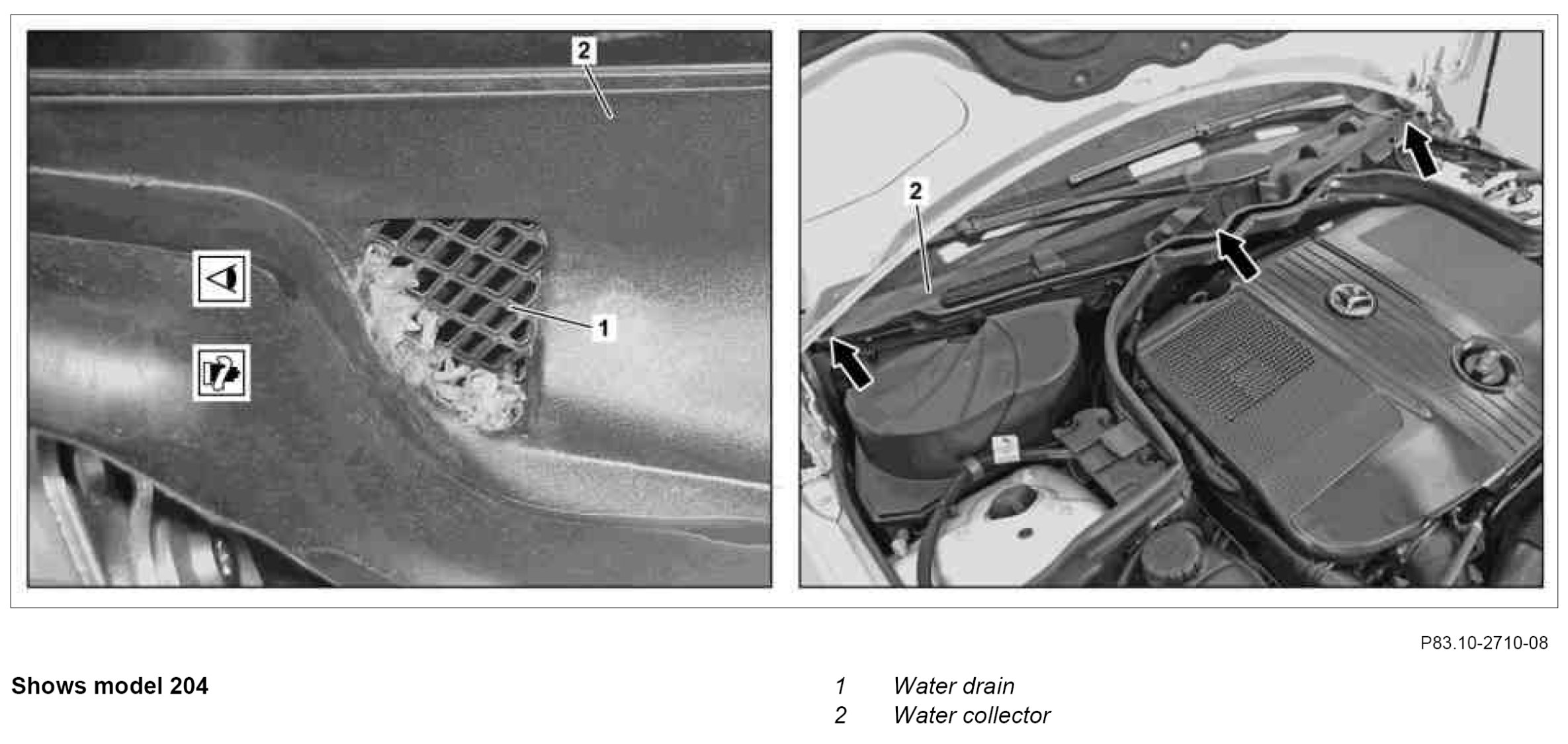

Component Identification:

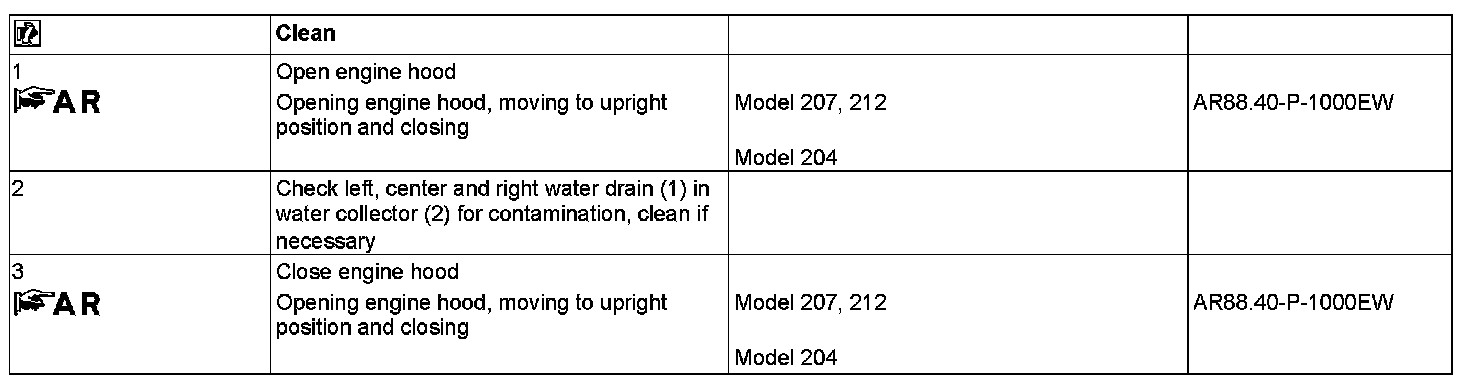

Steps 1-3:
