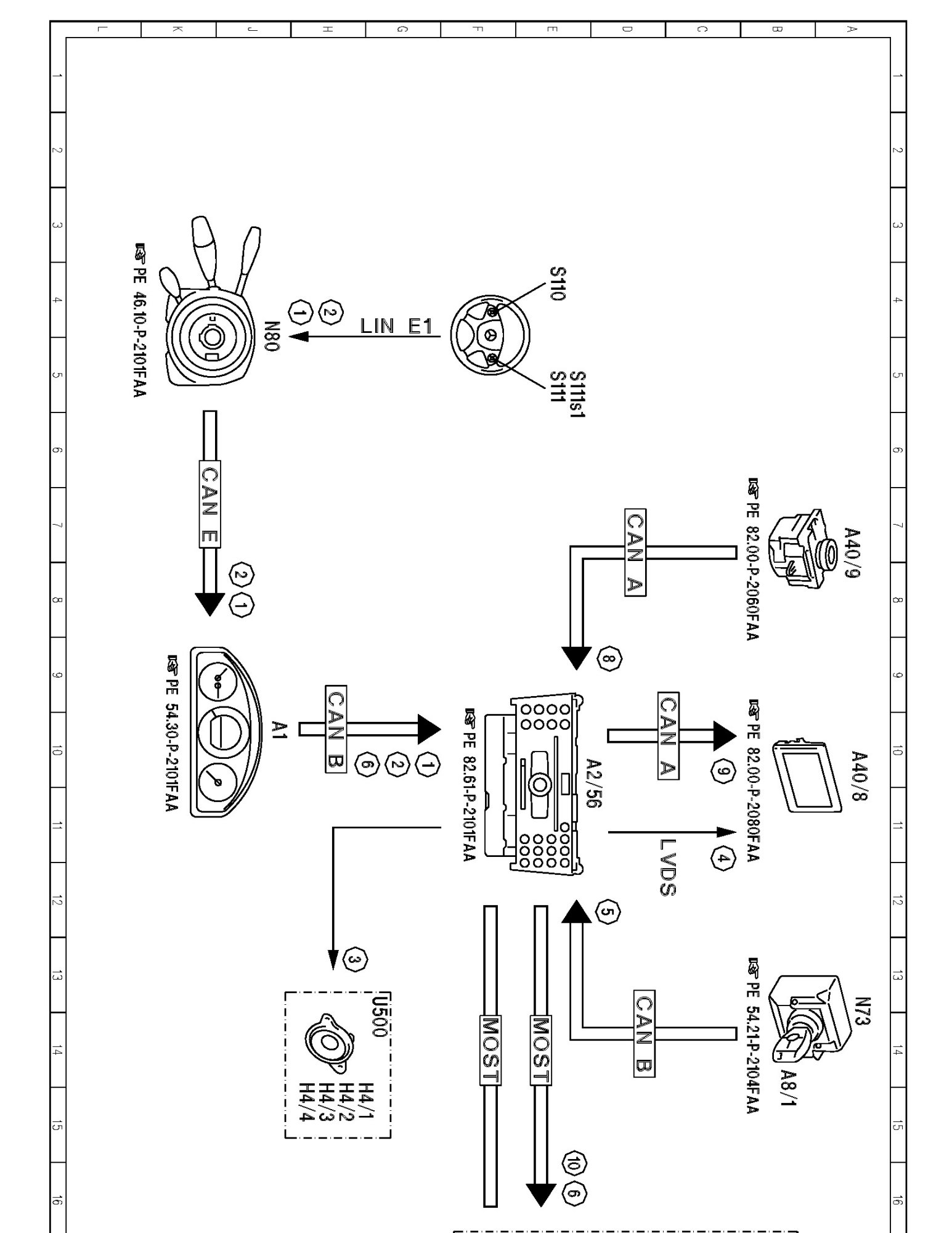

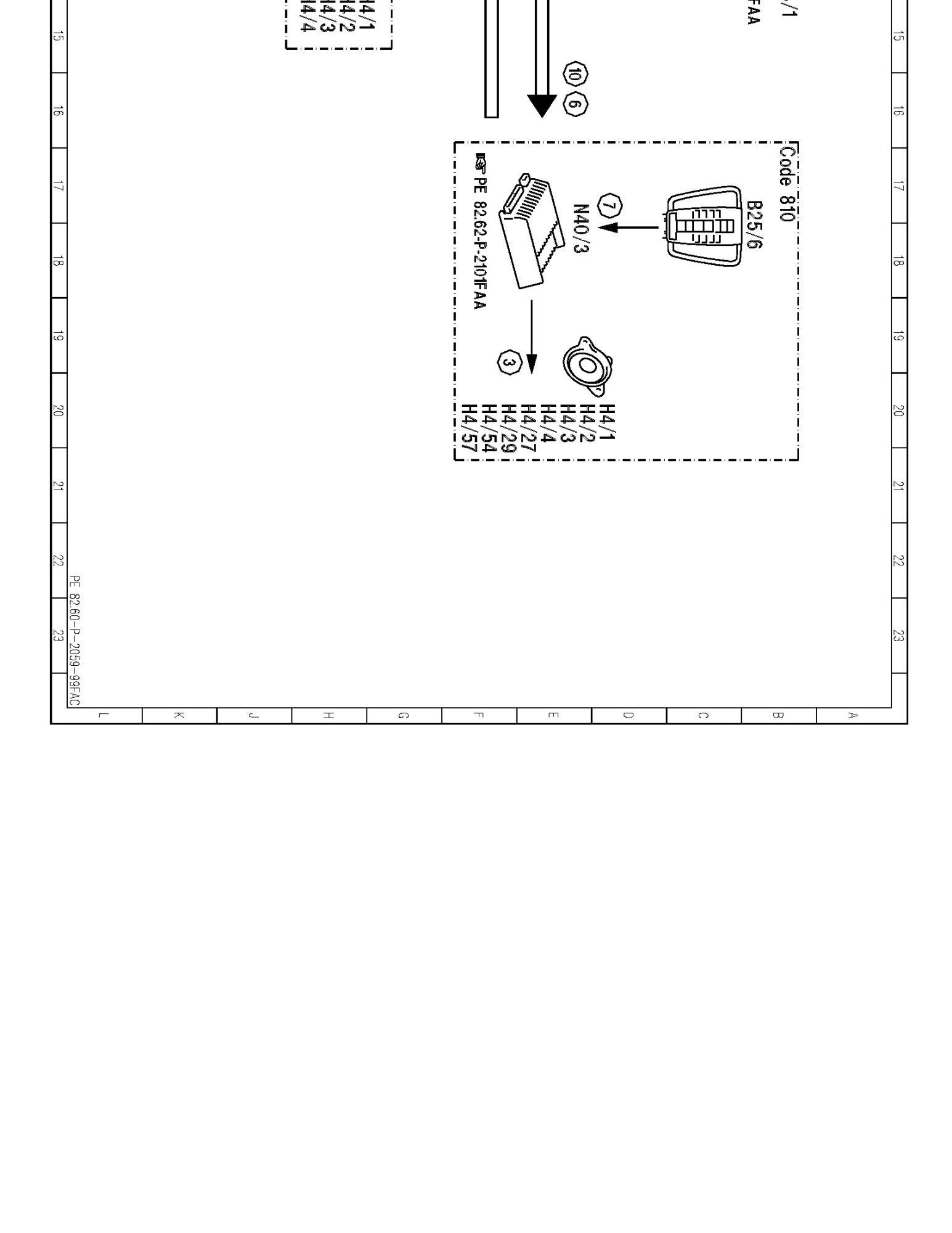

PE82.60-P-2059FAC Electrical Function Diagram For Volume/Sound Settings, Function

PE82.60-P-2059FAC Electrical Function Diagram For Volume/Sound Settings, Function
- with CODE (511) Audio 50 APS with DVD changer
- with CODE (525) MB Audio 50 APS radio


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
