AR43.05-P-1320CW Remove/Install Vacuum Pump
AR43.05-P-1320CW Remove/Install Vacuum Pump
AR43.05-P-1320CW Remove/install vacuum pump

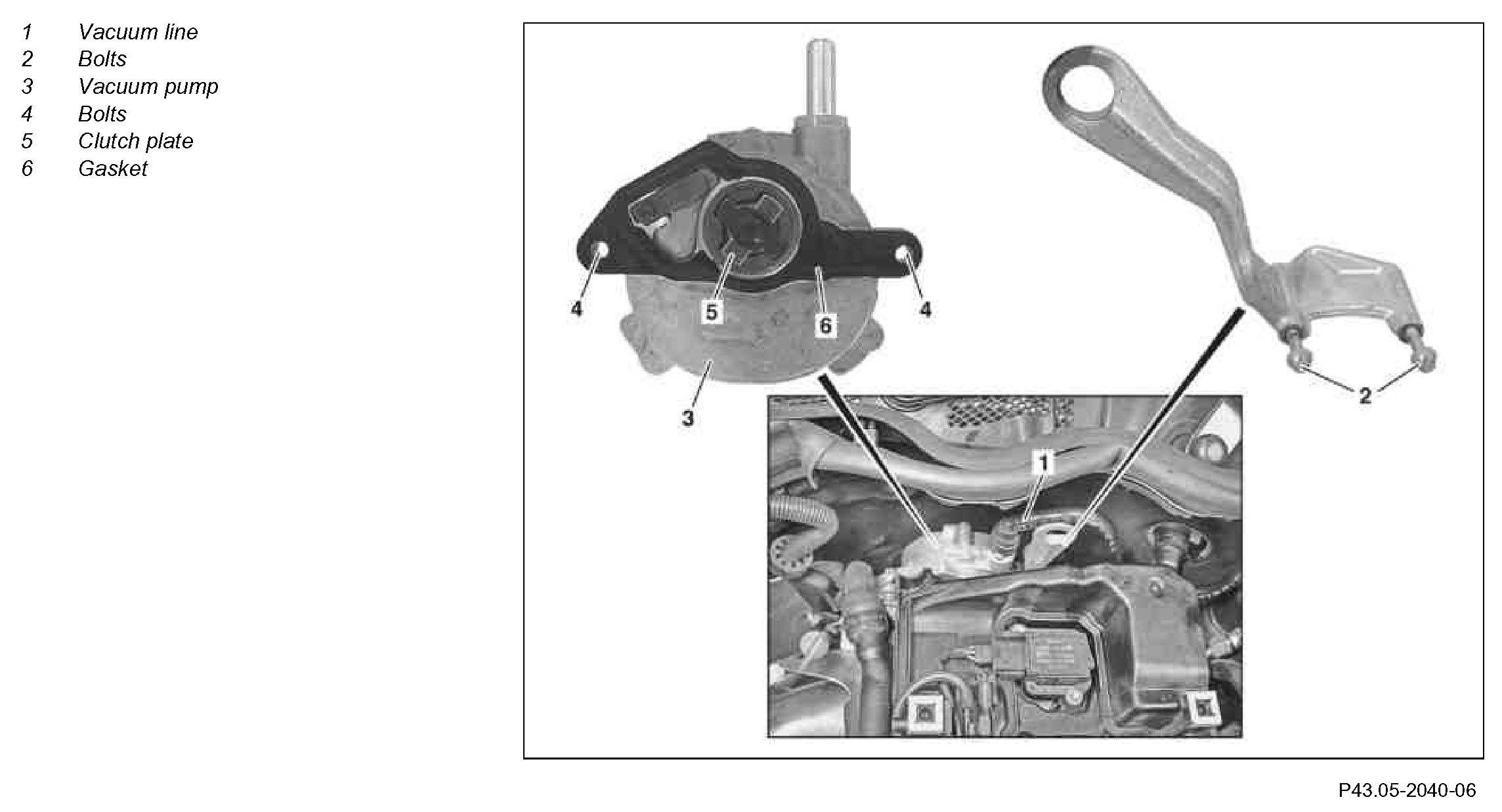

Component Identification:

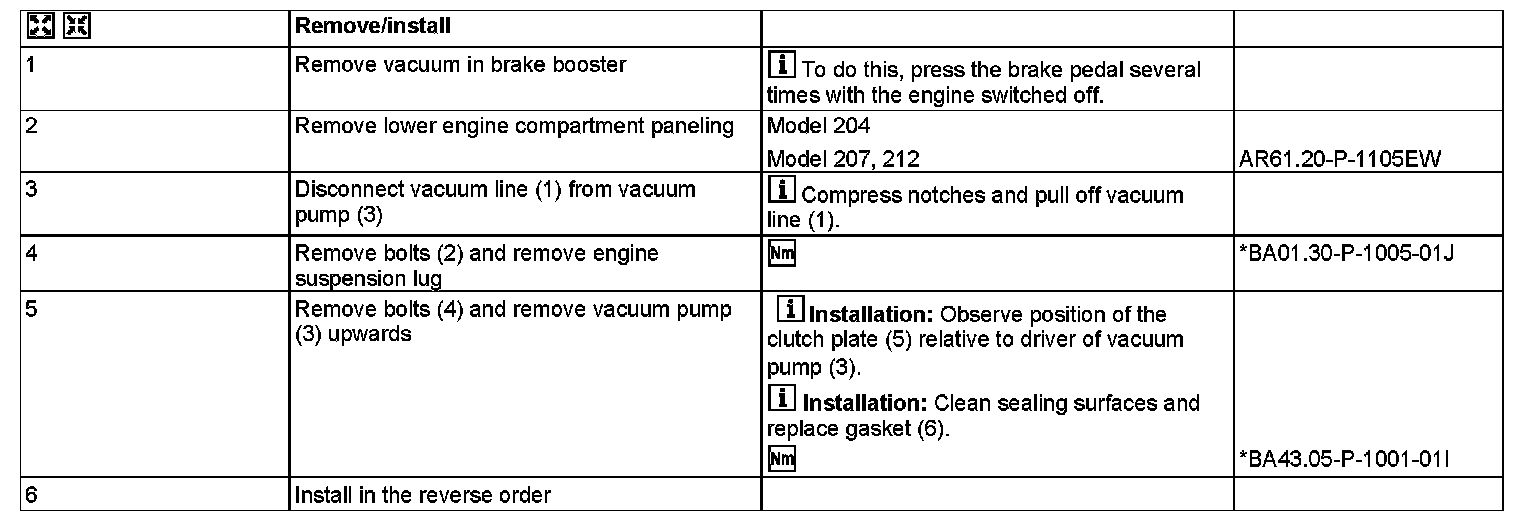

Steps 1-6:

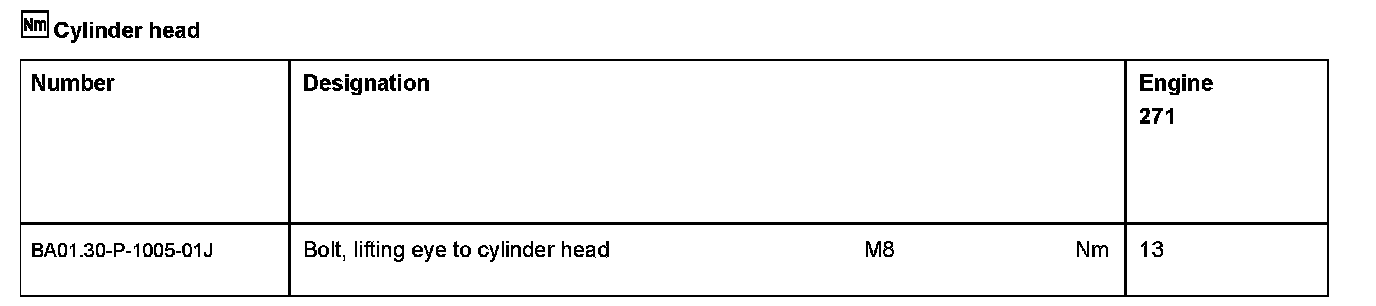

Cylinder Head:

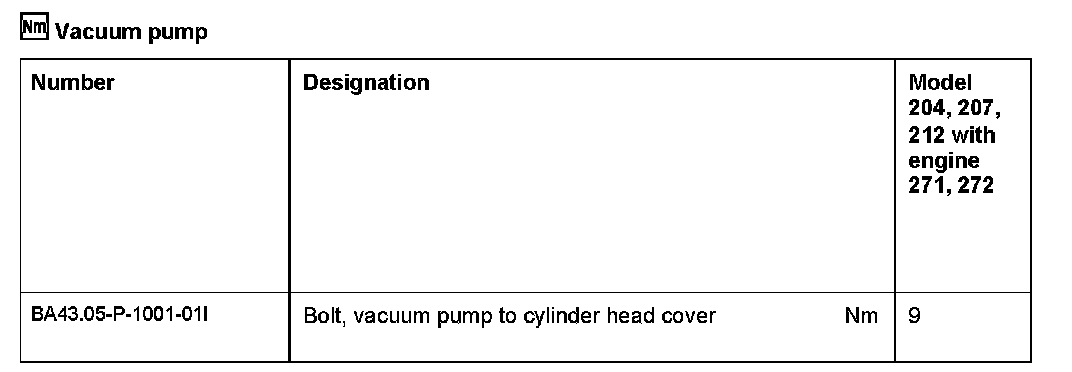

Vacuum Pump:
