AZ88.30-P-0003CW Retrofit Mud Guards
AZ88.30-P-0003CW Retrofit Mud Guards
AZ88.30-P-0003CW Retrofit Mud Guards
- except CODE (772) AMG styling package - front
spoiler
, side skirts and rear apron
- except CODE (950) EVOLUTION AMG sport package
- except AMG vehicles

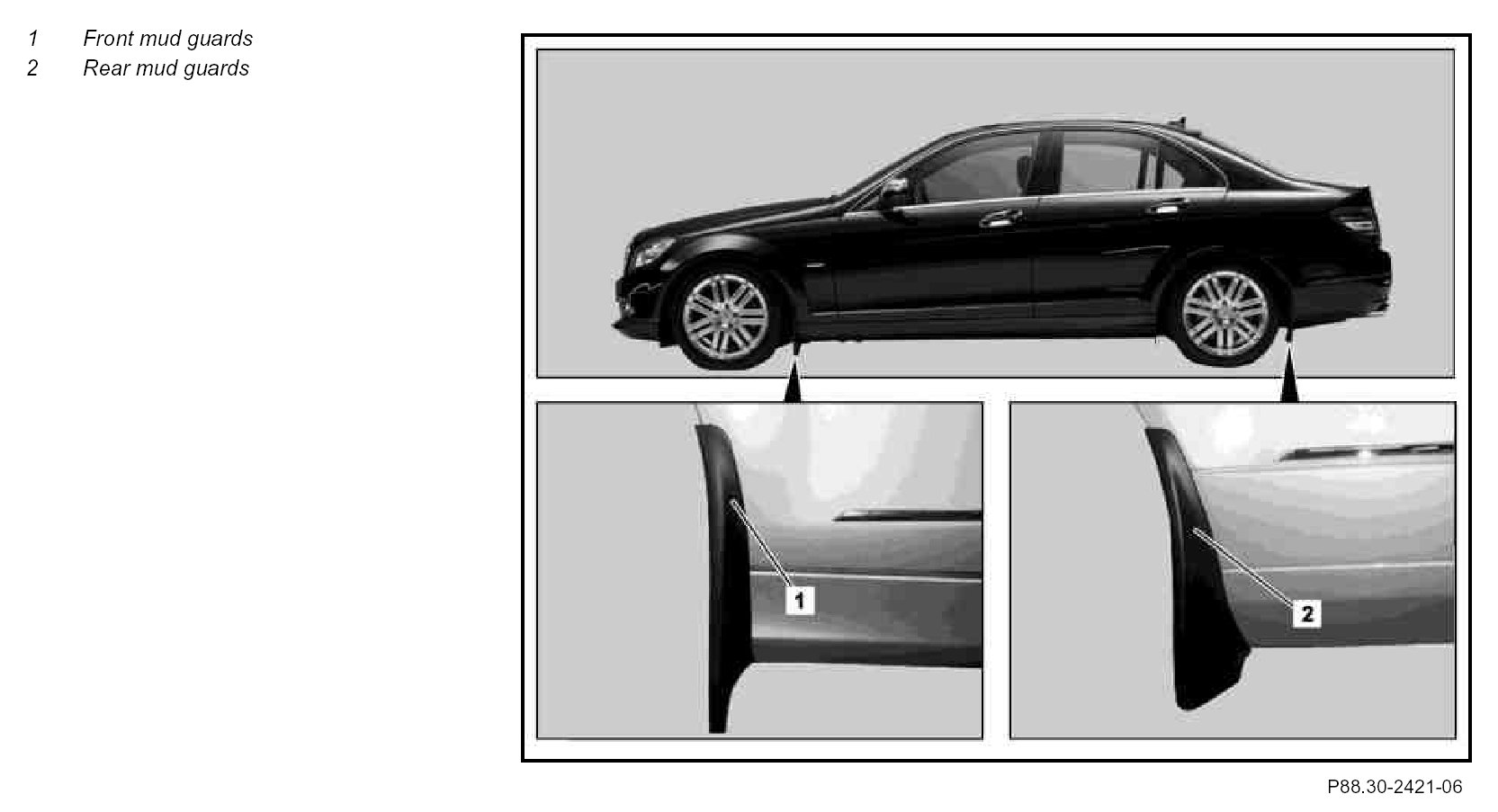

Component Identification:

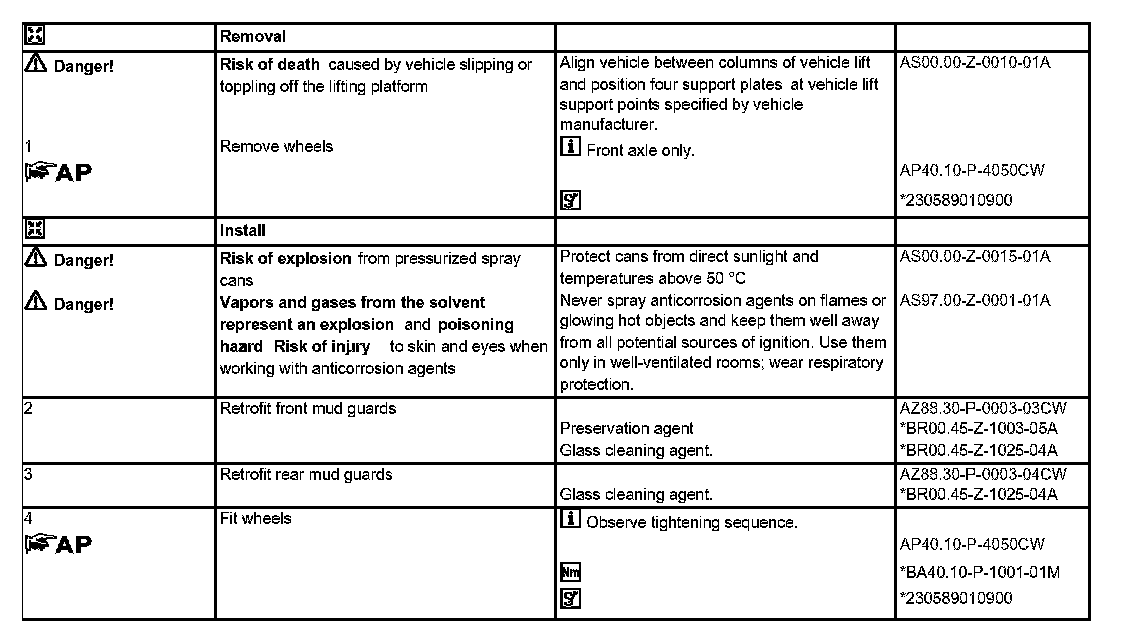

Steps 1 - 4:

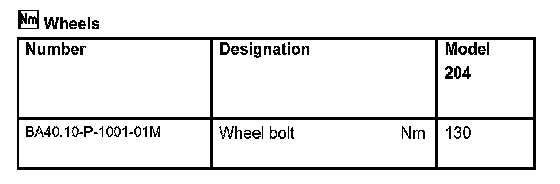

Wheels:
Special Tools:

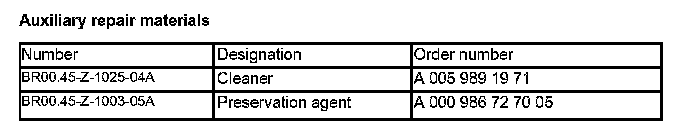

Auxiliary Repair Materials:

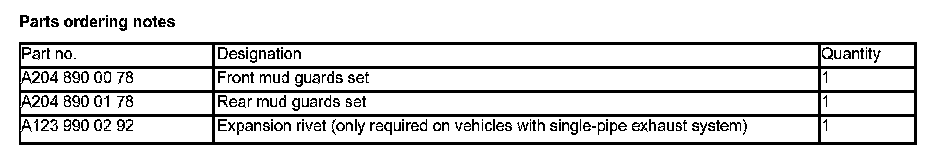

Parts Ordering Notes:
