AR91.25-P-1680CX Remove/Install Driver and Passenger Side Multicontour Backrest Air Cushion



AR91.25-P-1680CX Remove/Install driver and passenger side multicontour backrest air cushion
- with CODE (409) Left/right front multicontour seat
- Side air cushion

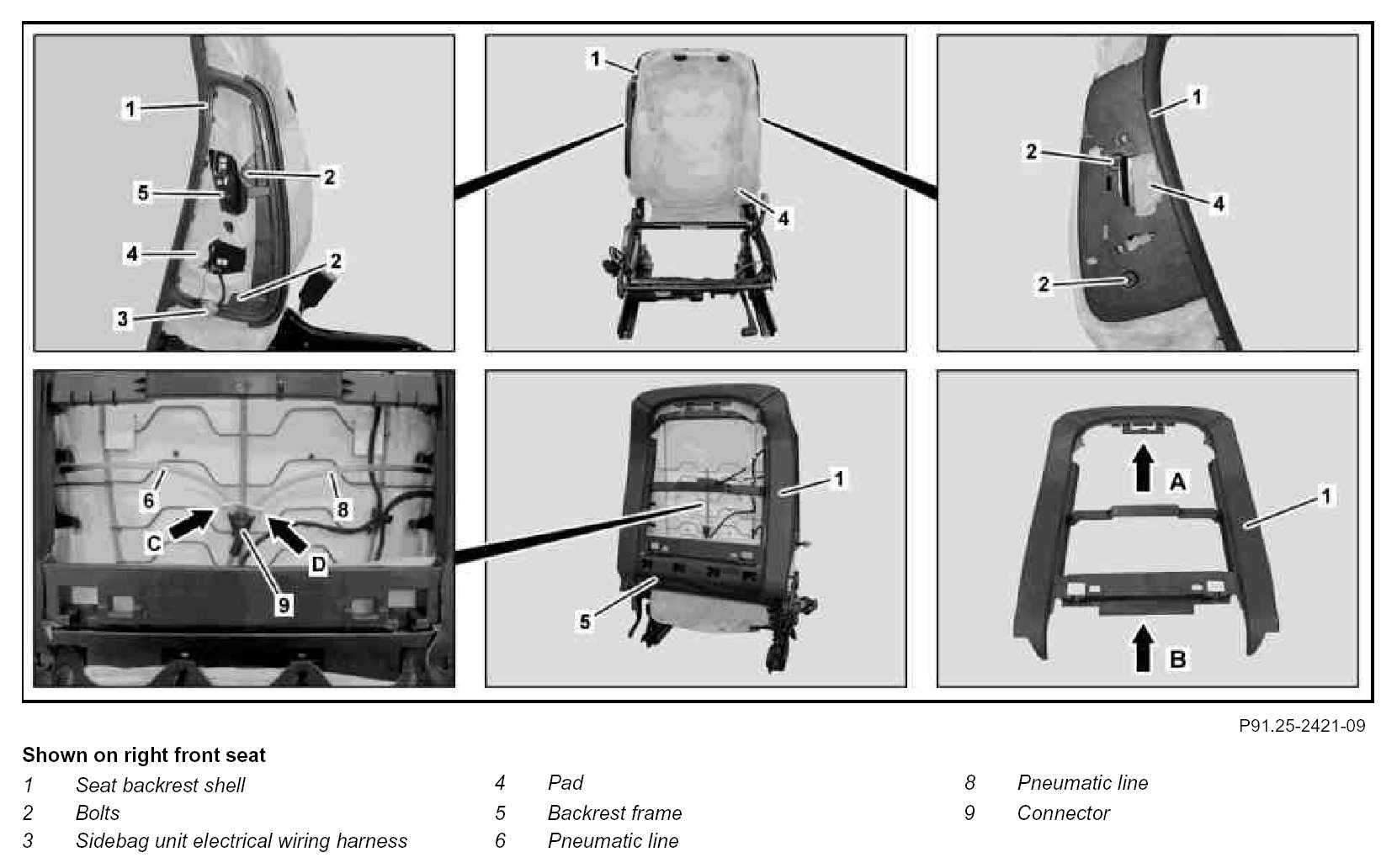

Component Identification:




Component Identification:

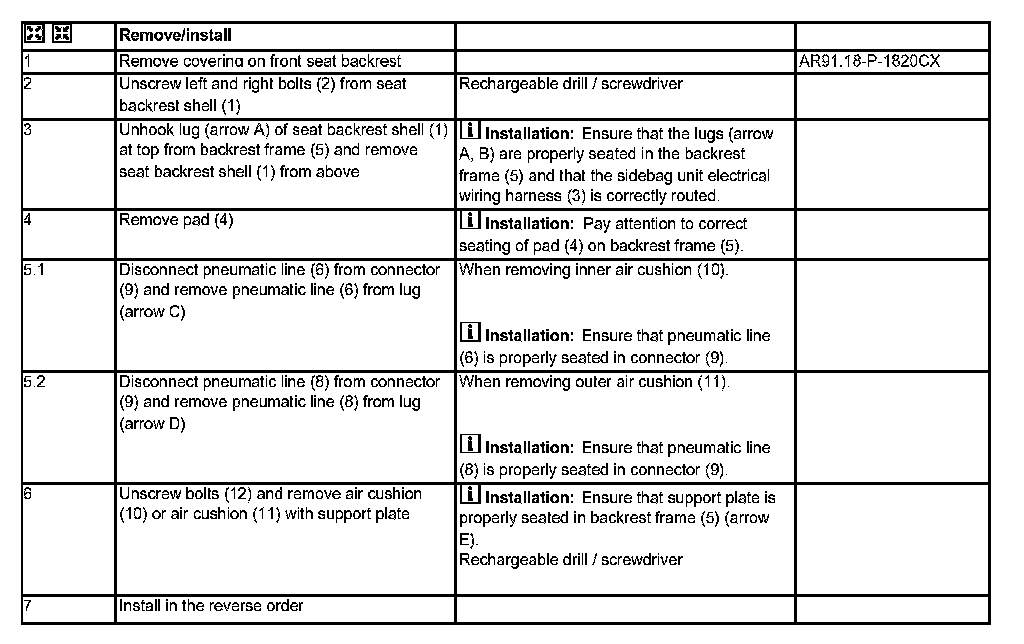

Steps 1 - 7:
