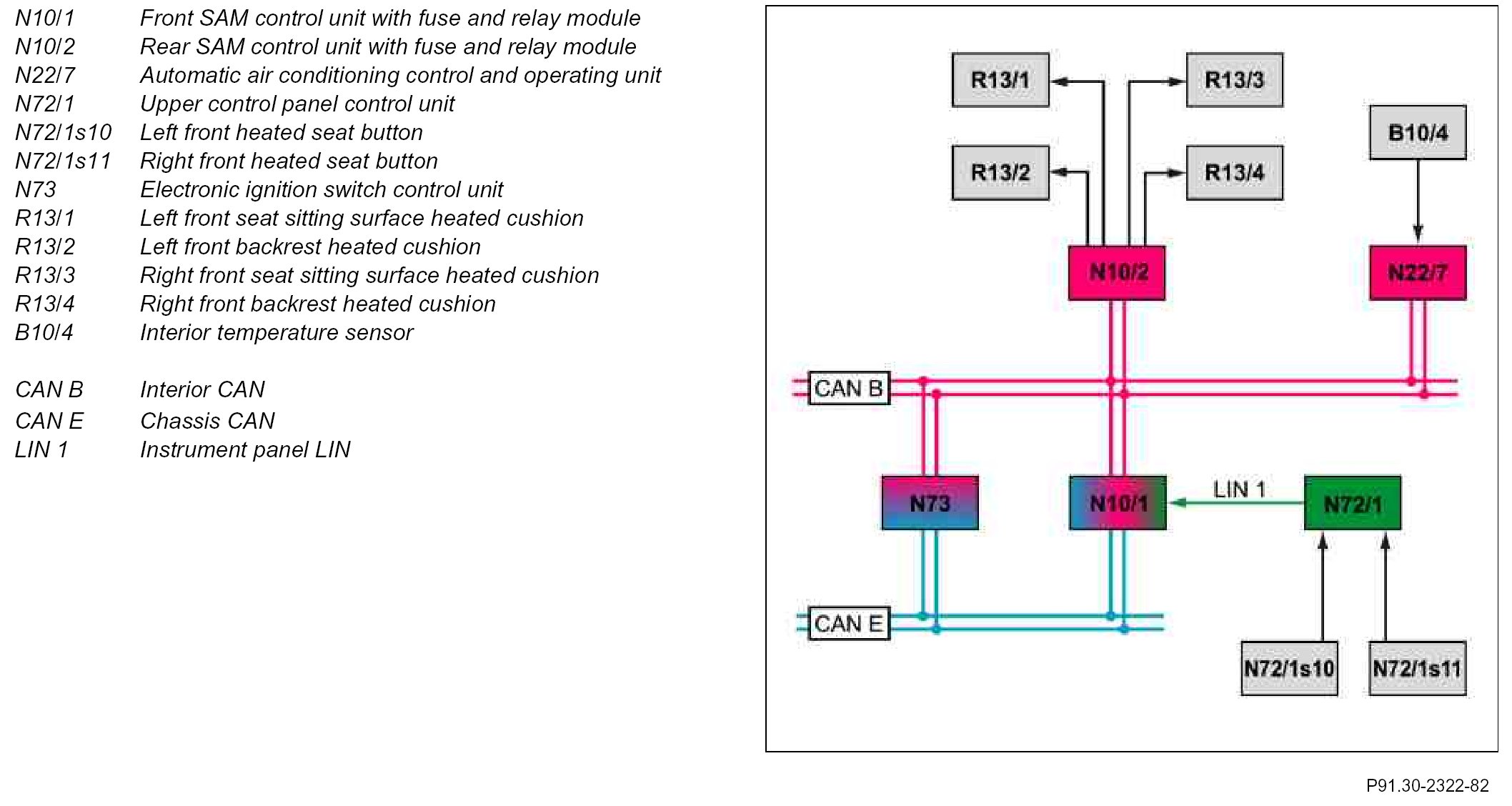

GF91.30-P-0003-03CE Seat Heater (SIH), Block Diagram



GF91.30-P-0003-03CE Seat Heater (SIH), Block Diagram
- with CODE (873) Left and right front seat heaters

Component Identification:
