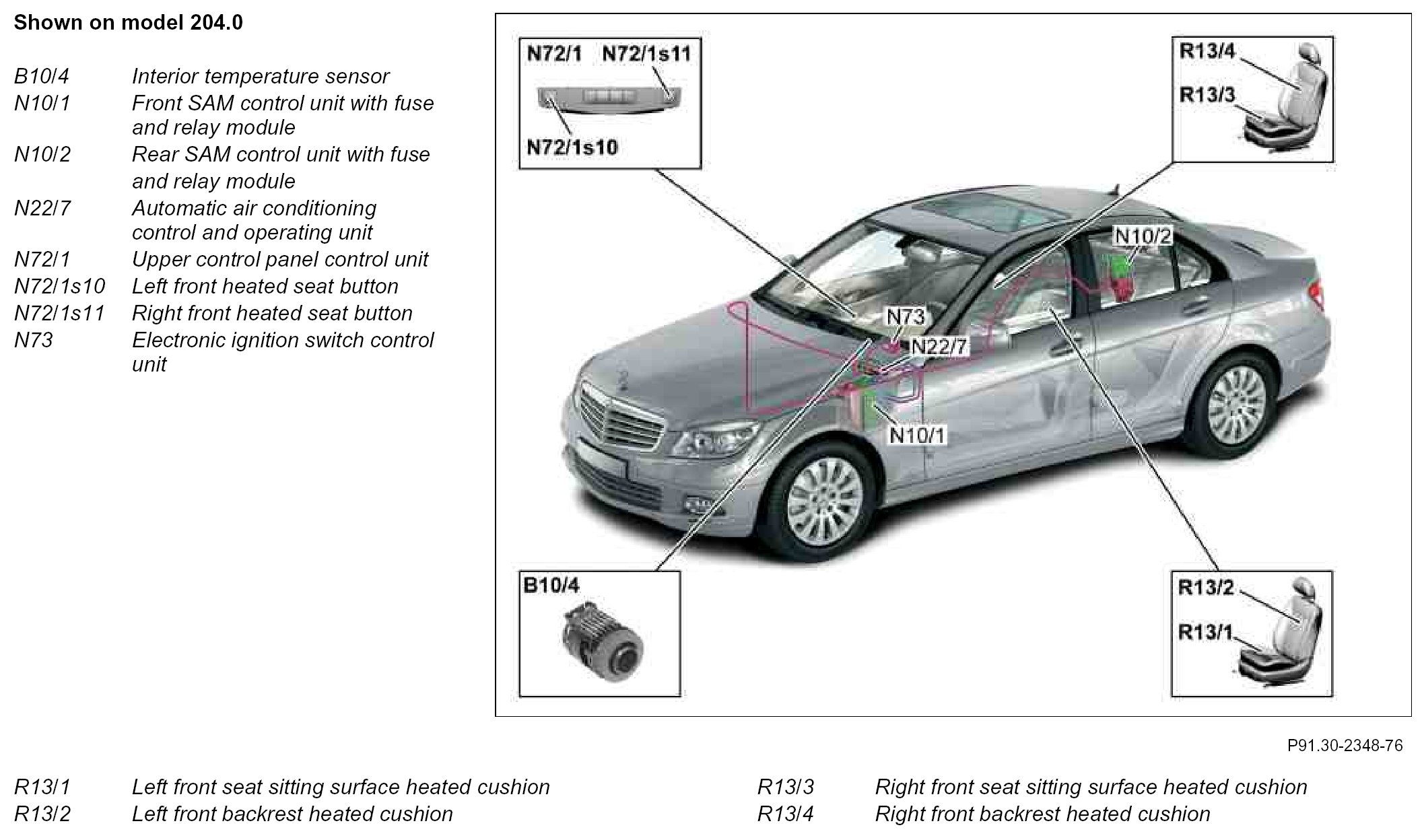

GF91.30-P-0003-02CE Seat Heater (SIH), Location of Components



GF91.30-P-0003-02CE Seat Heater (SIH), Location Of Components
- with CODE (873) Left and right front seat heaters

Component Identification:
