AR77.21-P-7010-03CW Prepare Front Glass Cover For Installation

AR77.21-P-7010-03CW Prepare Front Glass Cover For Installation
- with CODE (413) Panoramic sliding roof

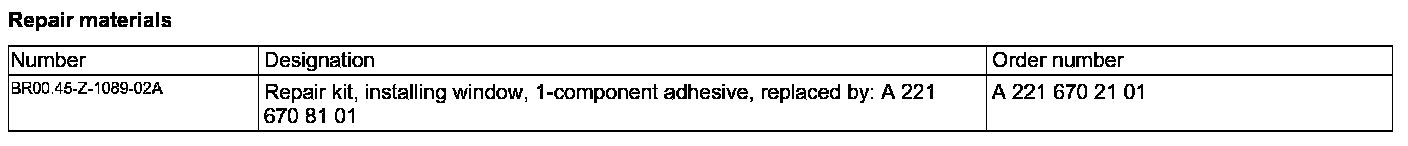

Repair Materials:

Do not touch bonding surfaces on inside of front glass cover (1) with bare fingers. The bonding surfaces must be free of dust, oil, grease, wax, dirt residues and other adhesive components, otherwise the adhesive force of the glued connection is impaired.

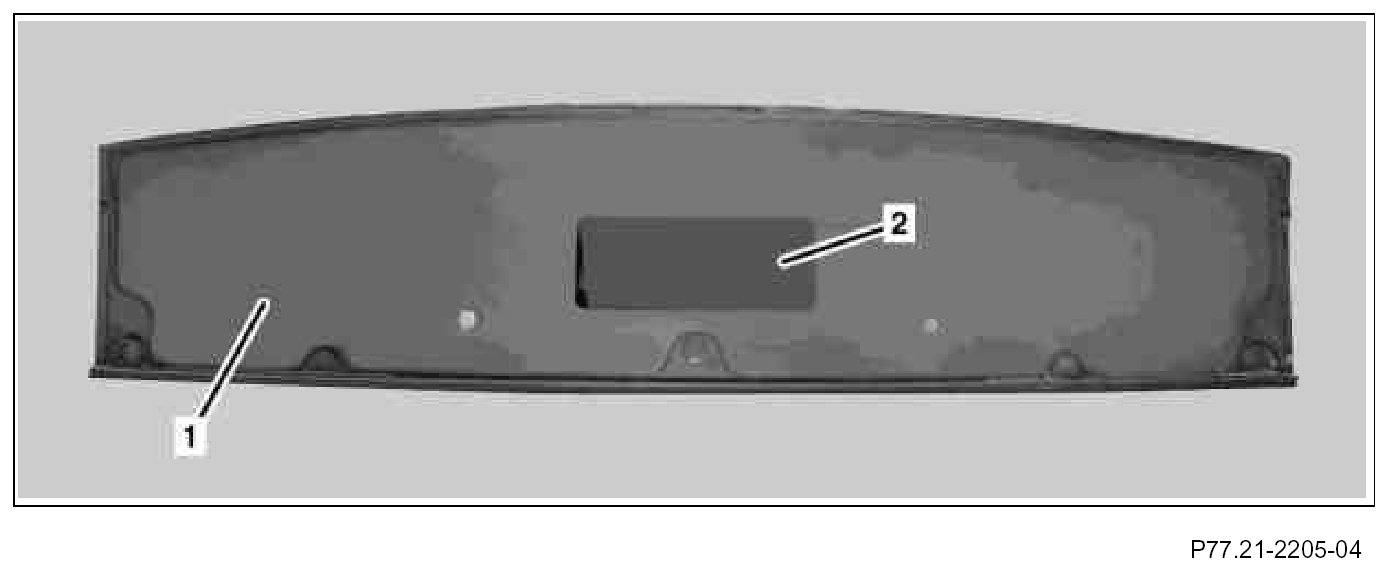

1. Check front glass cover (1) for damage.
2. Install cup suction tool on outer side of front glass cover (1) and lay front glass cover (1) down to suitable subsurface with inside pointing upward

Cup suction tool

3. Apply cleaner with part of cleaning cloth to bonding surfaces on inside of front glass cover (1) and wipe with remaining cleaning cloth.

Allow cleaner to dry completely. Use cleaning cloth from repair kit.

4. Uniformly apply primer uniformly to bonding surfaces on inside of front glass cover (1).

Observe processing instructions for primer to prevent adhesion problems with the adhesive material when installing the window.

Do not apply primer to uncoated glass field (2). This primer layer remains visible after installation.
