AZ82.20-P-0001CWA Retrofit Illuminated Door Sill Molding




AZ82.20-P-0001CWA Retrofit Illuminated Door Sill Molding
MODEL 204.0## /2## 1# up to 28.2.11

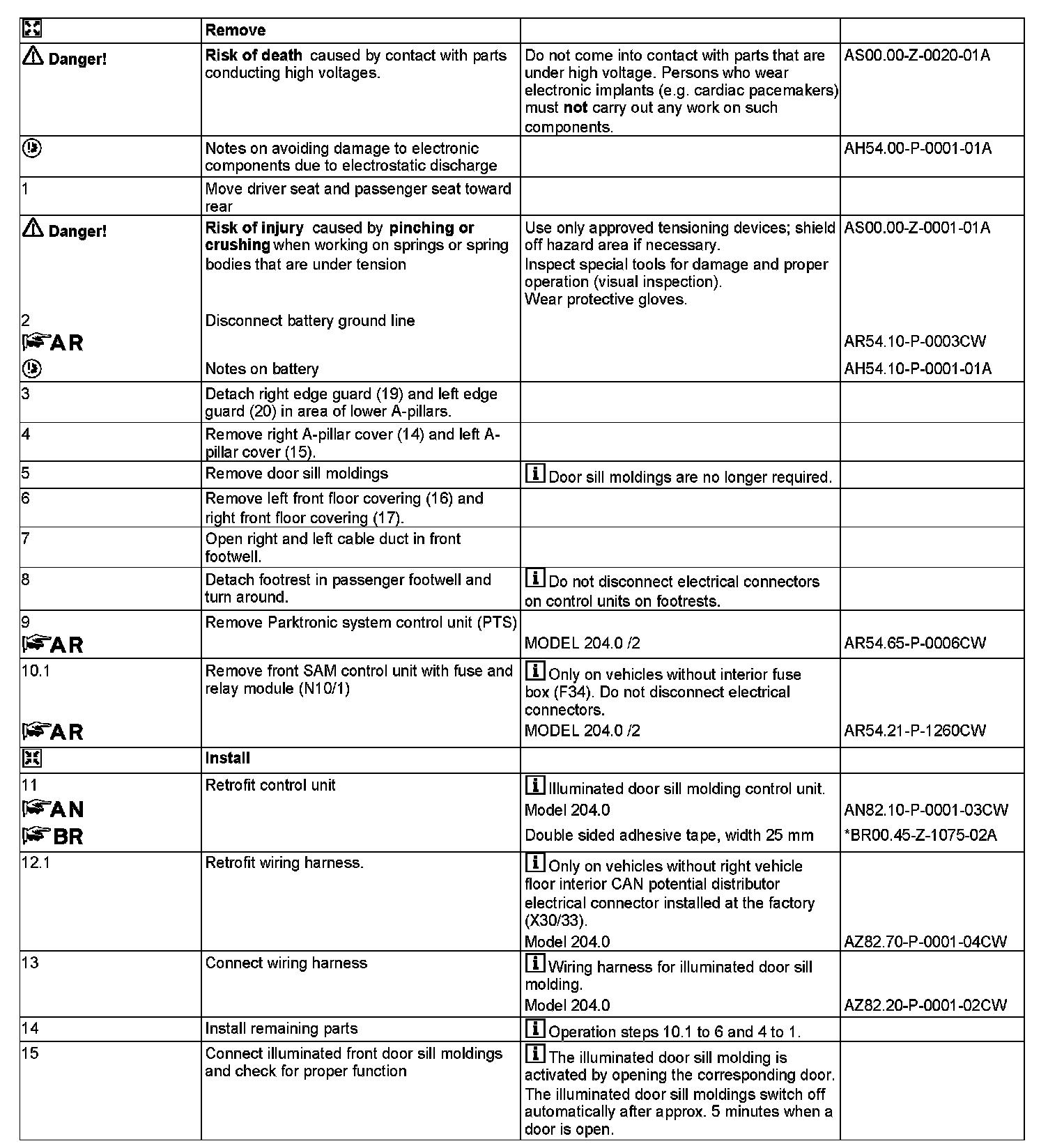

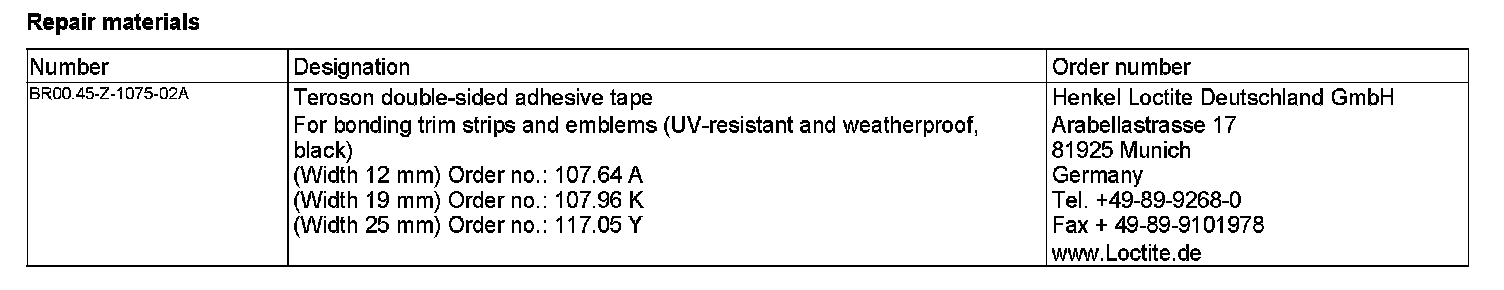

Installation of AMG door sill, 2-fold





Shown on model 204.0
13 Cover
F34 Interior fuse box
N10/1 Front SAM control unit with fuse and relay module
X30/33 Right vehicle floor interior CAN voltage distributor electrical connector





Shown on model 204.0

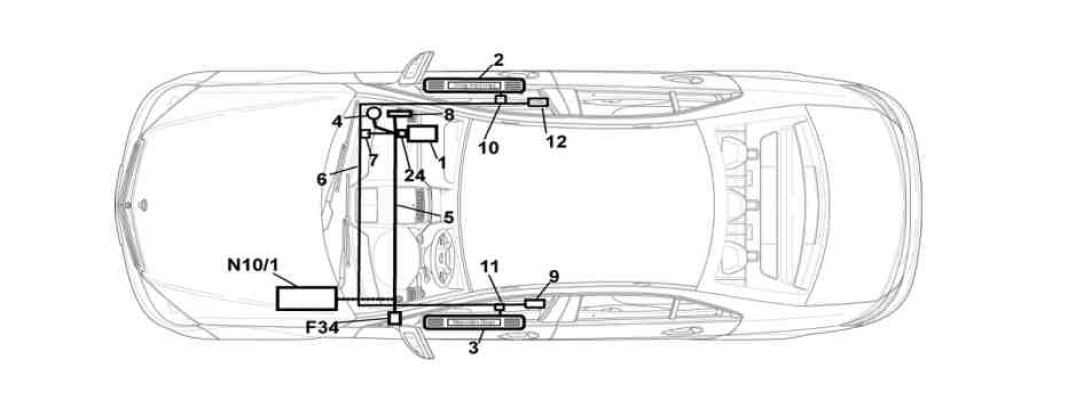

1 Illuminated door sill molding control unit
2 Right illuminated door sill molding
3 Left illuminated door sill molding
4 Ground
5 Supply wiring harness
6 Wiring harness for illuminated door sill
7 Supply connector on illuminated door sill moldings
8 CAN coupling
9 Left converter connector
10 Illuminated right door sill molding connector
11 Illuminated left door sill molding connector
12 Right converter connector
13 Cover
24 Black, 33-pin coupling (illuminated door sill moldings control unit)

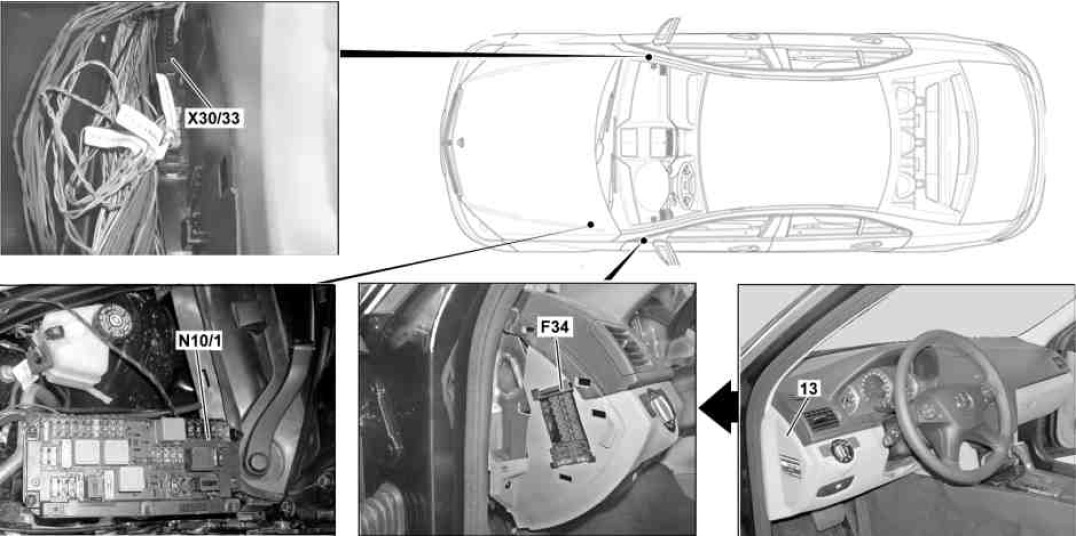

F34 Interior fuse box

To perform operation steps 8 and 11, check whether the interior fuse box (F34) is installed. The interior fuse box (F34) is located below the cover (13) on the dashboard.
To perform operation step 10, check whether the right vehicle floor interior CAN potential distributor electrical connector (X30/33) is installed.
The right vehicle floor interior CAN potential distributor electrical connector (X30/33) is located in the cable duct in the right footwell.

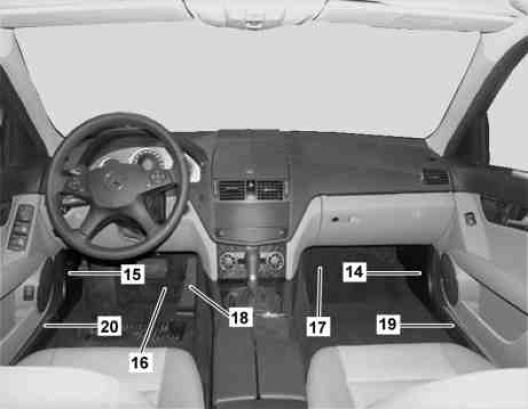

14 Right A-pillar cover
15 Left A-pillar cover
16 Left front floor paneling
17 Right front floor paneling
18 Accelerator pedal
19 Right edge guard
20 Left edge protection
