AZ82.20-P-0001CW Retrofit Illuminated Door Sill Molding



AZ82.20-P-0001CW Retrofit Illuminated Door Sill Molding
- except CODE (990) AMG vehicles
- Double door sill molding, installation

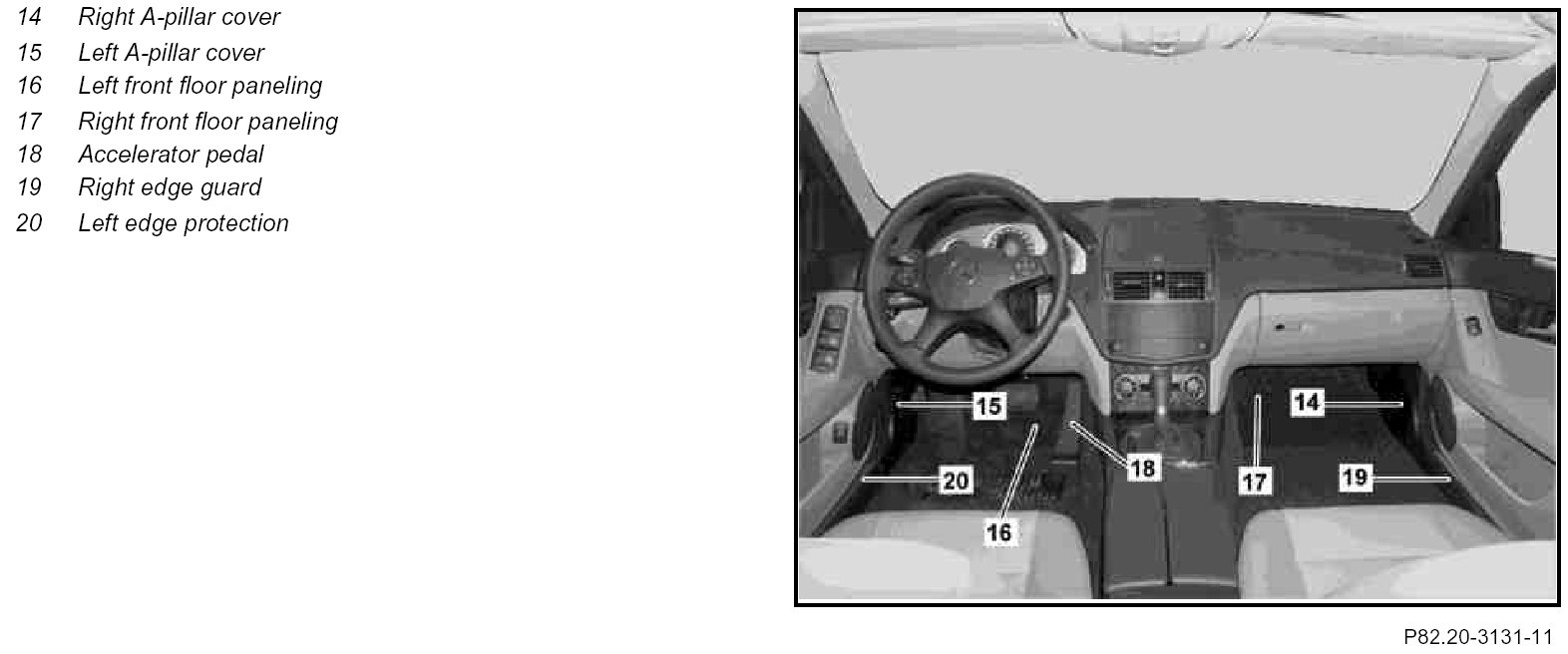

Component Identification:




Component Identification:




Component Identification:

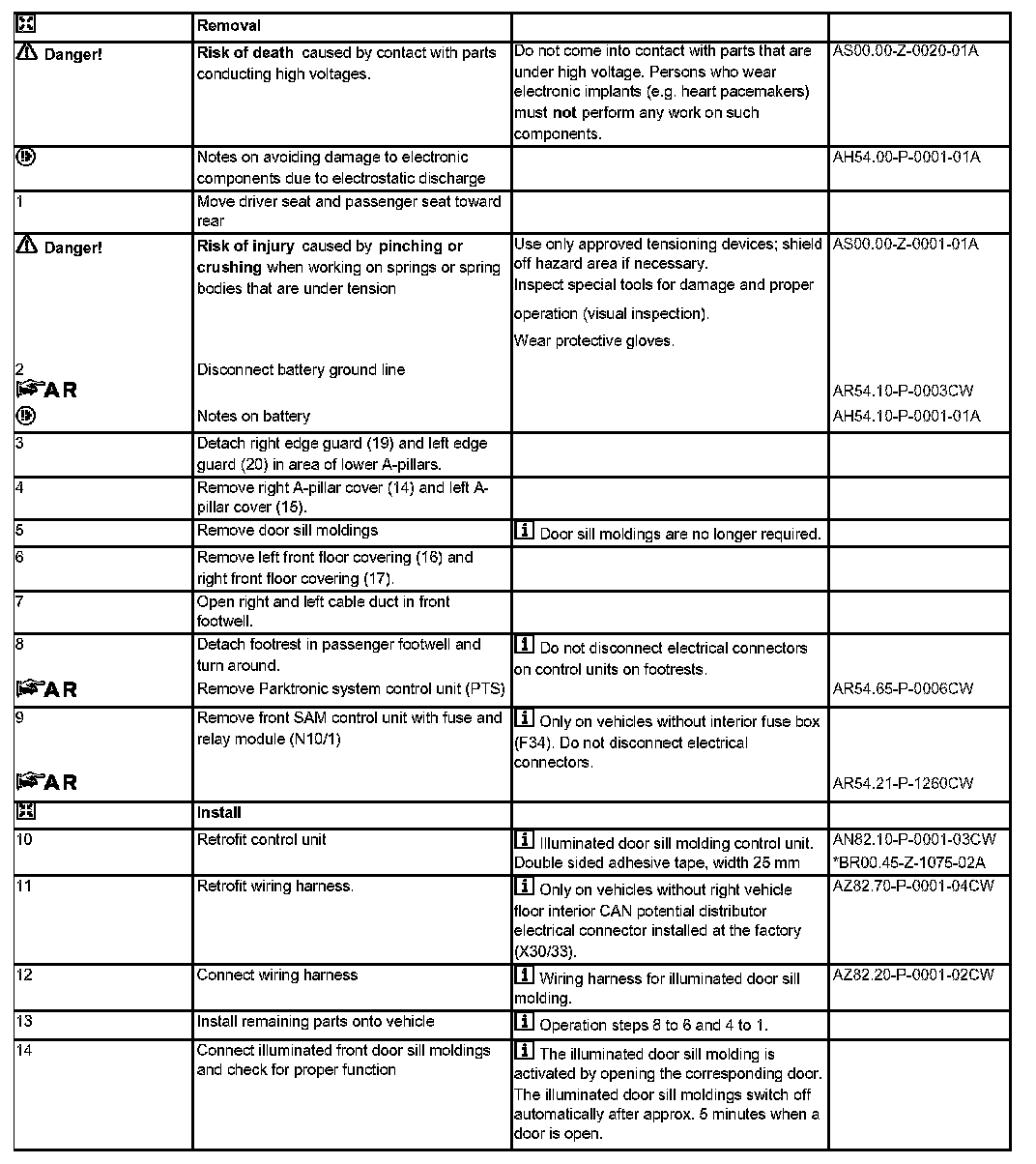

Steps 1 - 14:

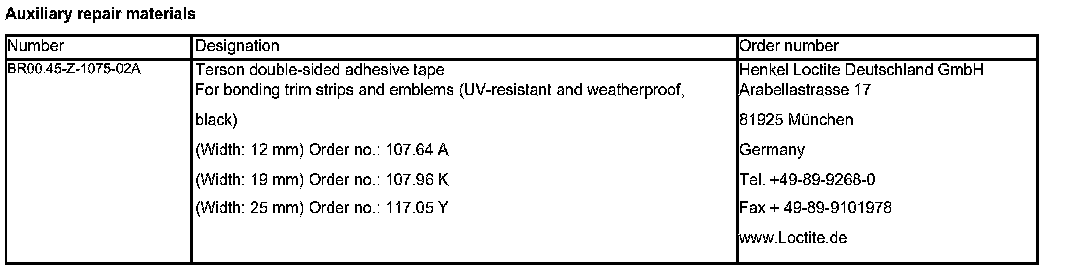

Auxiliary Repair Materials:

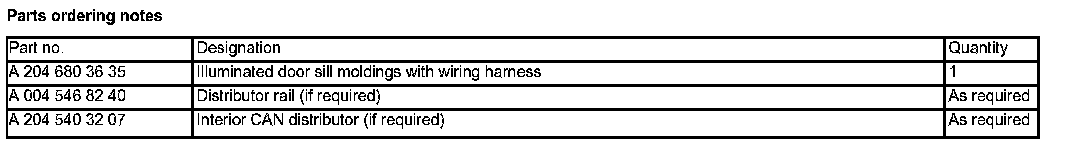

Parts Ordering Notes:
