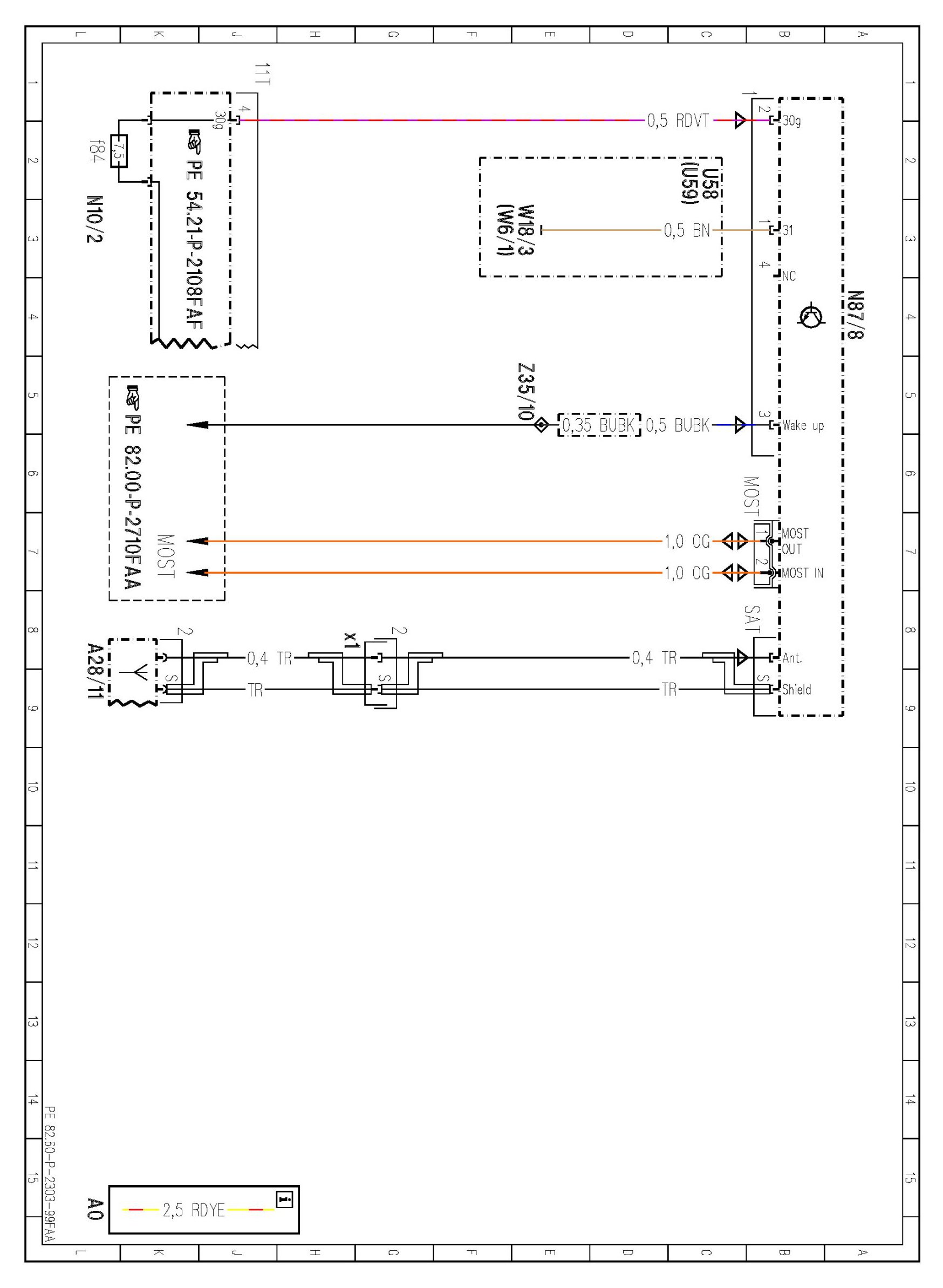

PE82.60-P-2303FAA High Definition Tuner Control Unit

PE82.60-P-2303FAA High Definition Tuner Control Unit

MODEL 204
- as of model year 2010 /YoM 09,
- control unit N87/8

MODEL 204
- up to model year 2011 /YoM 10,
- control unit N87/8



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
