AN82.25-P-2000CW Retrofit Electrical Preinstallation For Rental Vehicles

AN82.25-P-2000CW Retrofit Electrical Preinstallation For Rental Vehicles
- except CODE (498) Japan version
- except CODE (494) USA version
- except CODE (950) AMG sport package
- except CODE (990) AMG vehicles

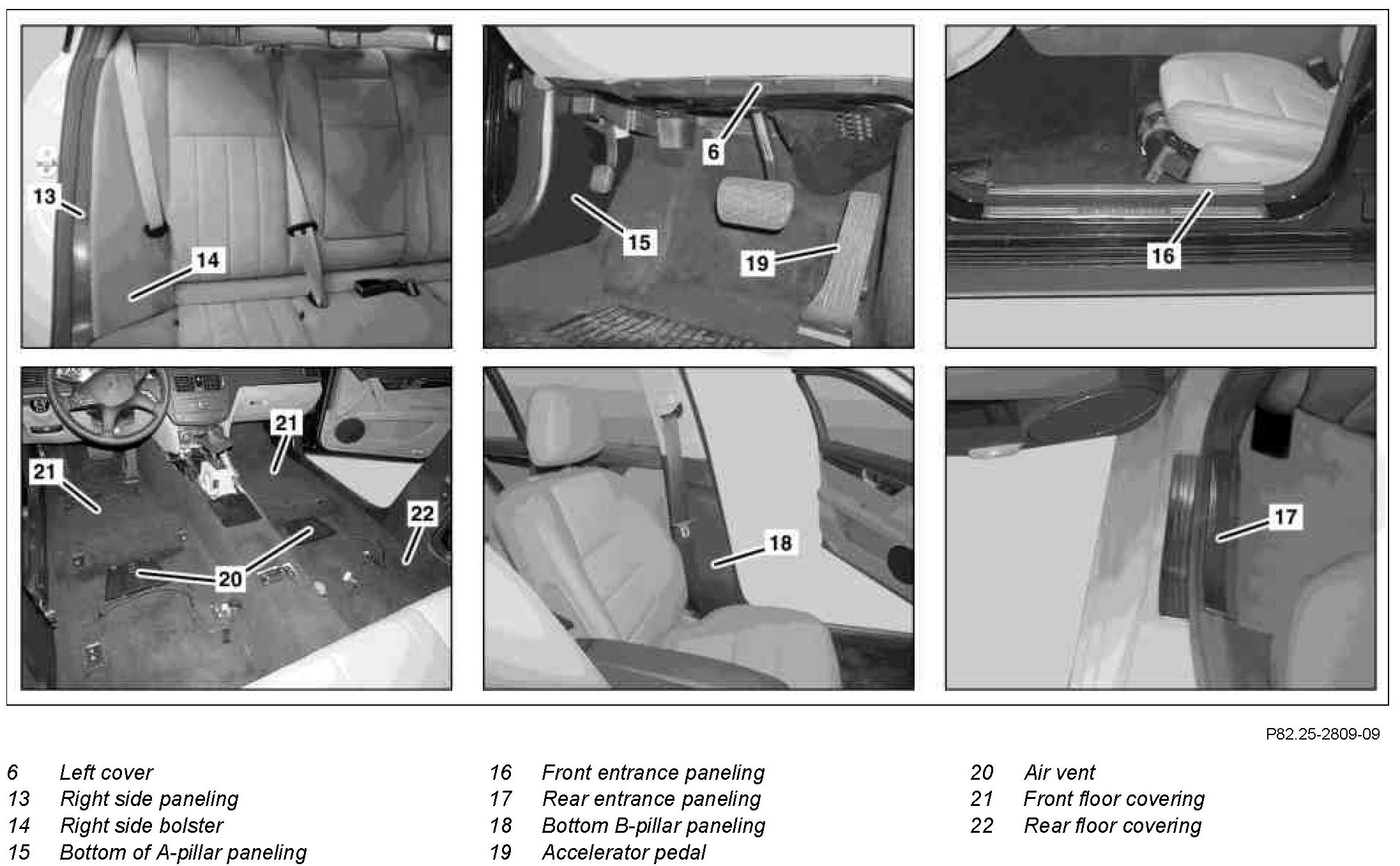

Component Identification:

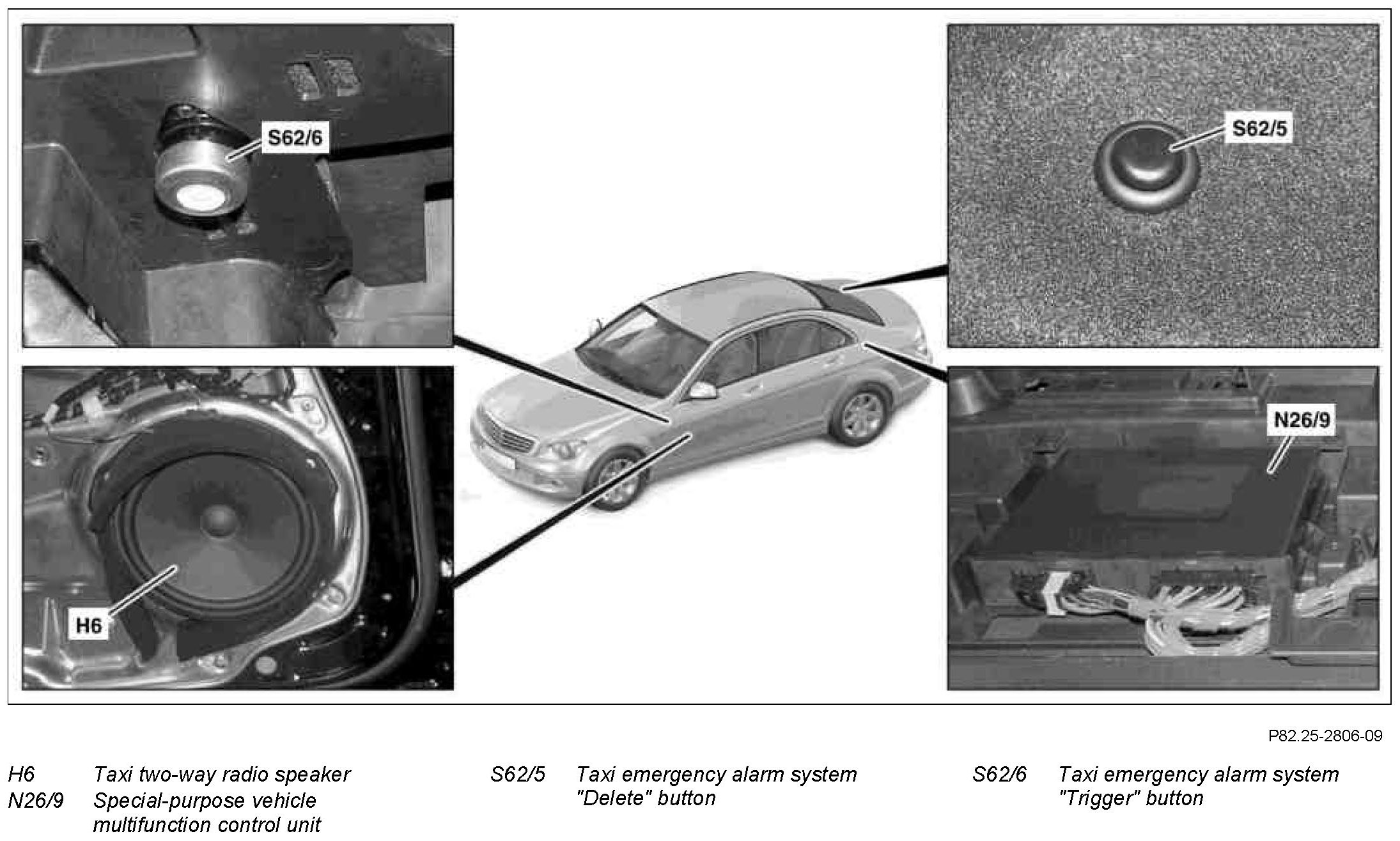

Component Identification:

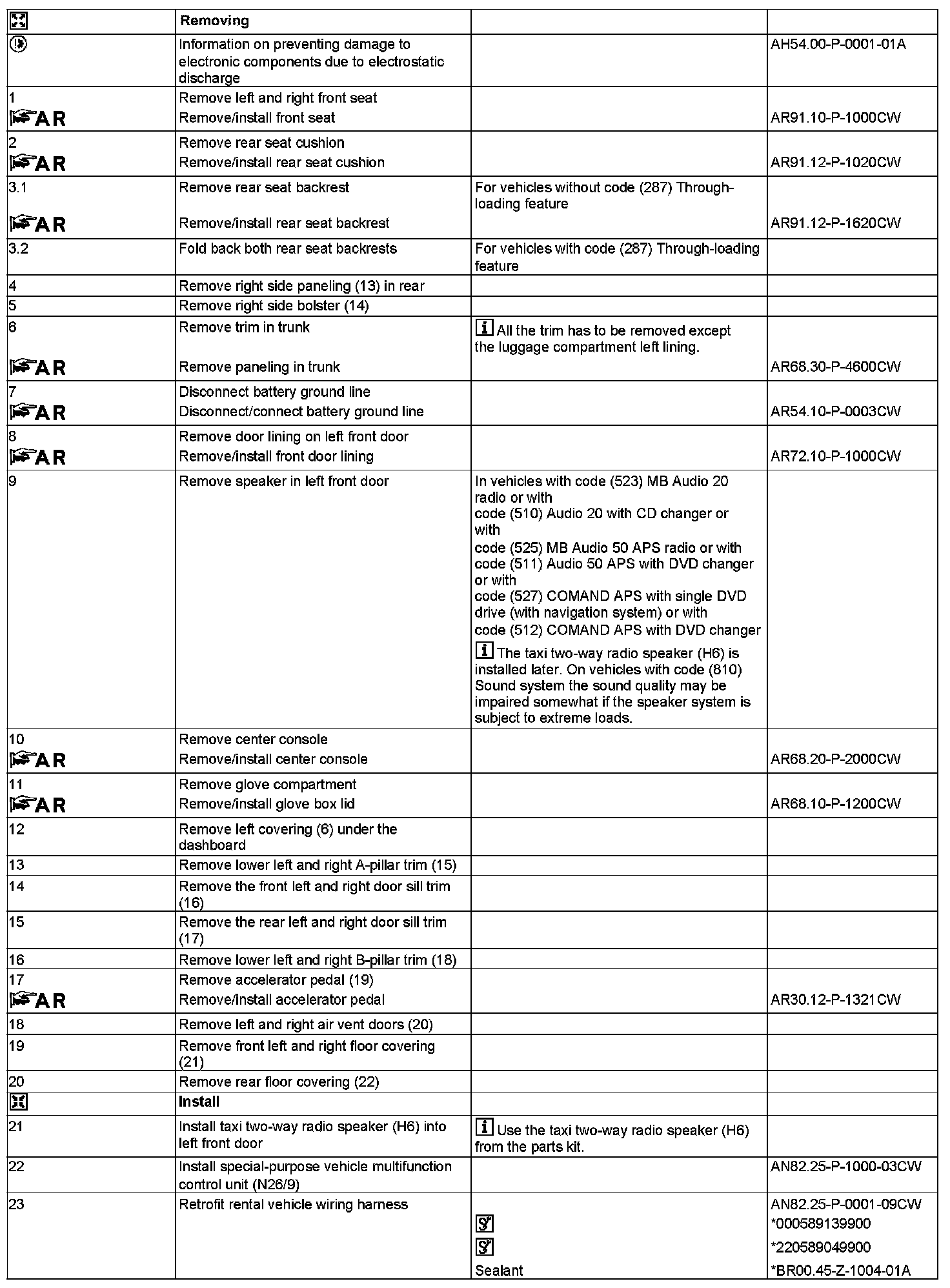

Steps 1 - 23:

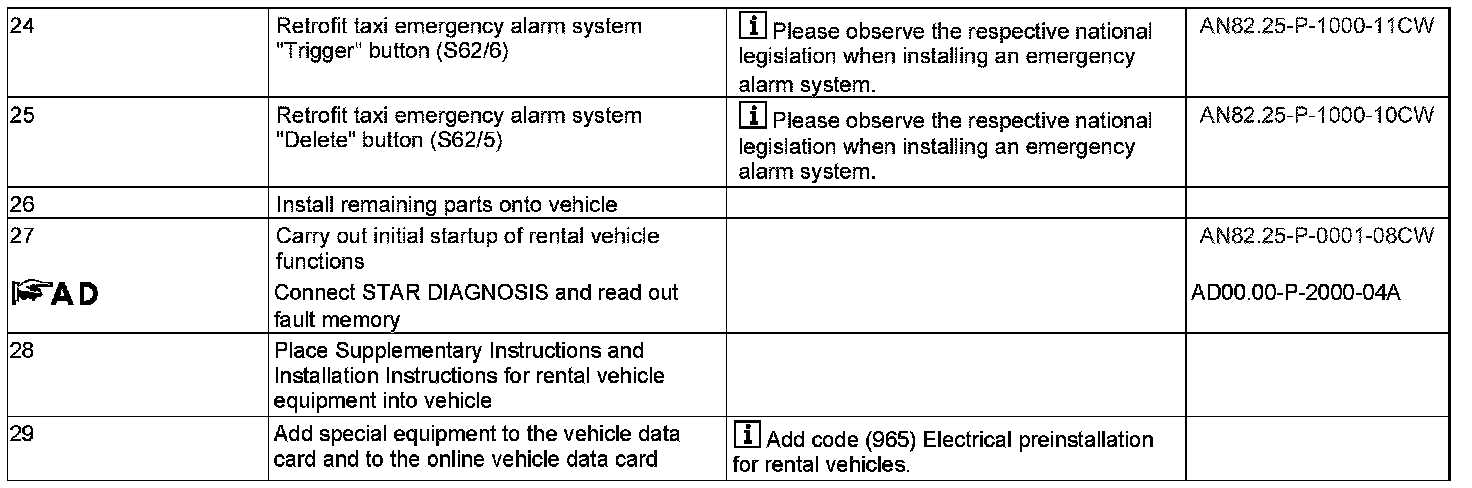

Steps 24 - 29:

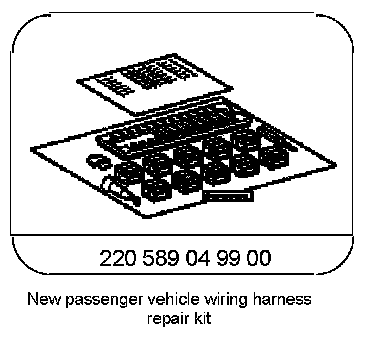

Special Tools:

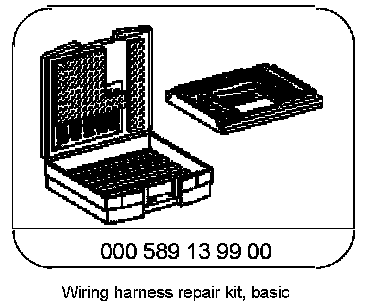

Special Tools:

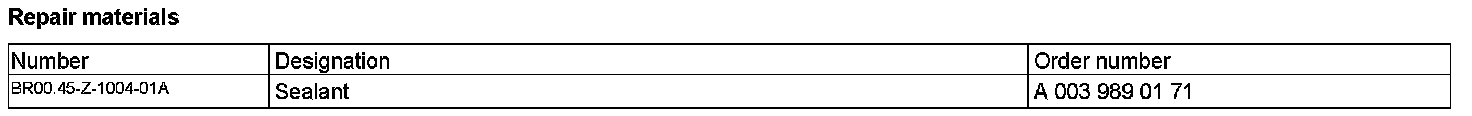

Repair Materials:

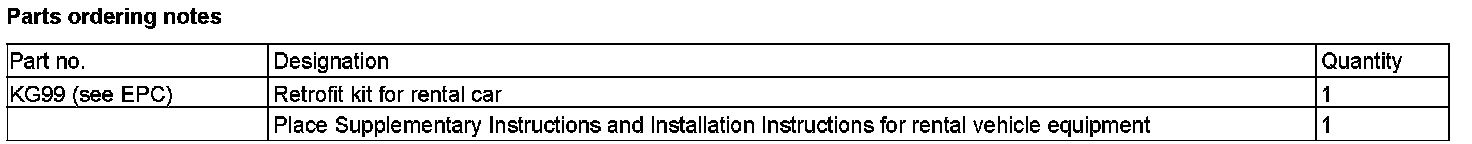

Parts Ordering Notes:
