Global Positioning System Antenna: Service and Repair

AZ82.61-P-0003-02CX Retrofit GPS Antenna
- MODEL 204.0## /2## /3## (except 204.077 /277 /377) 1# Kit with Cable

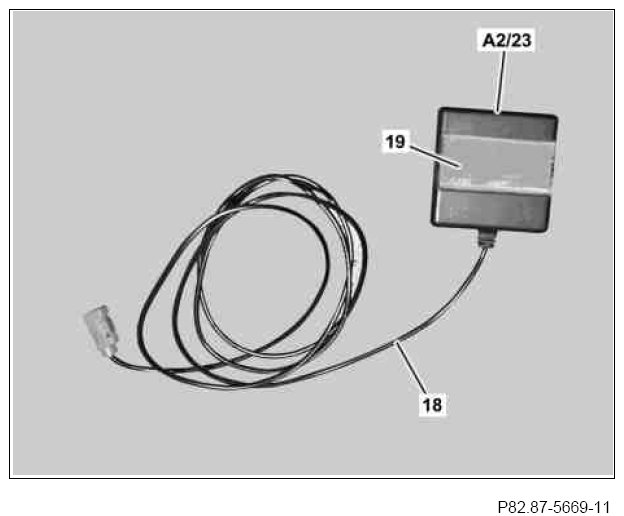

1 Wrap felt tape around Global Positioning System (GPS) antenna wiring harness (18) of GPS antenna (retrofit) (A2/23).
2 Stick double-sided adhesive tape (19) to the underside of the GPS antenna (retrofit) (A2/23).
The upper side of the GPS antenna (retrofit) (A2/23) is denoted by the inscription "TOP".
The area of the GPS antenna (retrofit) (A2/23) to which the tape is going to be affixed must be free of dust and grease.

3 Wrap felt tape around GPS antenna (retrofit) (A2/23).
Do not cover up the Velcro strip (19) with felt tape.

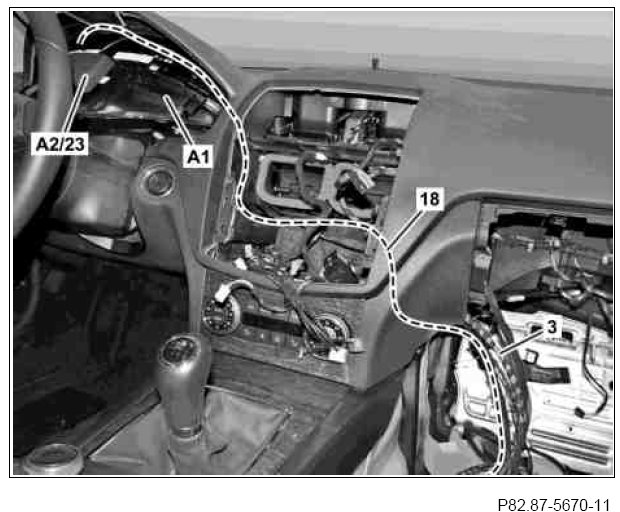

4 Remove protective foil from Velcro strip of GPS antenna (retrofit) (A2/23) and stick GPS antenna (retrofit) (A2/23), as shown, onto the instrument cluster (A1).
Position GPS antenna (retrofit) (A2/23) in center to ensure that installation of the instrument cluster (A1) is not obstructed.

5 Route GPS antenna wiring harness (18) into radio slot.
6 Route GPS antenna wiring harness (18) further into the front passenger footwell to the Universal Media Interface adapter wiring harness (3).
