AZ54.65-P-0001-03CW Install Sensors and Connect



AZ54.65-P-0001-03CW Install Sensors And Connect

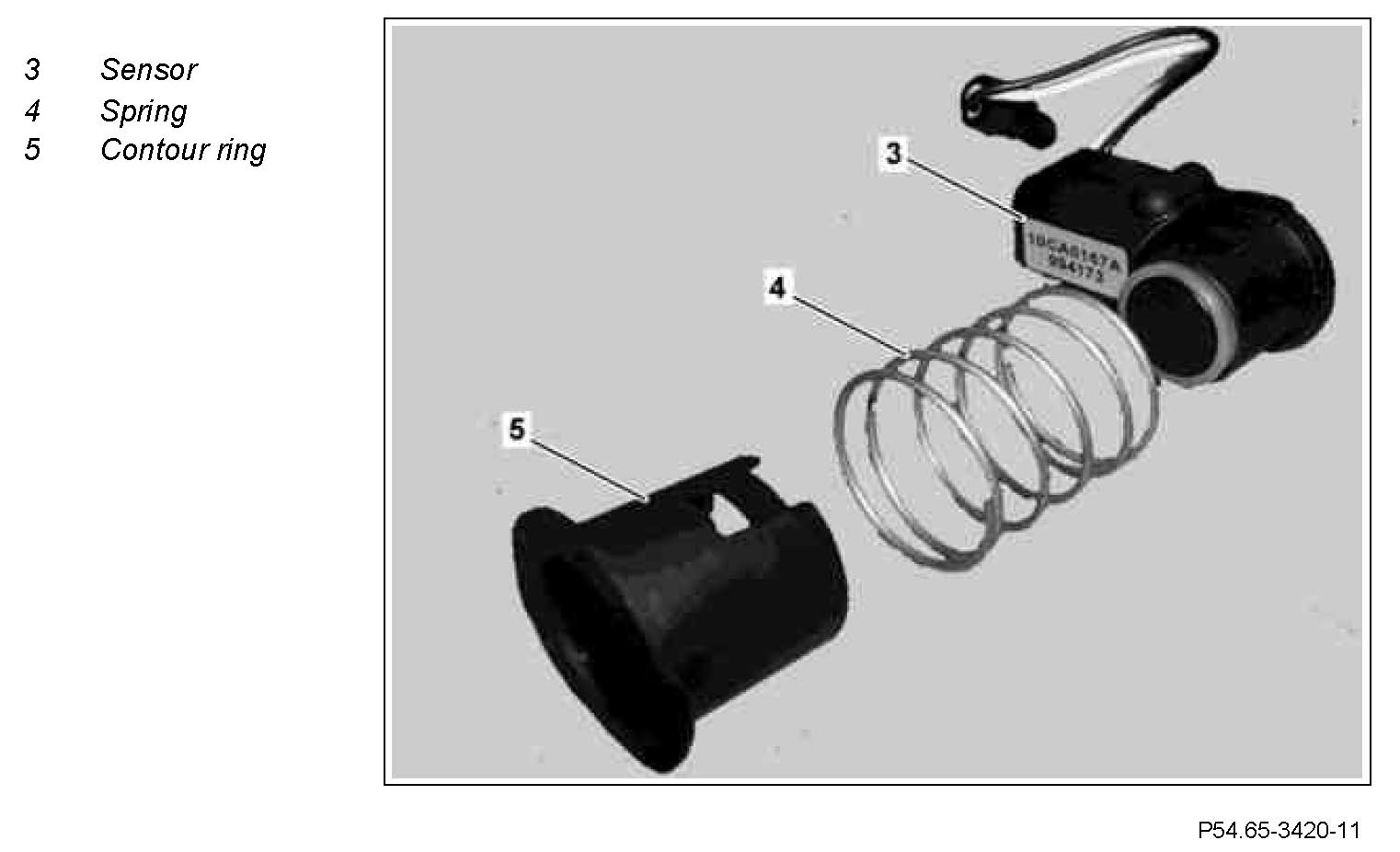

Component Identification:











1. Prepare holes of dia. (A) for the sensors at the positions identified by the plant on the inside of the bumper as per the center of the picture.
2. Prepare the cutouts vertically upwards for the anti-twist lock of the contour rings in the holes of dia. (A) as per the picture.

The cutouts for the anti-twist lock of the contour rings may only be prepared such that the sensors with the anti-twist lock fit in the cutouts with zero clearance and the sensors completely cover the cutout from outside.

a =20 mm







3. Insert contour rings (5) in the holes of the bumper from outside.

The anti-twist locks of the contour rings (5) must be inserted vertically upwards in the cutouts of the bumper.

4. Position springs (4) on contour rings (5) and clip sensors (3) into the contour rings (5).

The sensors (3) are contacted on the quickpark wiring harness later on when installing the bumper.
