AN82.70-P-0001-02CW Retrofit Phone Bracket

AN82.70-P-0001-02CW Retrofit Phone Bracket
- with CODE (523) MB Audio 20 radio
- with CODE (510) Audio 20 with CD changer
- with CODE (525) MB Audio 50 APS radio


1 Fit 3-pin black connector (2) of wiring harness (1) to mobile phone cradle (A34/15) (arrow A).
2 Clip mobile phone cradle (A34/15) into bracket (4).

The antenna line (3) and the wiring harness (1) must be led out of the bracket (4) towards the rear.

3 Screw mobile phone cradle (A34/15) to bracket (4) using the screw/bolt (5).

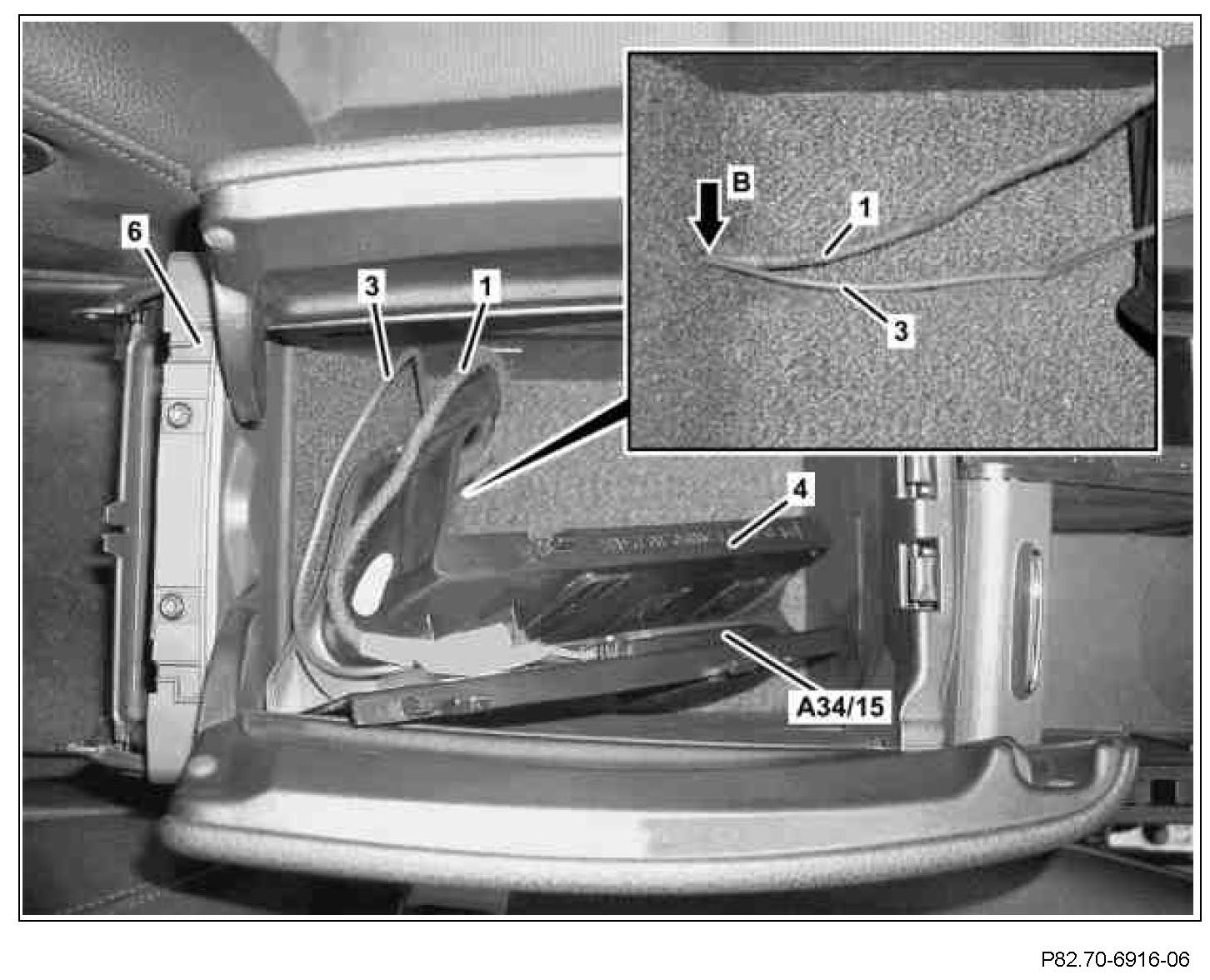

4 Place bracket (4) with mobile phone cradle (A34/15) in stowage compartment of center console (6).
5 Route antenna line (3) and wiring harness (1) downwards through opening (arrow B) in center console (6).

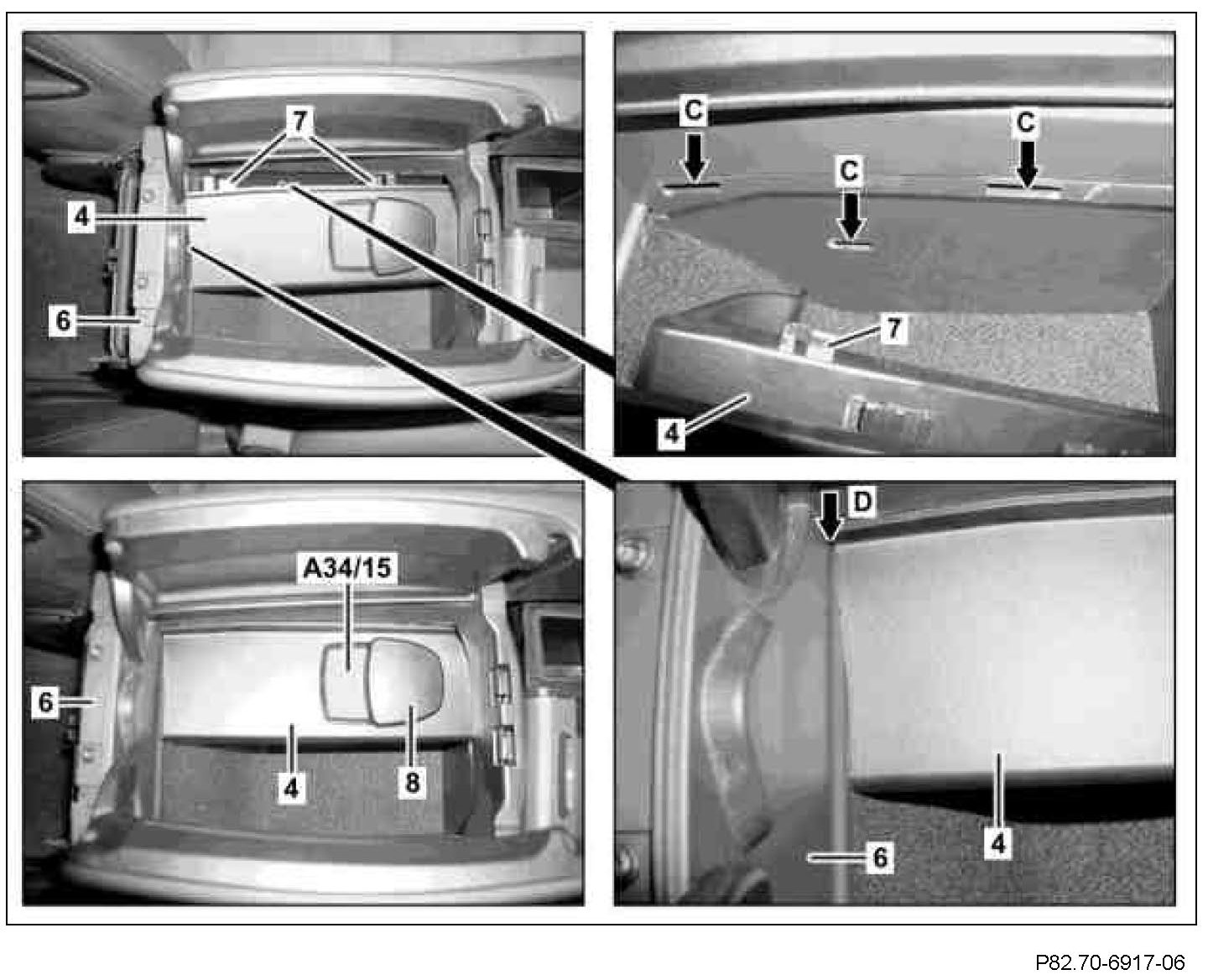

6 Position bracket (4) in center console (6) and clip catch hooks (7) into notches (arrows C) in center console (6).

Ensure that the antenna line and the wiring harness are not damaged by trapping or crushing.
The bracket (4) must be positioned in the rear area (arrow D) of the center console (6) as shown.

7 Clip cover (8) to mobile phone cradle (A34/15).

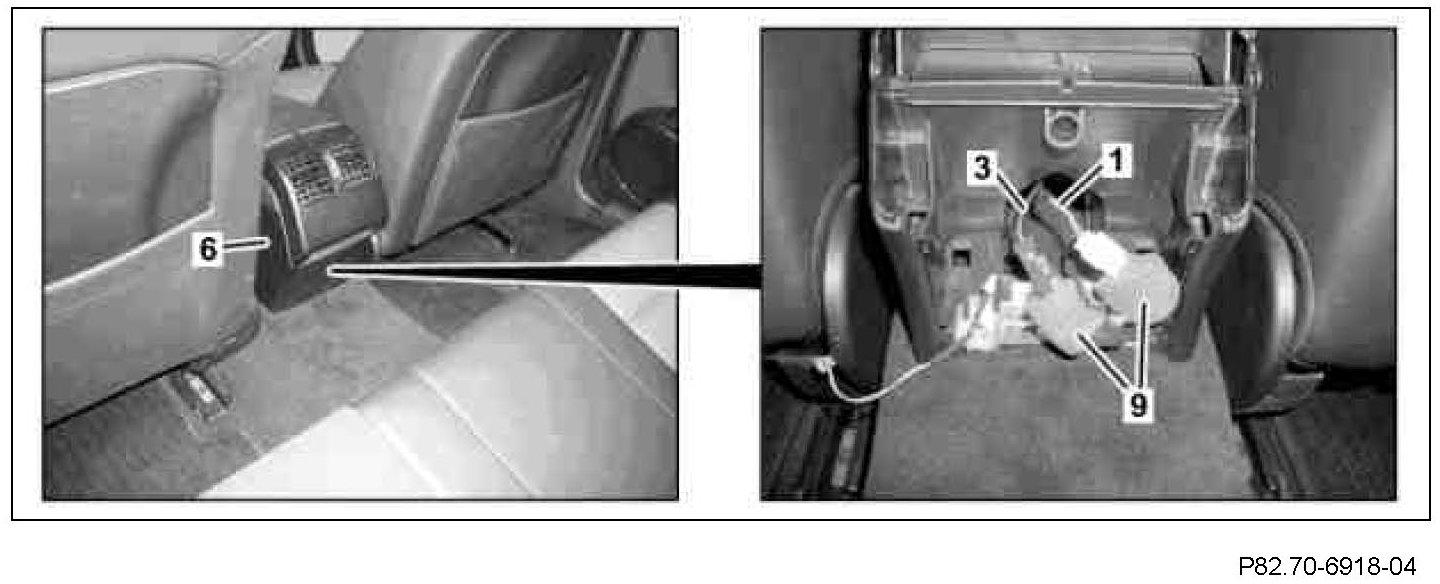

8 Lead antenna line (3) and wiring harness (1) out of rear of center console (6).
9 Connect red connector of antenna line (3) to red connector of previously installed antenna line and slide foam material sheath (9) over the connection.
10 Connect white 3-pin connector of wiring harness (1) to white 3-pin connector of previously installed power supply wiring harness and slide foam material sheath (9) over the connection.
