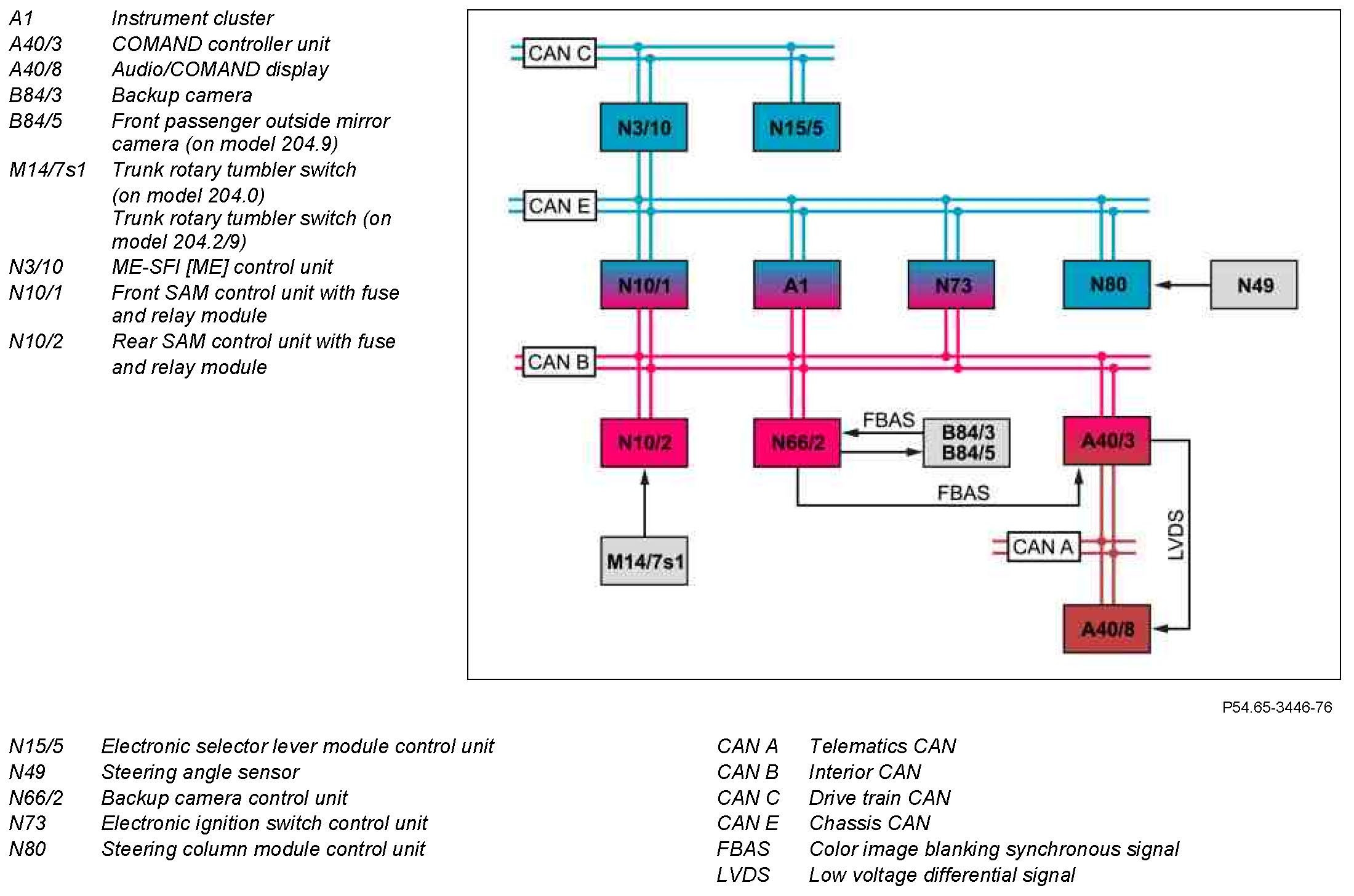

GF54.65-P-0005-02CEJ Reversing Camera (RFK), Block Diagram



GF54.65-P-0005-02CEJ Reversing Camera (RFK), Block Diagram
- with CODE (218) Backup camera



Component Identification:
