SLK 300 (171.454) V6-3.0L (272.942)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Motor
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR82.30-P-6800V Remove/install
Wiper Motor
Component Identification:

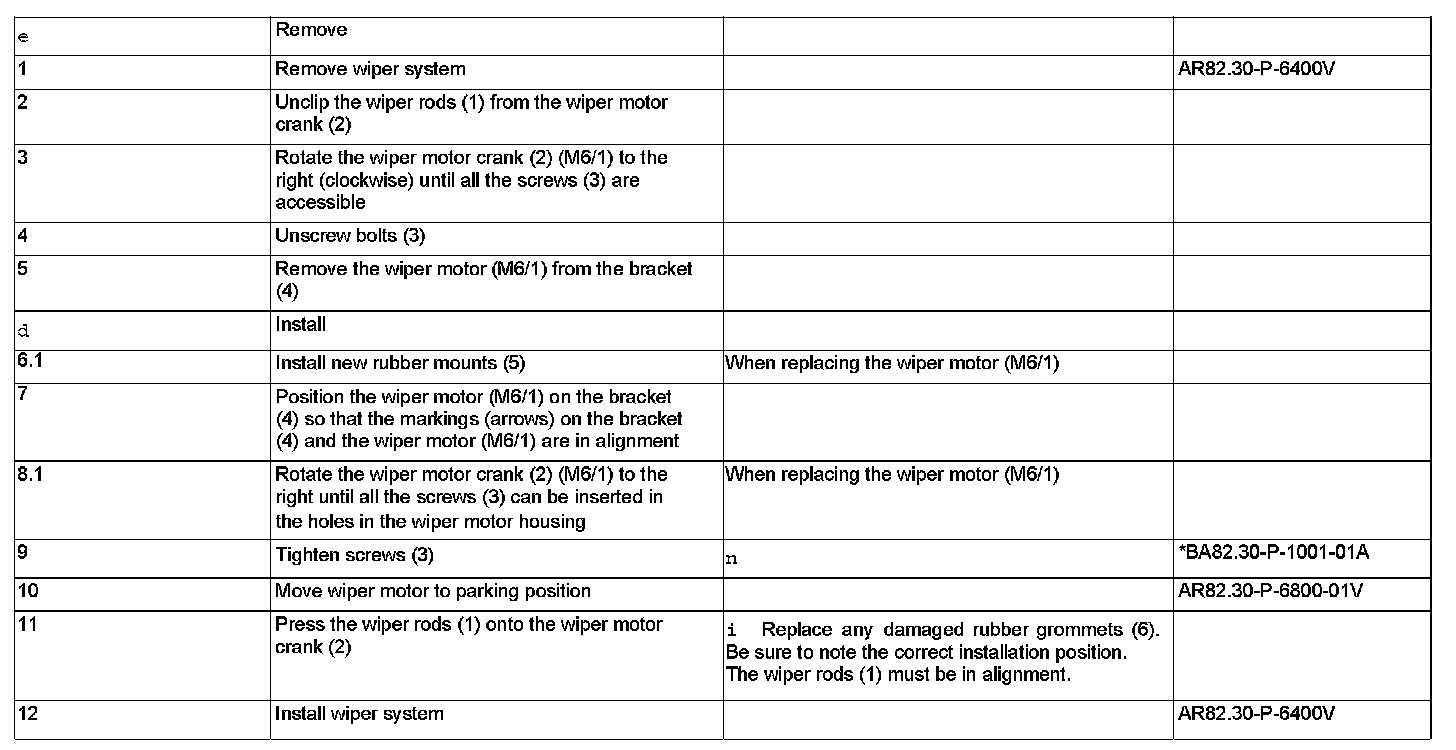

Steps 1 - 12:
Windshield Wiper:
