Procedures

AR82.30-P-6800-01V Move Wiper Motor To Parking Position

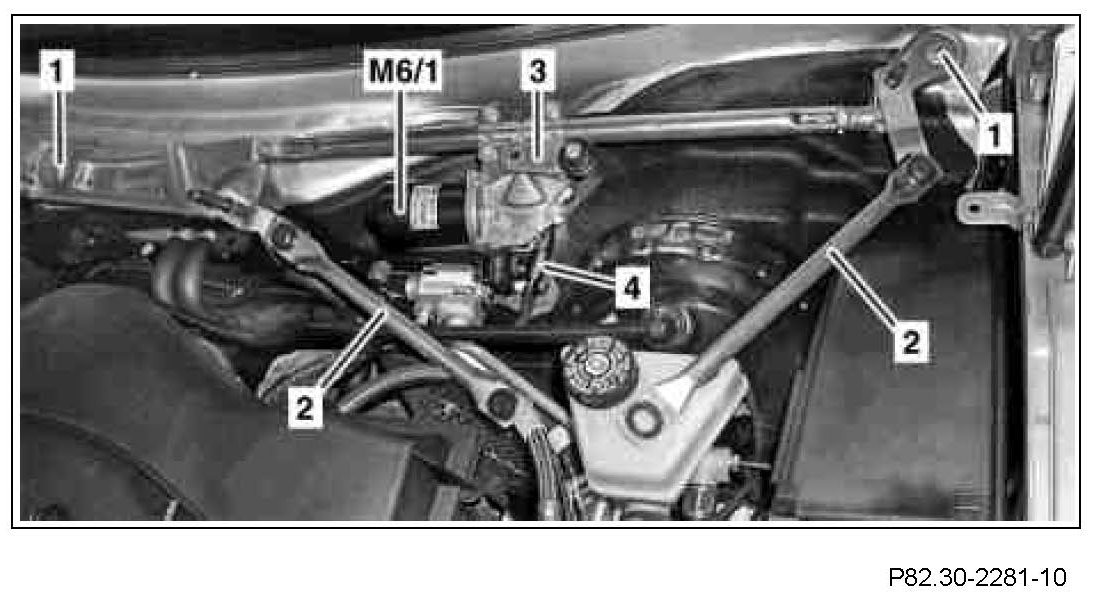

1 Locate the wiper system in position with the nuts (1).
2 Position the wiper rods (2) so they are outside of the rotating radius of the wiper motor crank (3).
3 Plug the electrical connector (4) into the wiper motor (M6/1).
4 Switch on the ignition, turn the combination switch to position 2 and turn it back to position 0. Switch off the ignition as soon as the wiper motor (M6/1) stops in park position.
