GF82.15-P-2161RC HCS Pump, Component Description

GF82.15-P-2161RC HCS Pump, Component Description
- with CODE (600) Headlamp cleaning system

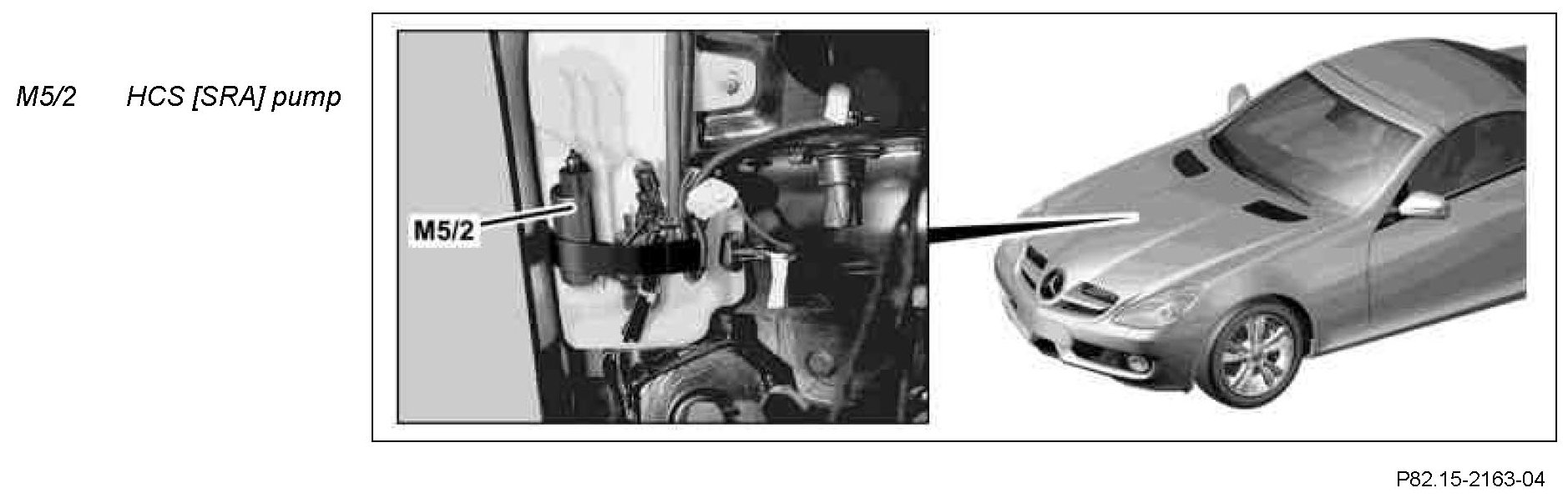

Component Identification:

Location
The HCS pump is located at the washer fluid reservoir in the right front wheelhouse.

Task
The HCS [SRA] pump delivers window washer fluid to the telescopic nozzles of the headlamp cleaning system (HCS [SRA]) when requested by the driver SAM control unit with fuse and relay module (N10/1).
