Rear Door Window Motor: Description and Operation




GF72.29-P-6032RC Rear Power Window Motor, Component Description

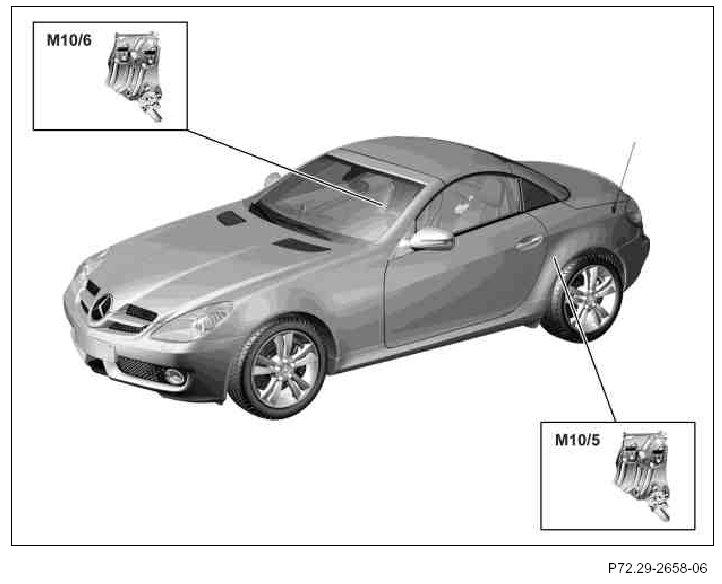

M10/5 Left rear power window motor
M10/6 Right rear power window motor

Location
The left rear power window motor (M10/5) is located below the left rear side paneling. The right rear power window motor (M10/6) is located below the right rear side paneling.

Task
Raising or lowering rear side windows.

Design
The left rear power window motor and right rear power window motor are DC motors which turn left and right depending on the polarity of the armature voltage.

The motors are actuated directly by the convertible top mechanism control unit (N52).
