Home >> Mercedes Benz >> 2009 >> SLK 300 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Shifter M/T >> Service and Repair >> Removal and Replacement >> AR68.20-P-2310V Remove/Install Gearshift Lever Cover

AR68.20-P-2310V Remove/Install Gearshift Lever Cover

AR68.20-P-2310V Remove/install Gearshift Lever Cover
- with TRANSMISSION 716.6

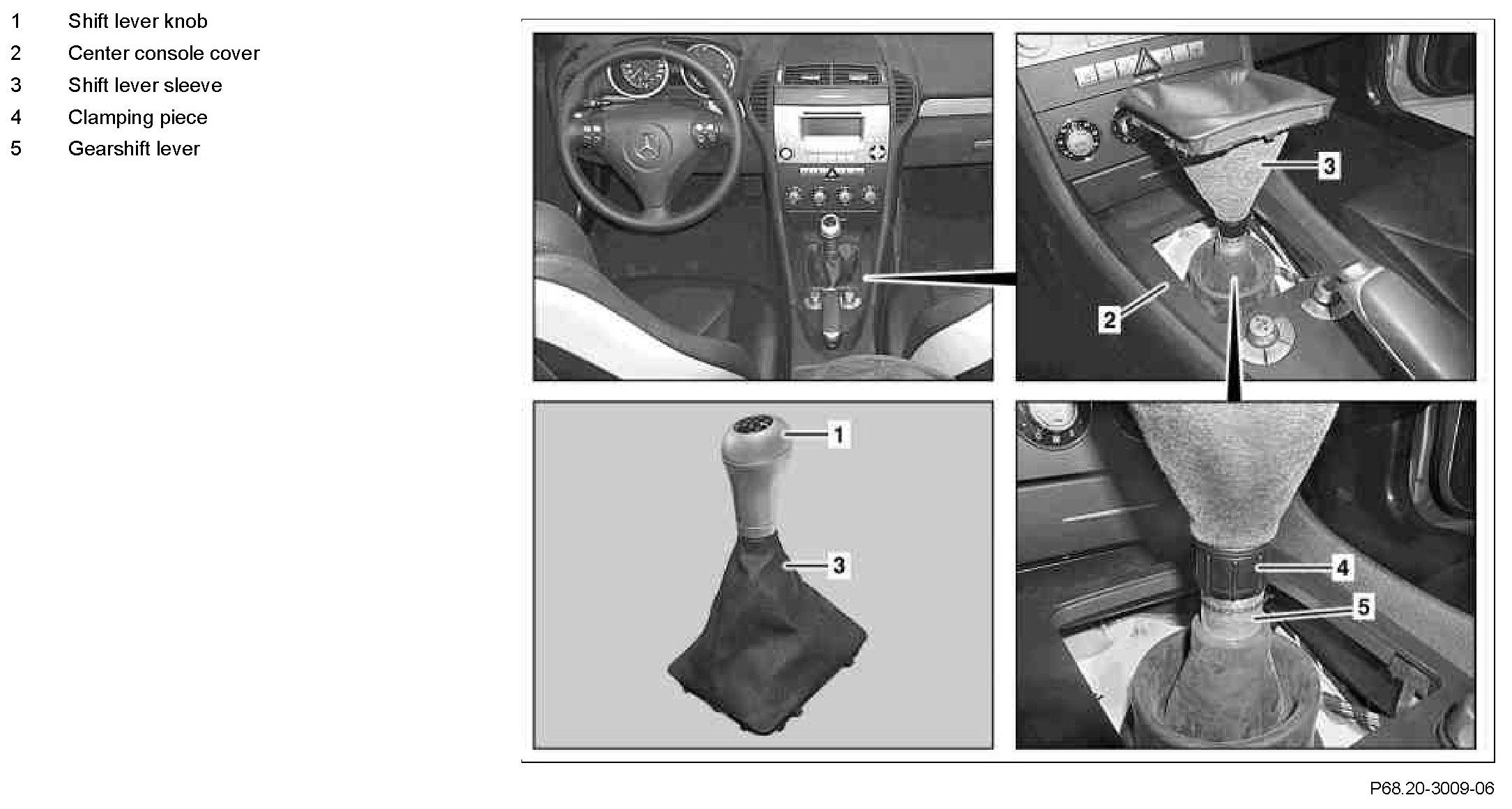

Component Identification:

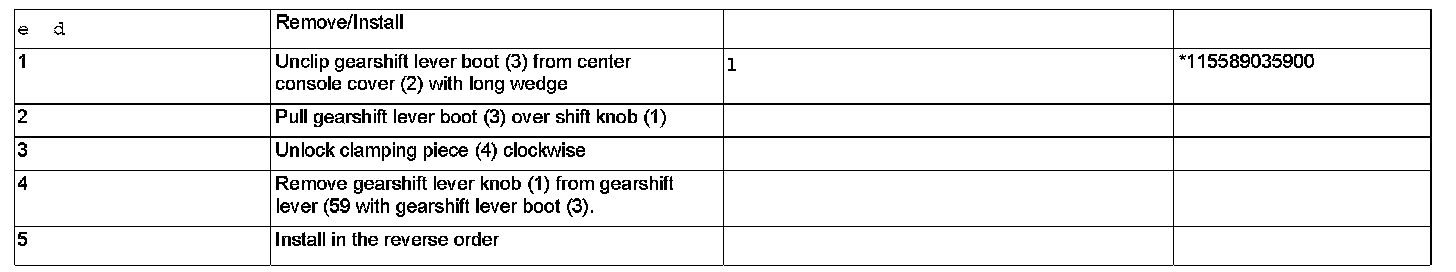

Steps 1 - 5:

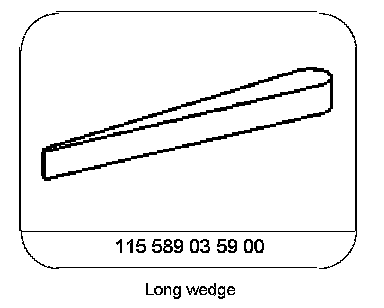

Special Tools:
