Home >> Mercedes Benz >> 2009 >> SLK 300 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Shifter M/T >> Service and Repair >> Removal and Replacement >> AR26.60-P-0600V Remove/Install Floor Selector

AR26.60-P-0600V Remove/Install Floor Selector



AR26.60-P-0600V Remove/Install Floor Selector
- with Transmission 716.6

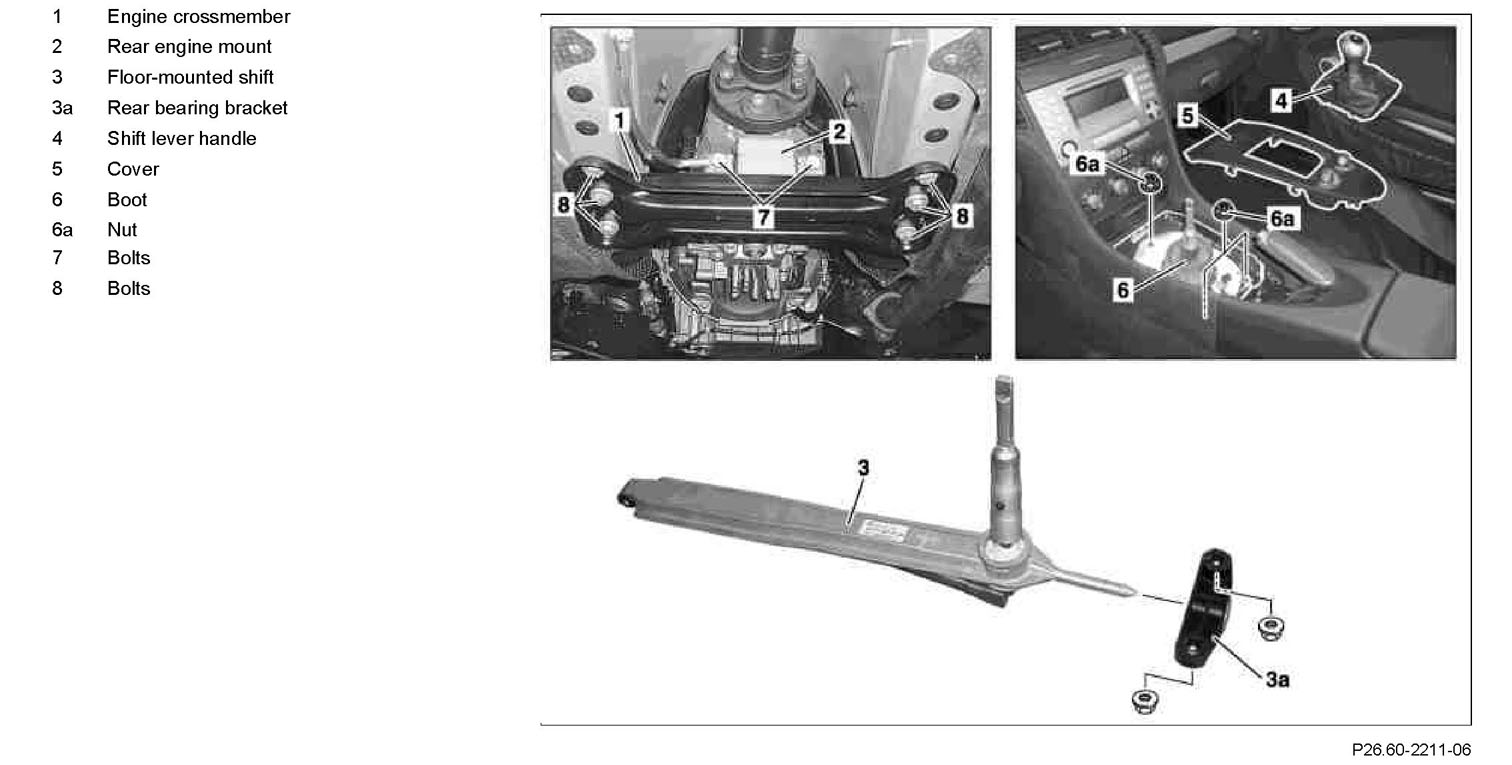

Component Identification:

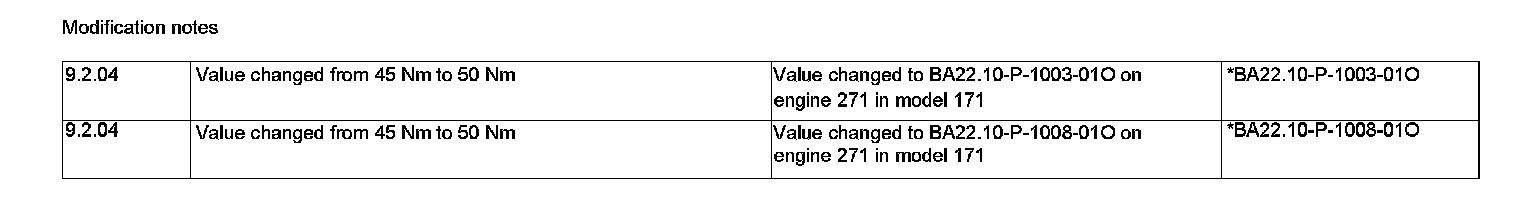

Modification Notes:

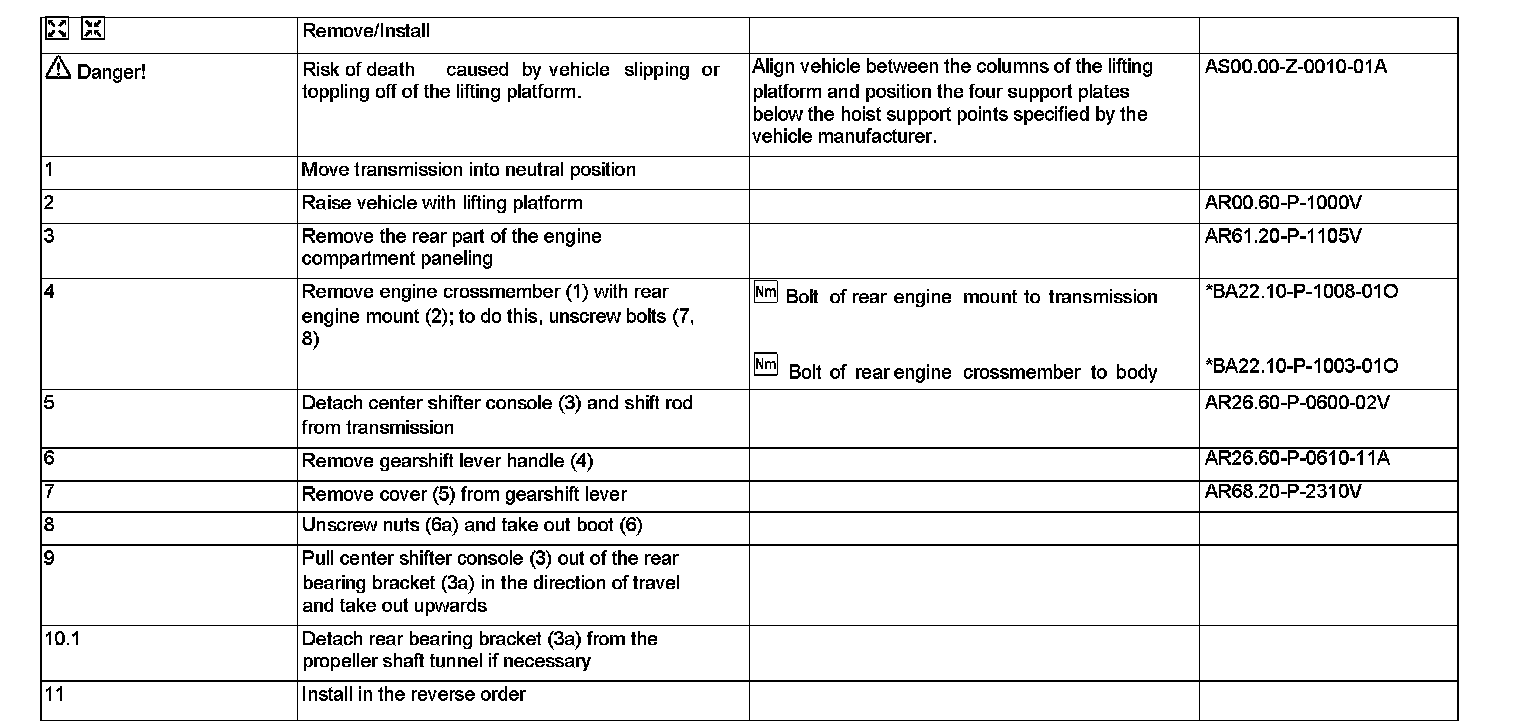

Steps 1 - 11:

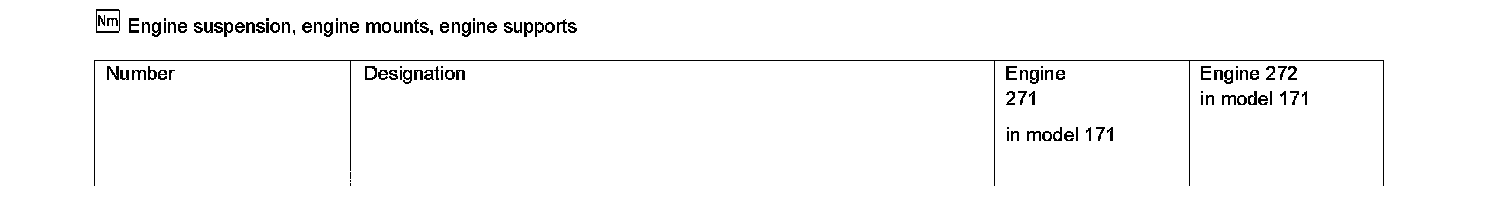

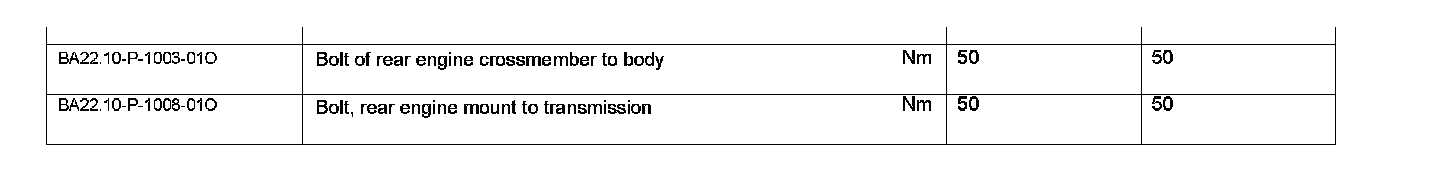

Engine Suspension, Engine Mounts, Engine Supports:




Engine Suspension, Engine Mounts, Engine Supports:
