AR27.60-P-0122VA Remove/Install Ignition Lock Control Cable
AR27.60-P-0122VA Remove/Install Ignition Lock Control Cable
AR27.60-P-0122VA Remove/install ignition lock control cable

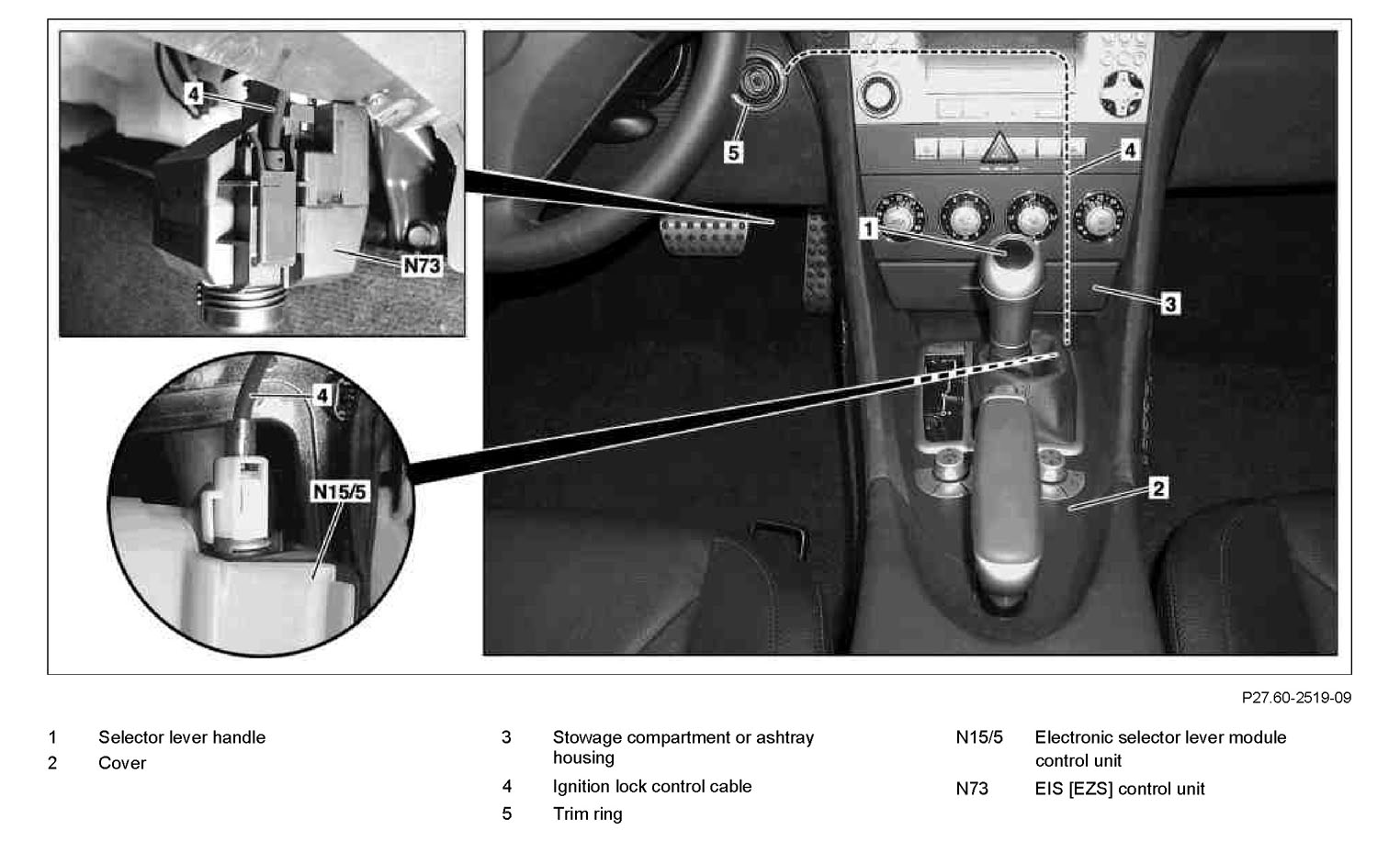

Component Identification:

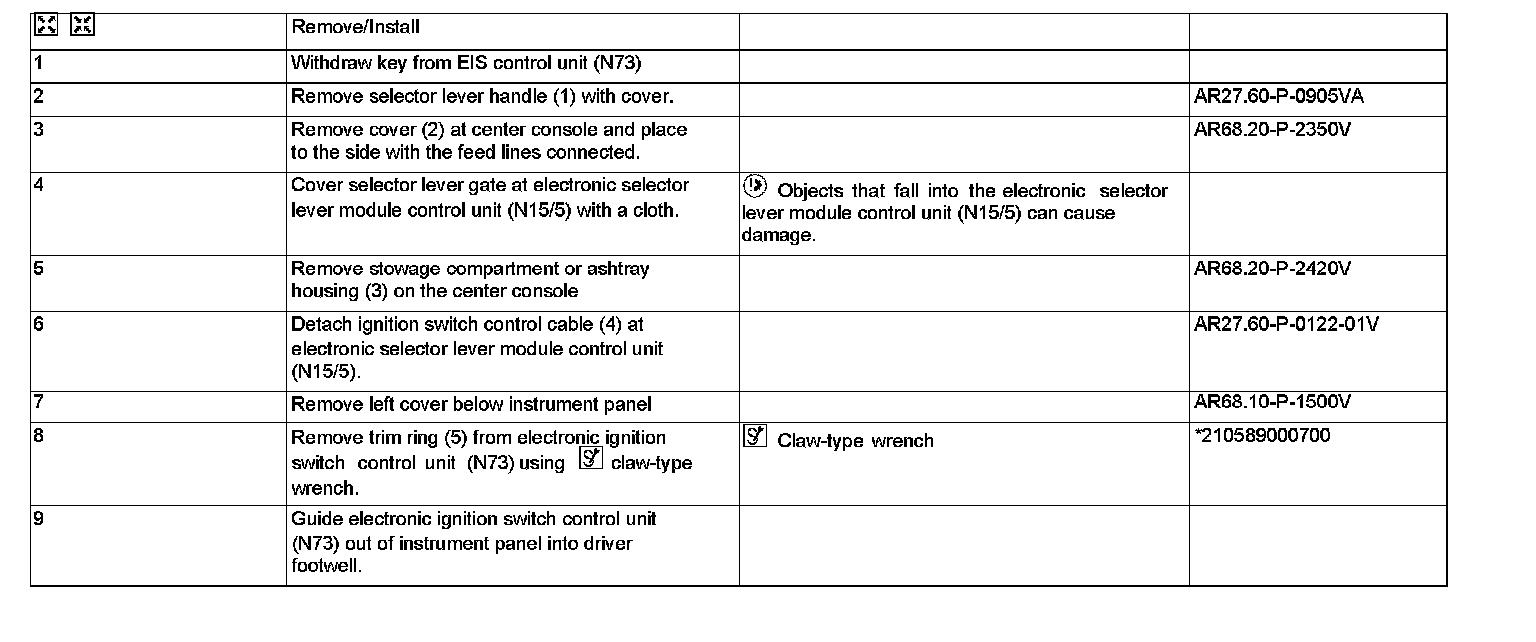

Steps 1 - 9:
Steps 10 - 12:

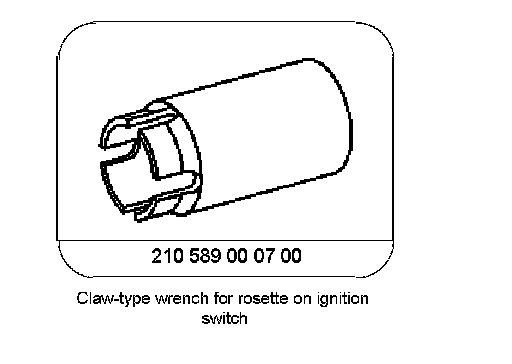

Special Tools:
