Washer Fluid Level Switch: Description and Operation

GF82.35-P-5006RC Switch For Washer Fluid Indicator, Component Description

MODEL 171.4 as of model year 09/YoM 08 model refinement package

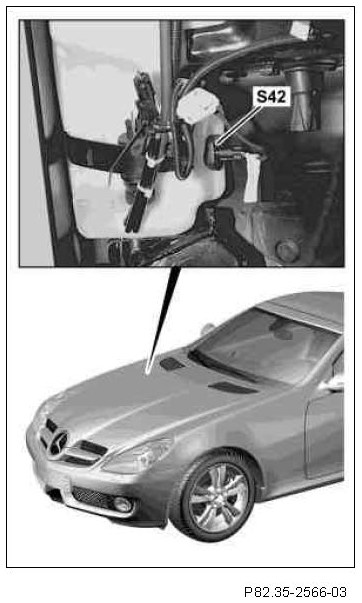

S42 Windshield washer fluid level indicator switch

Location
The windshield washer system water level control switch is located at the bottom in the washer fluid reservoir of the windshield washer system.

Task
The windshield washer system water level monitoring switch registers the fill level of the washer fluid reservoir and is read in by the driver-side SAM control unit with fuse and relay module (N10/1).
