FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2009
>>
SLK 300 (171.454) V6-3.0L (272.942)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Backup Lamp Switch
>>
Locations
Backup Lamp Switch: Locations
Backup Lamp Switch

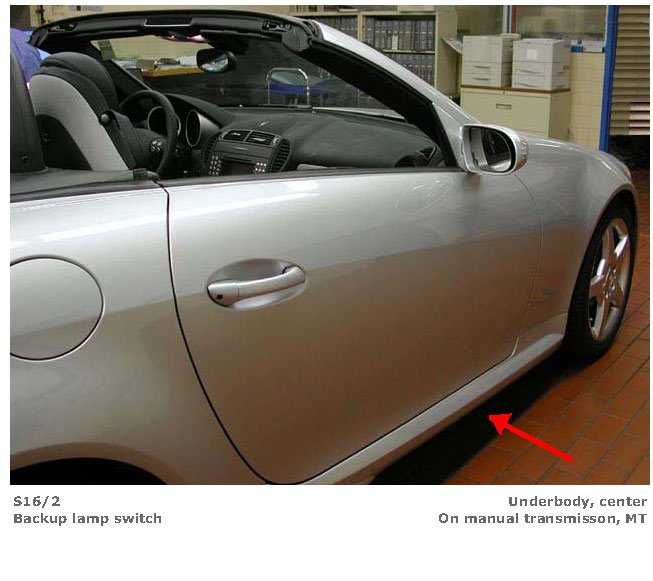

Backup Lamp Switch (View 1):

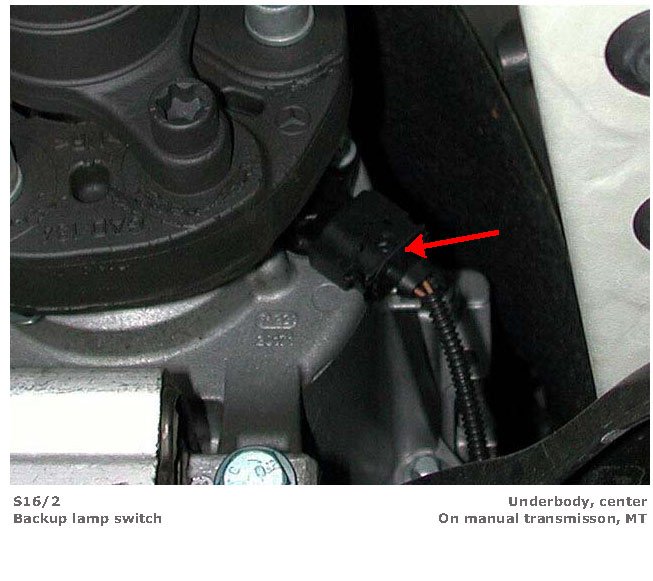

Backup Lamp Switch (View 2):
Backup Lamp Switch (View 3):
