Steering Angle Sensor: Description and Operation

GF42.45-P-5107RC Steering angle sensor, component description

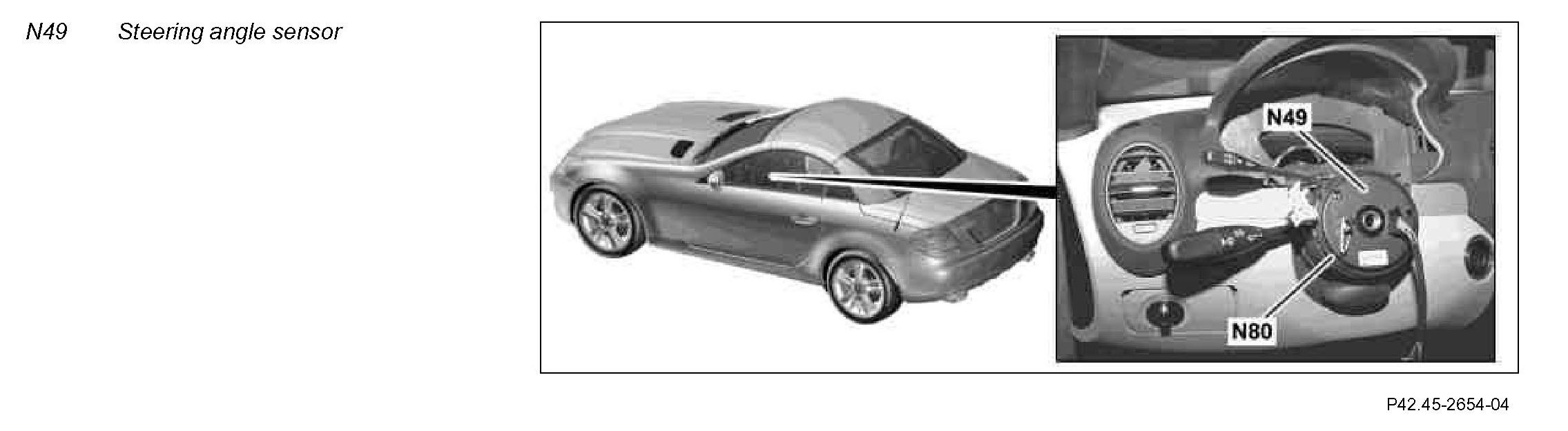

Component Identification:

Location
The steering angle sensor is integrated in the steering column tube module (N80).

Task
The steering angle sensor records the current position of the steering wheel and generates an electrical voltage signal proportional to the angle of steering turn. The signals from the steering angle sensor are read in by the steering column tube module.
