Convertible Top Switch: Description and Operation

GF77.39-P-3120RC Convertible Top Actuation Switch, Component Description
- refinement package
- as of model year 09

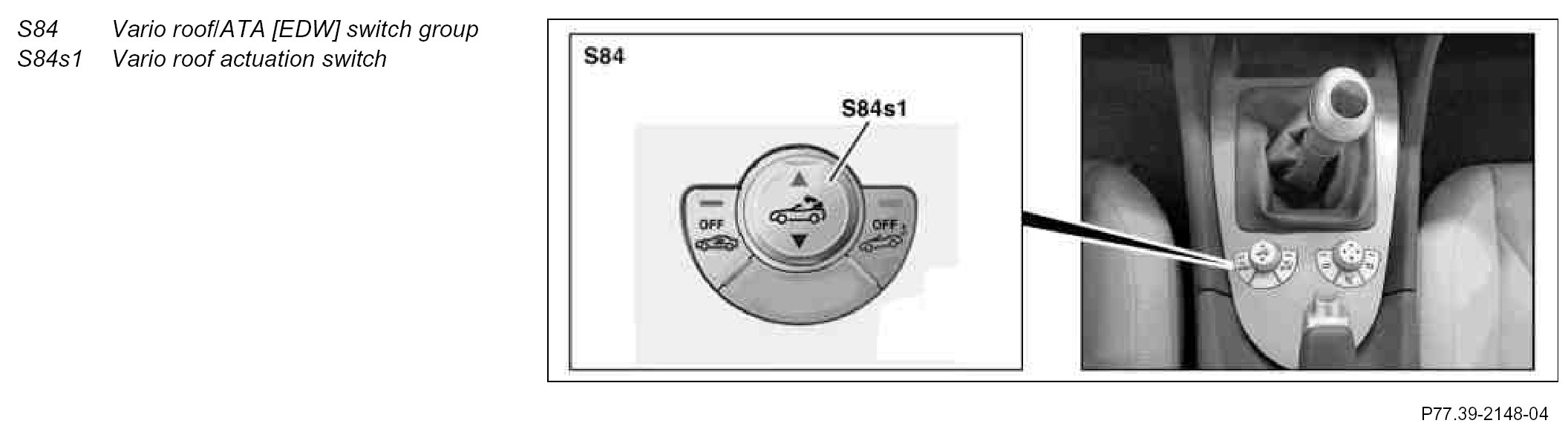

Component Identification:

Location
The Vario roof actuation switch (S84s1) is integrated in the Vario roof/ATA switch group (S84) and is located in the center console behind the left shift lever or selector lever.

Task
Trigger opening and closing functions of Vario roof. The Vario roof actuation switch (N72/1) is read in by the upper control panel control unit.
