AR05.20-P-7201VB Remove/Install Camshaft Adjuster for Exhaust Camshafts



AR05.20-P-7201VB Remove/Install Camshaft Adjuster for Exhaust Camshafts

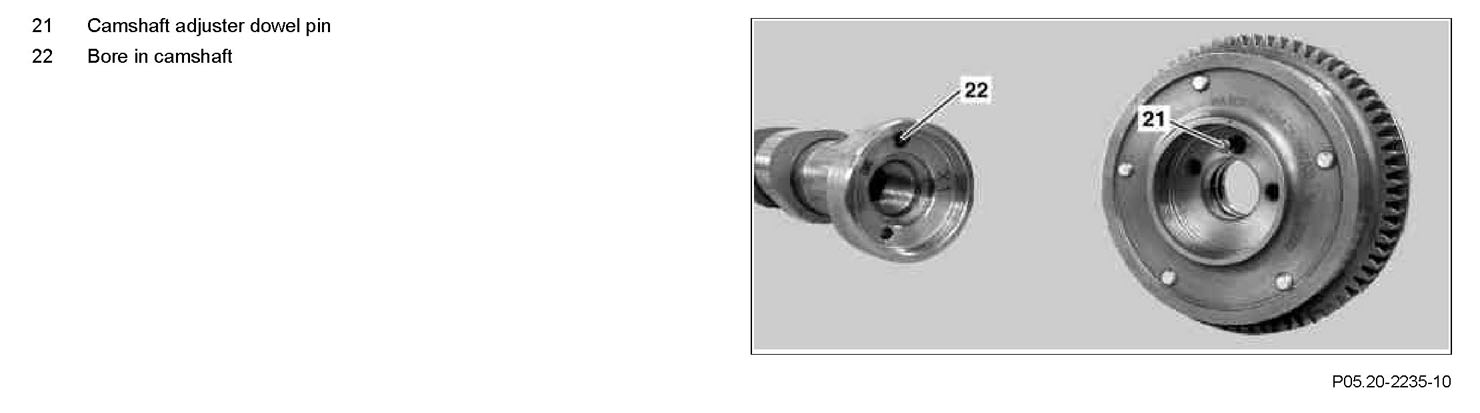

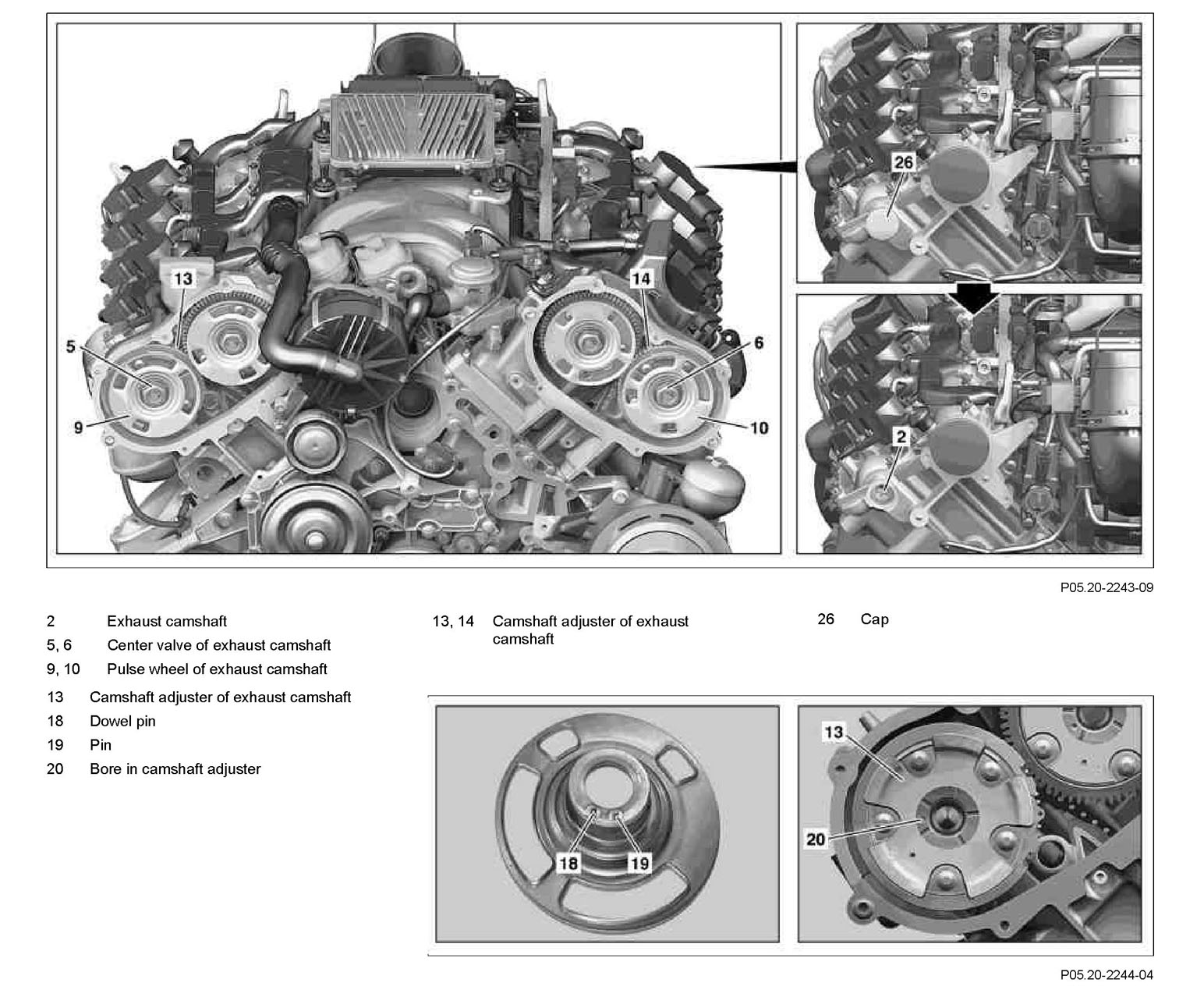

Component Identification:




Component Identification:

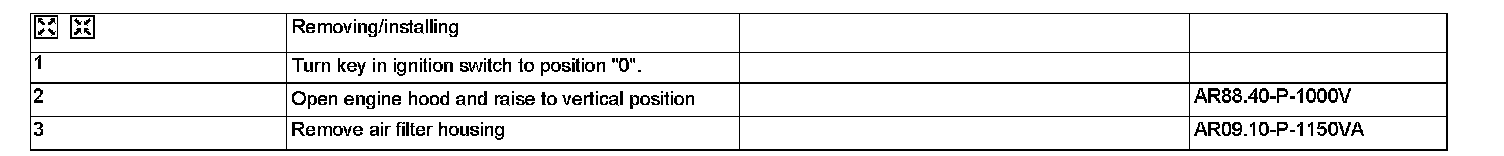

Removin/installing:

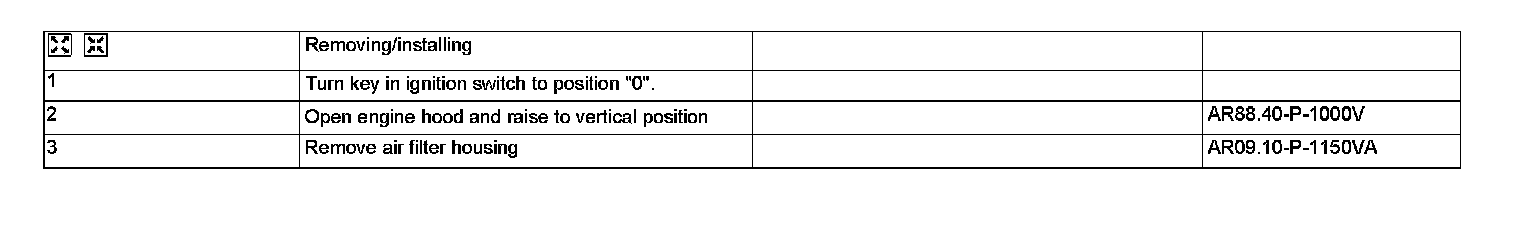

Removing/installing:

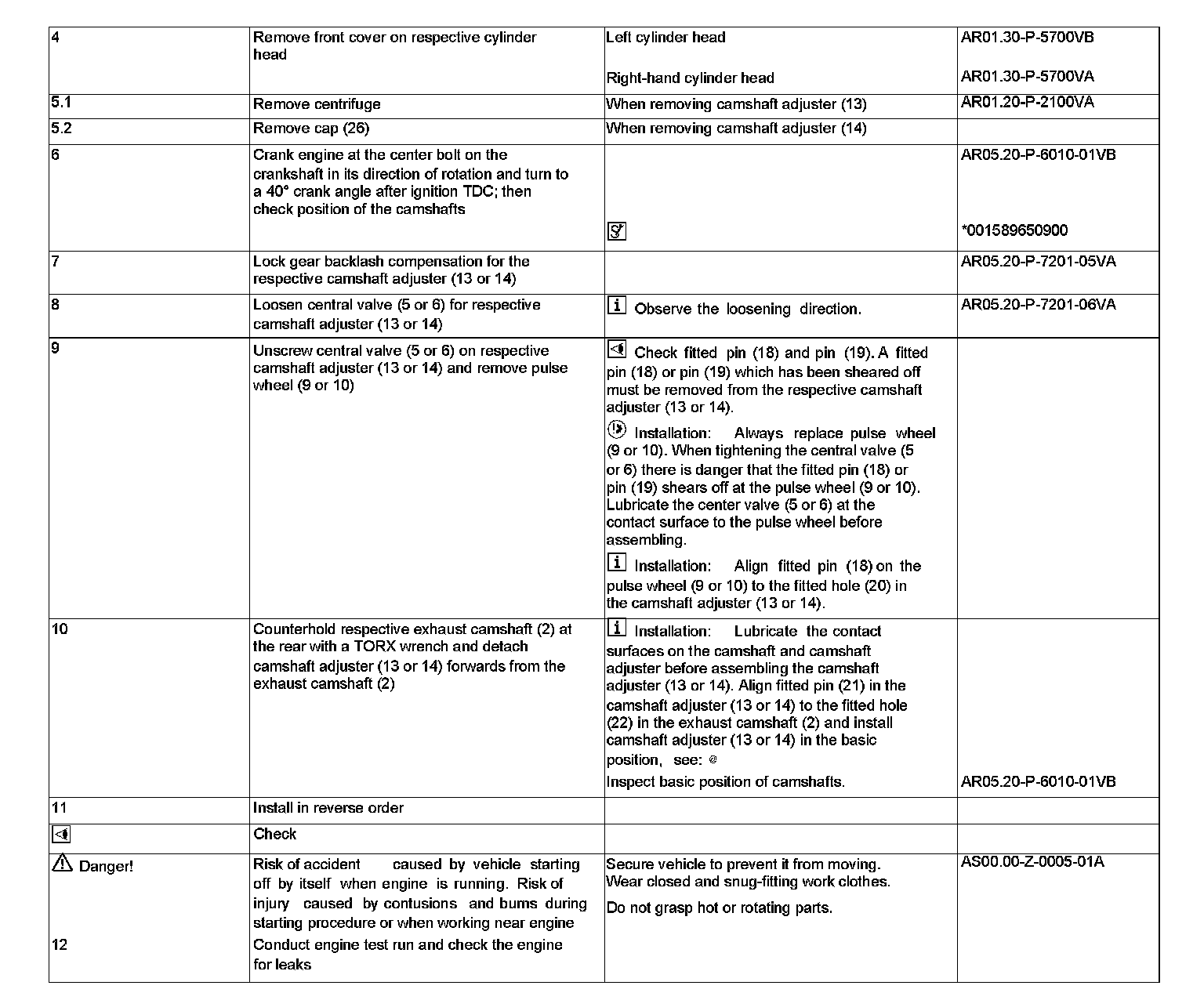

Steps 4-12:

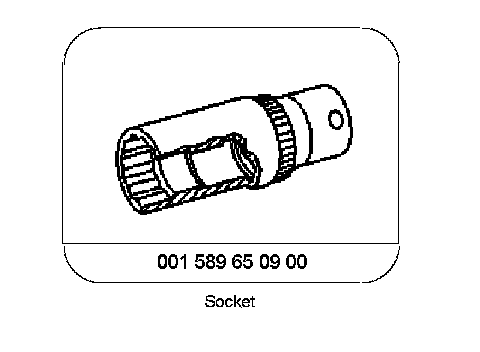

Special Tools:
