AR01.40-P-8000VA Remove/Install Timing Case Cover

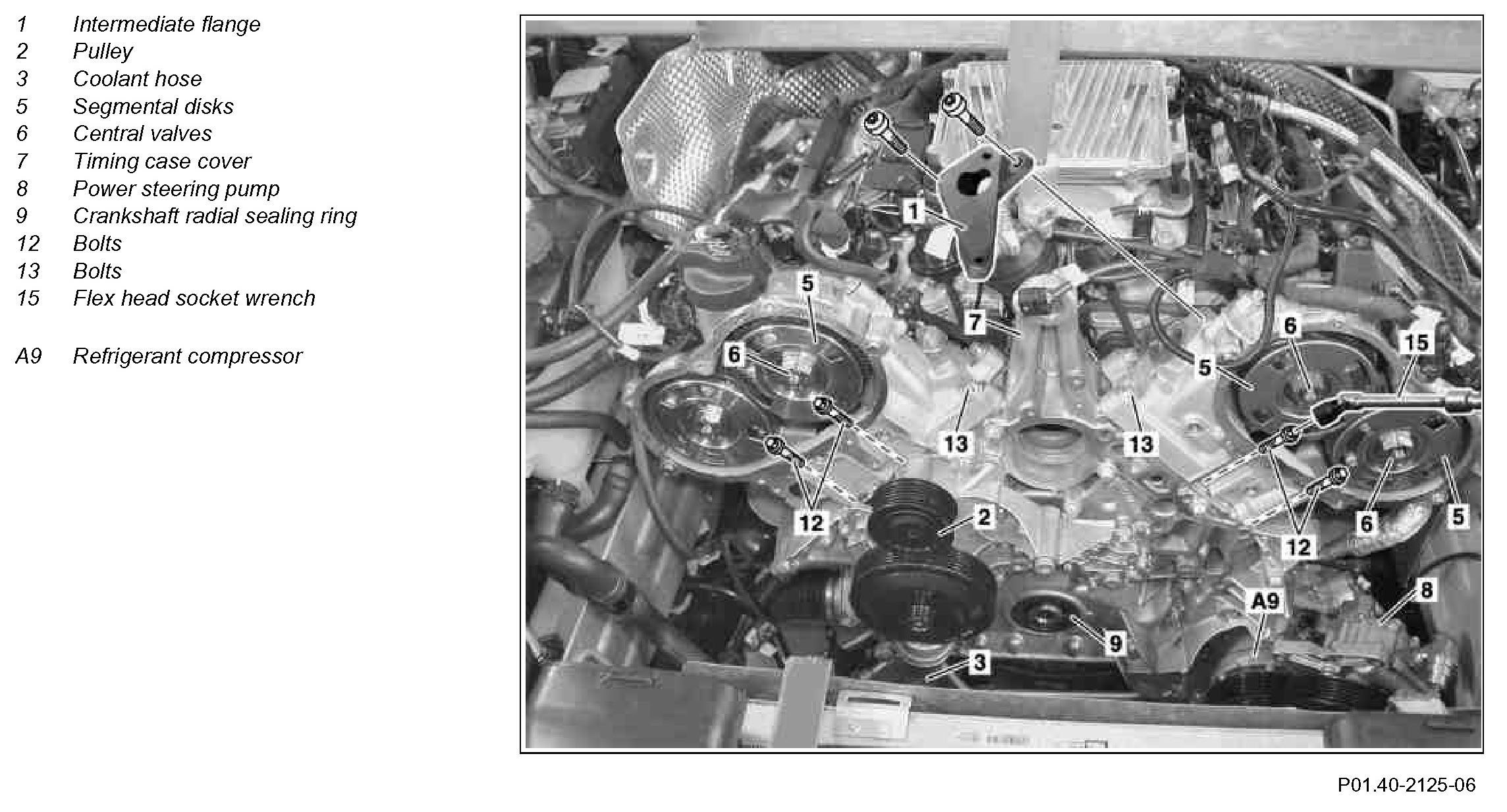

Component Identification:

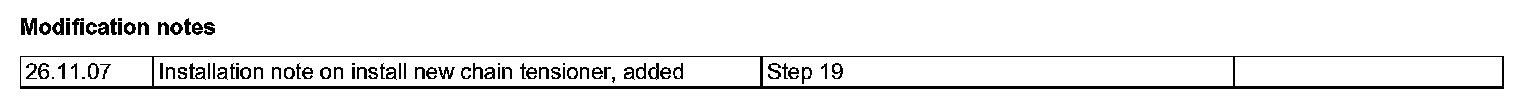

Modification notes:

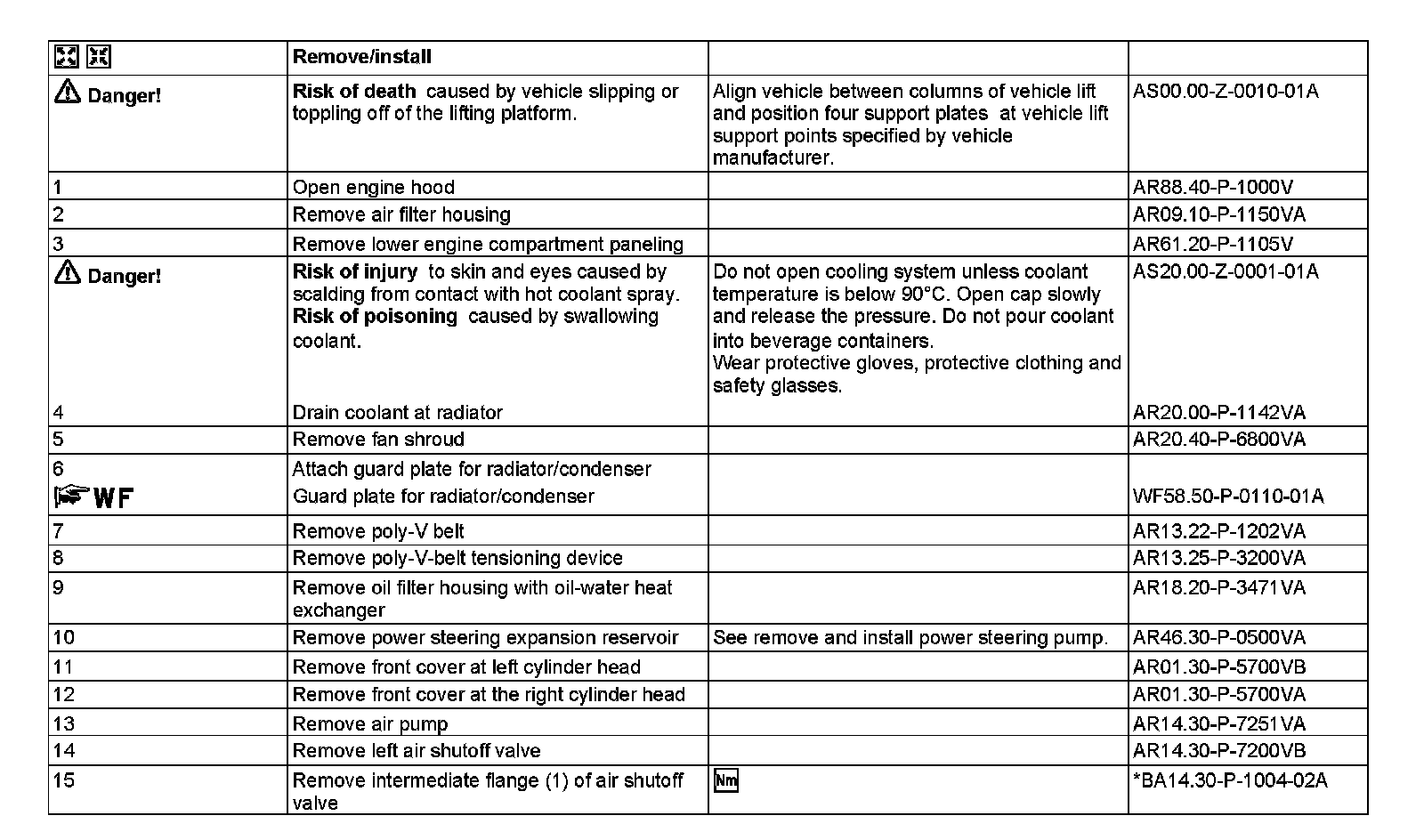

Steps 1-15:

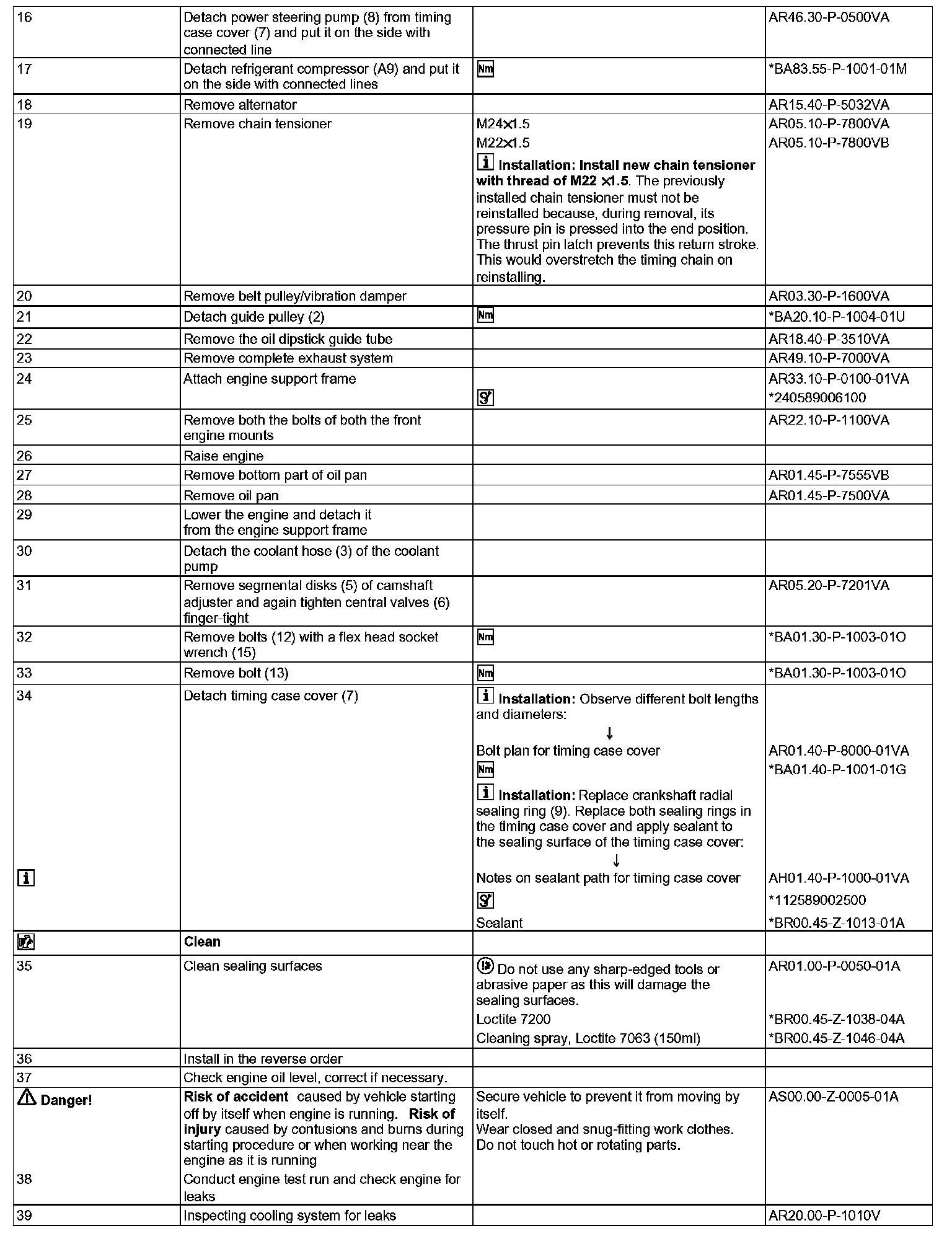

Steps 16-39:

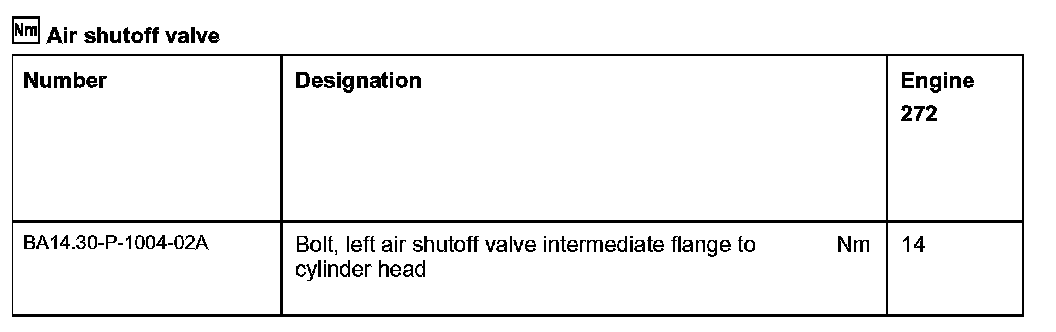

Air shutoff valve:

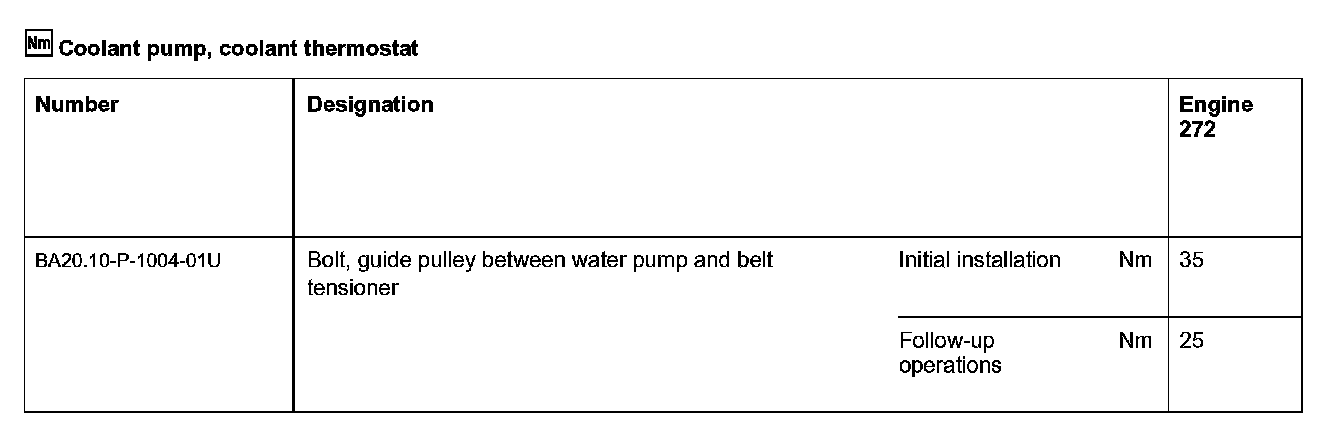

Coolant pump, coolant thermostat:

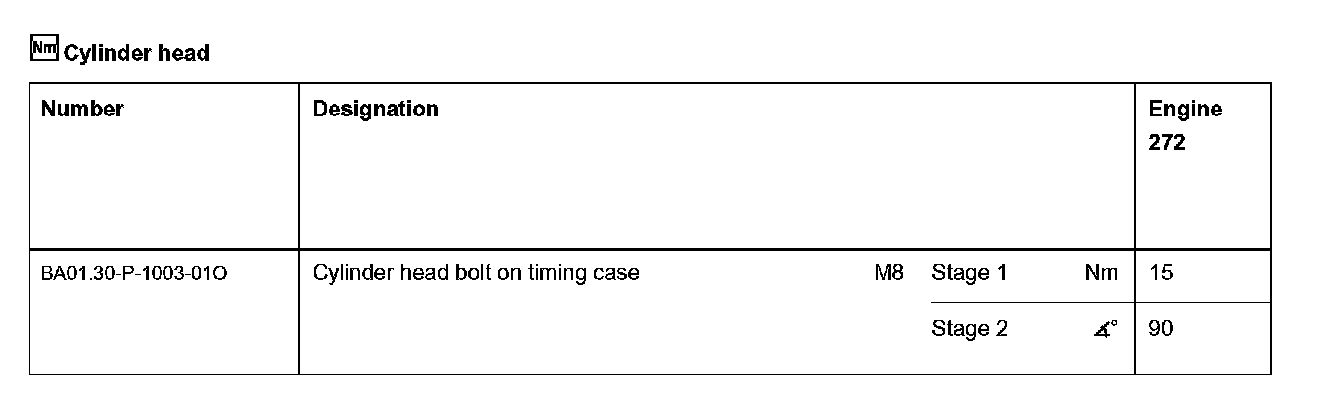

Cylinder head:

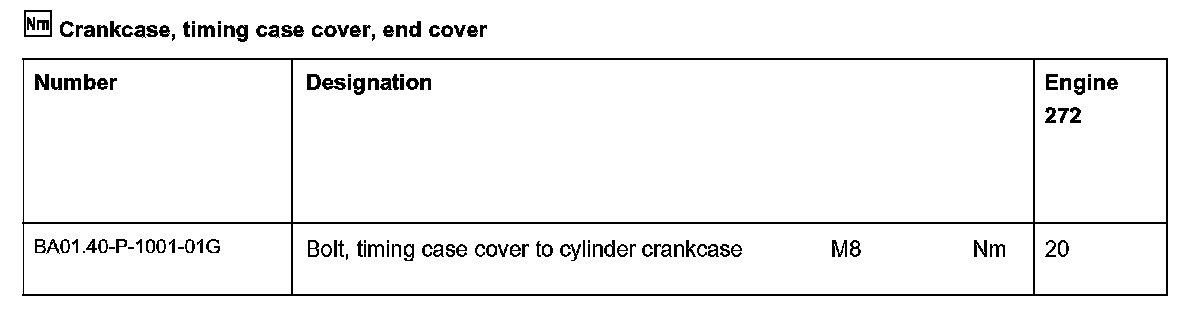

Crankcase, timing case cover, end cover:

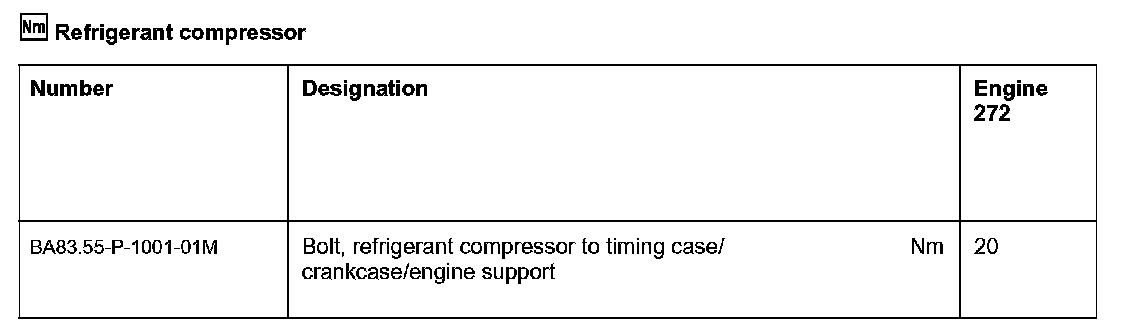

Refrigerant compressor:

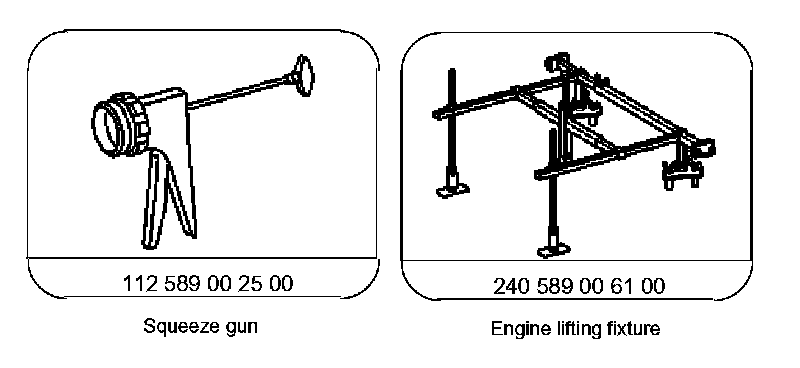

Special Tools:

Repair materials:
