AR01.30-P-5700VB Remove/Install Front Cover on Cylinder Head



AR01.30-P-5700VB Remove/install front cover on cylinder head
- LH cylinder head

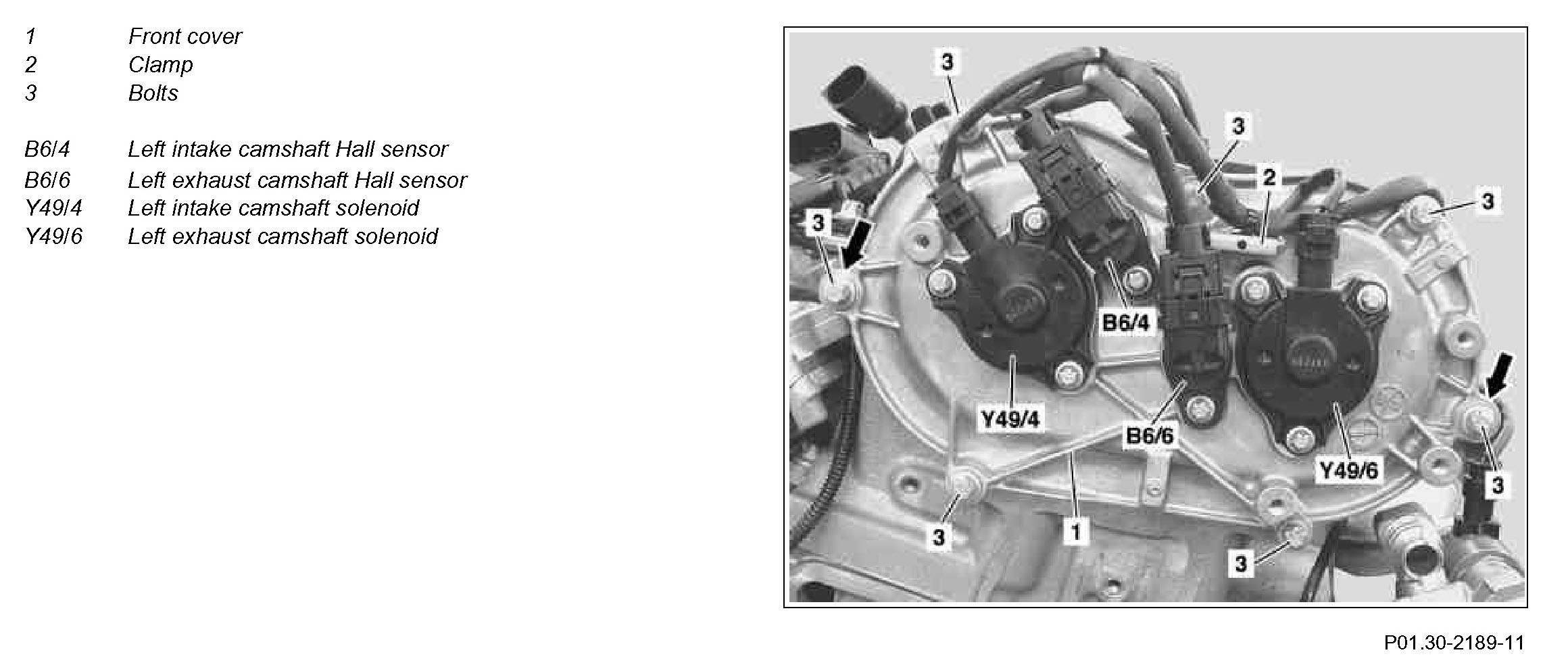

Component Identification:

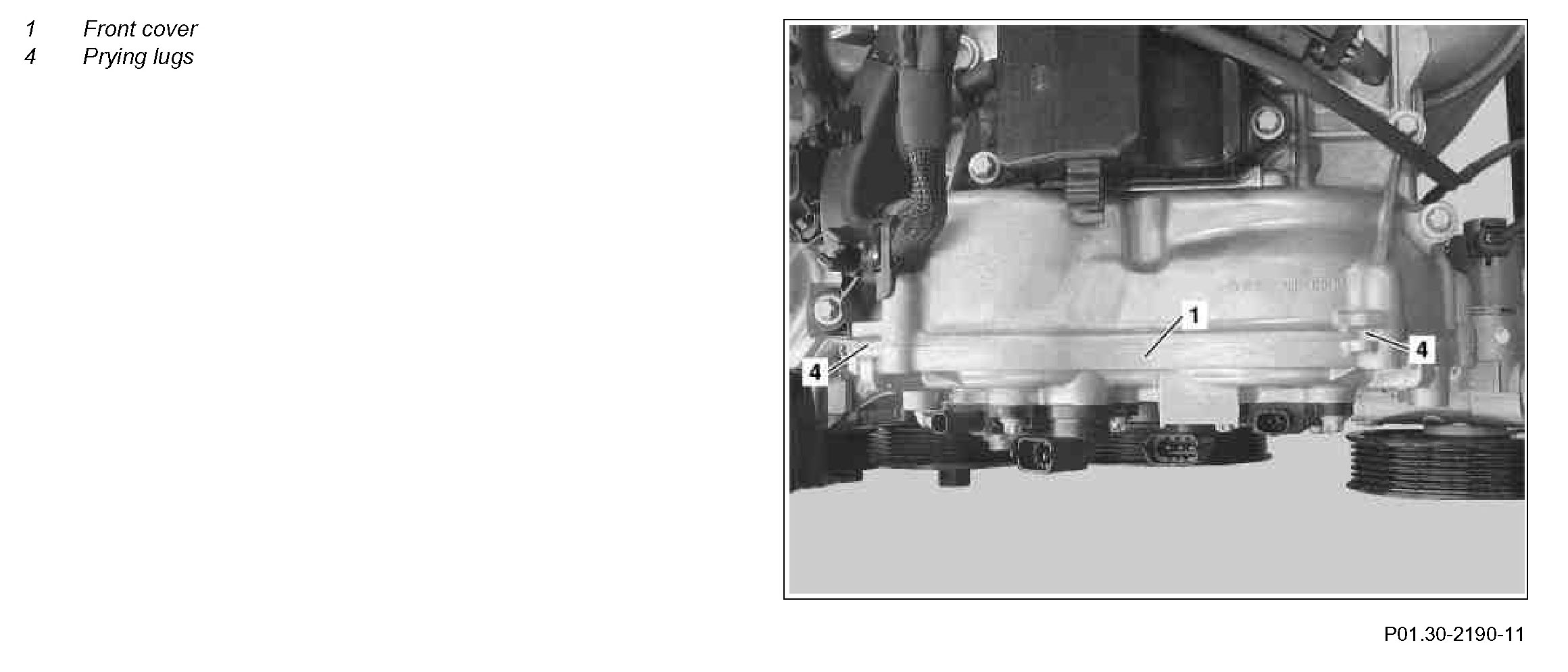

Component Identification:

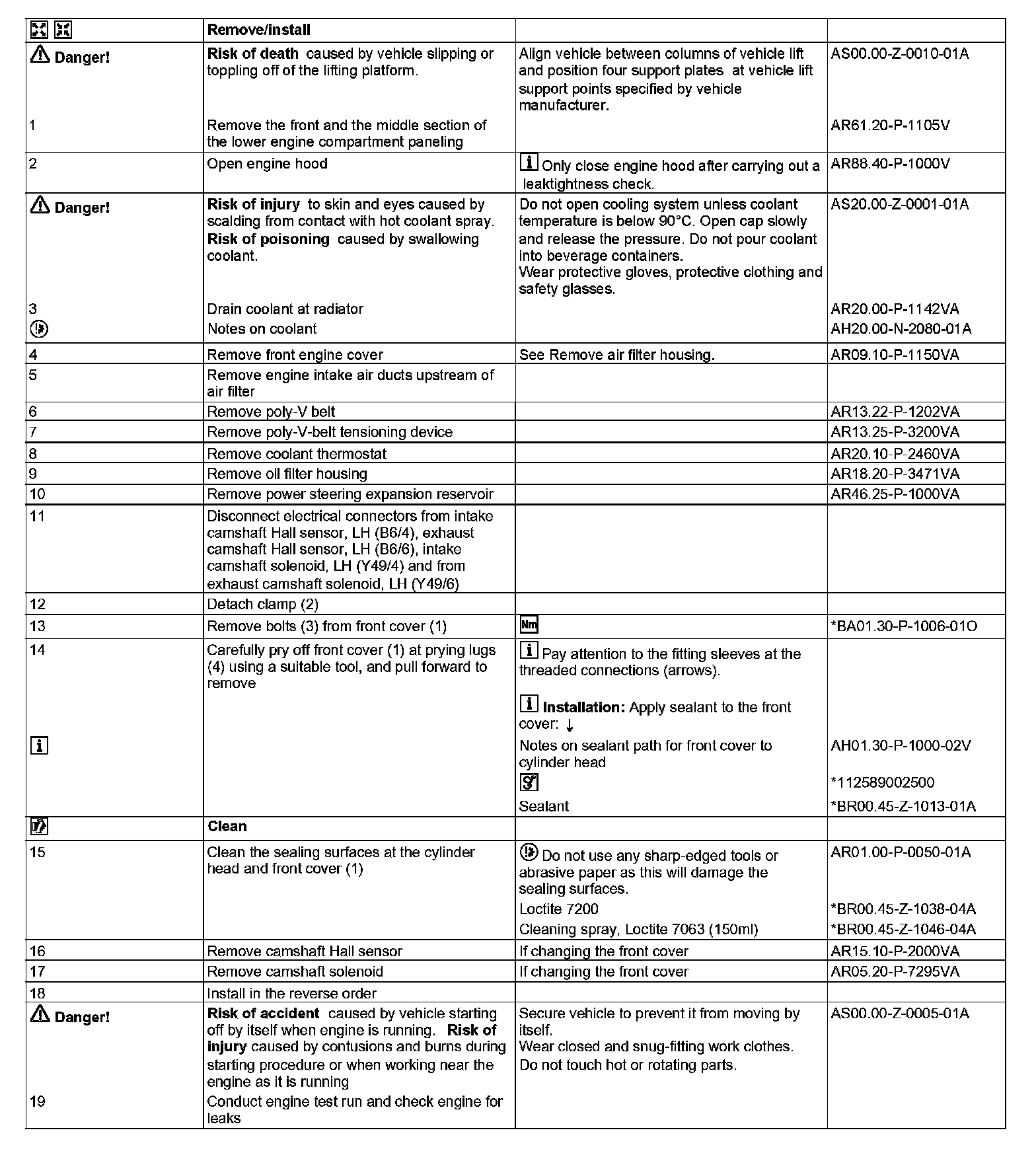

Steps 1-19:

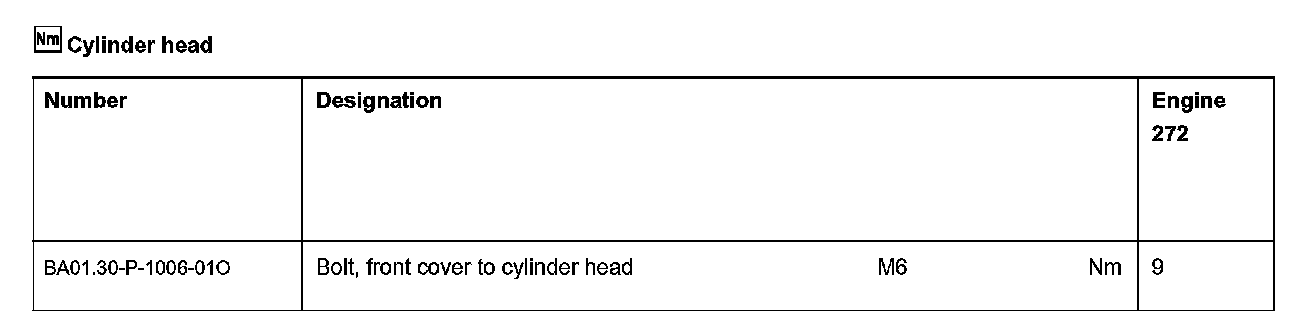

Cylinder head:

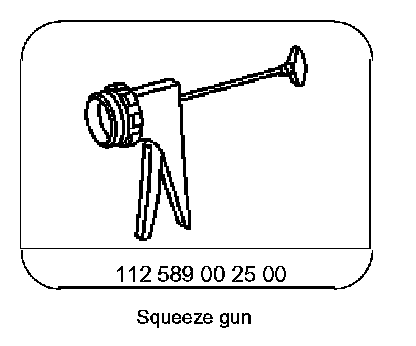

Special Tools:

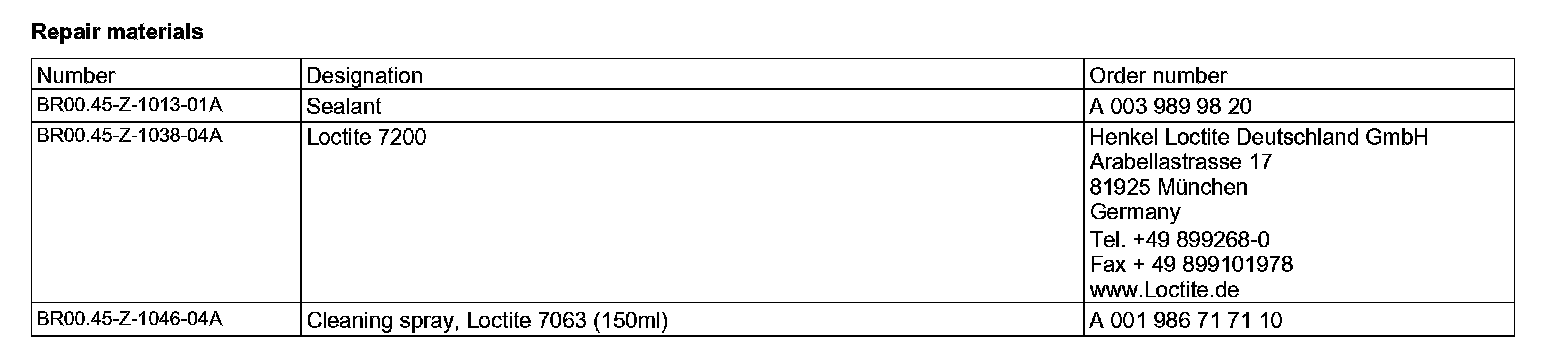

Repair materials:
