AR01.45-P-7500VA Remove/Install Oil Pan

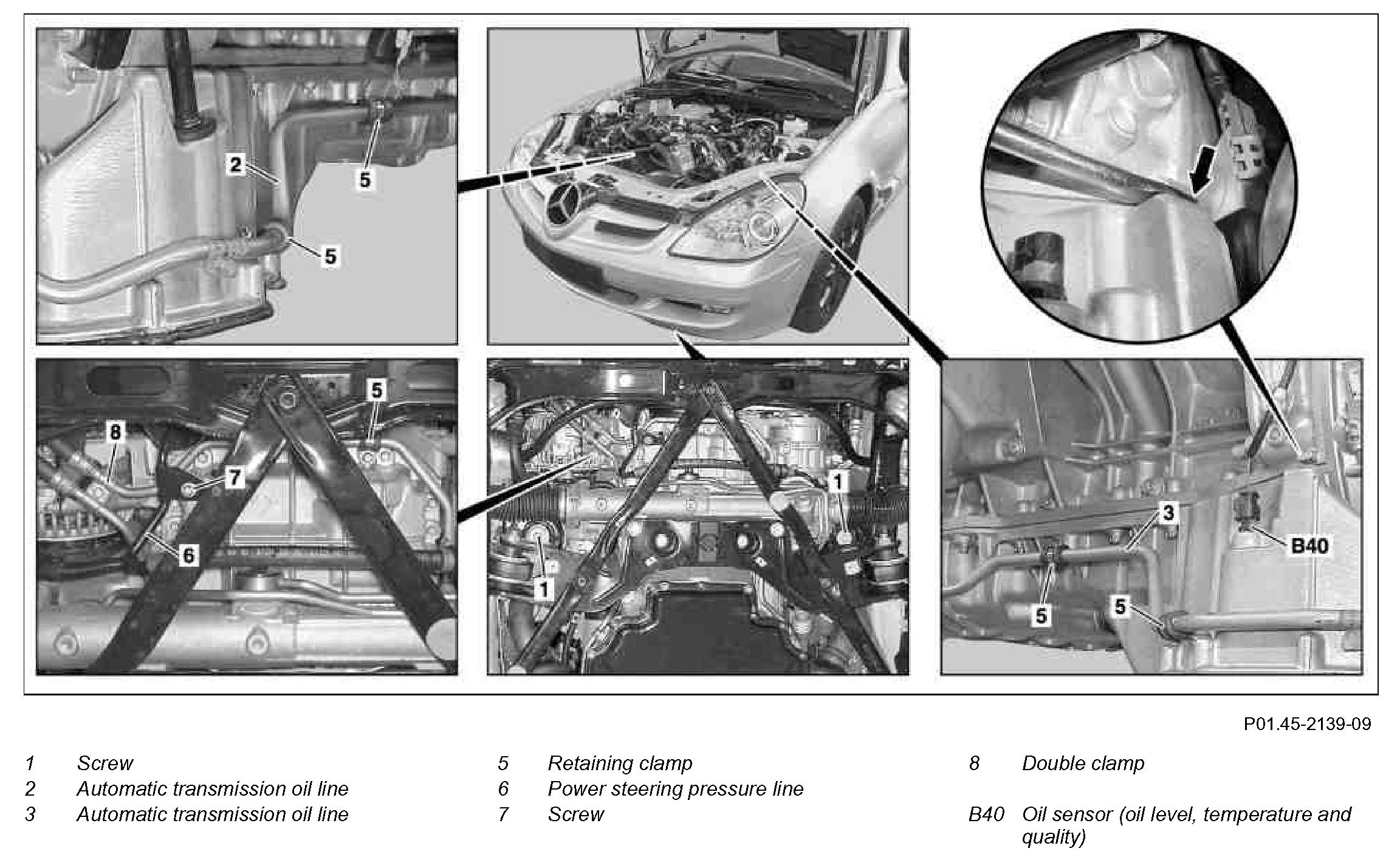

Component Identification:

Component Identification:

Modification notes:

Steps 1-19:

Step 20:

Engine suspension, engine mounts, engine supports:

Oil pan:

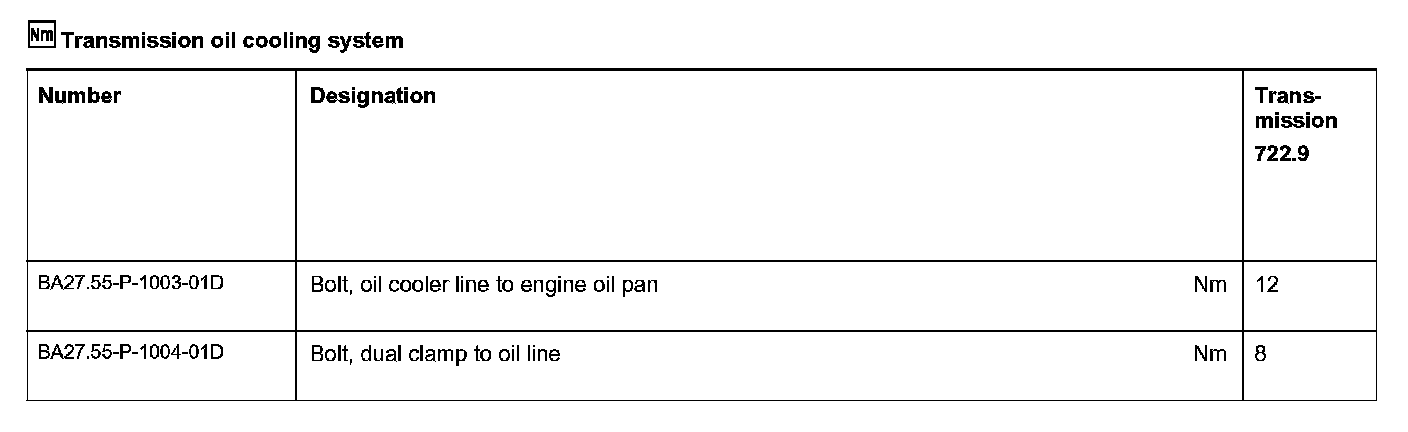

Transmission oil cooling system:

Housing:

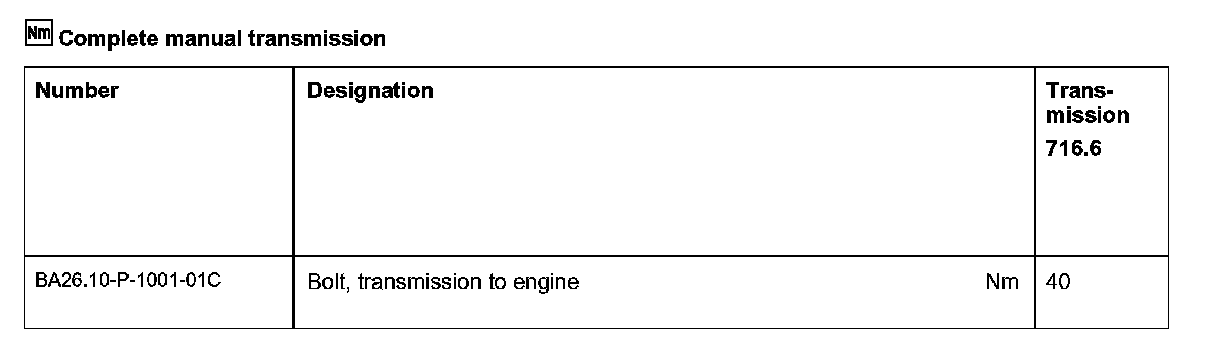

Complete manual transmission:

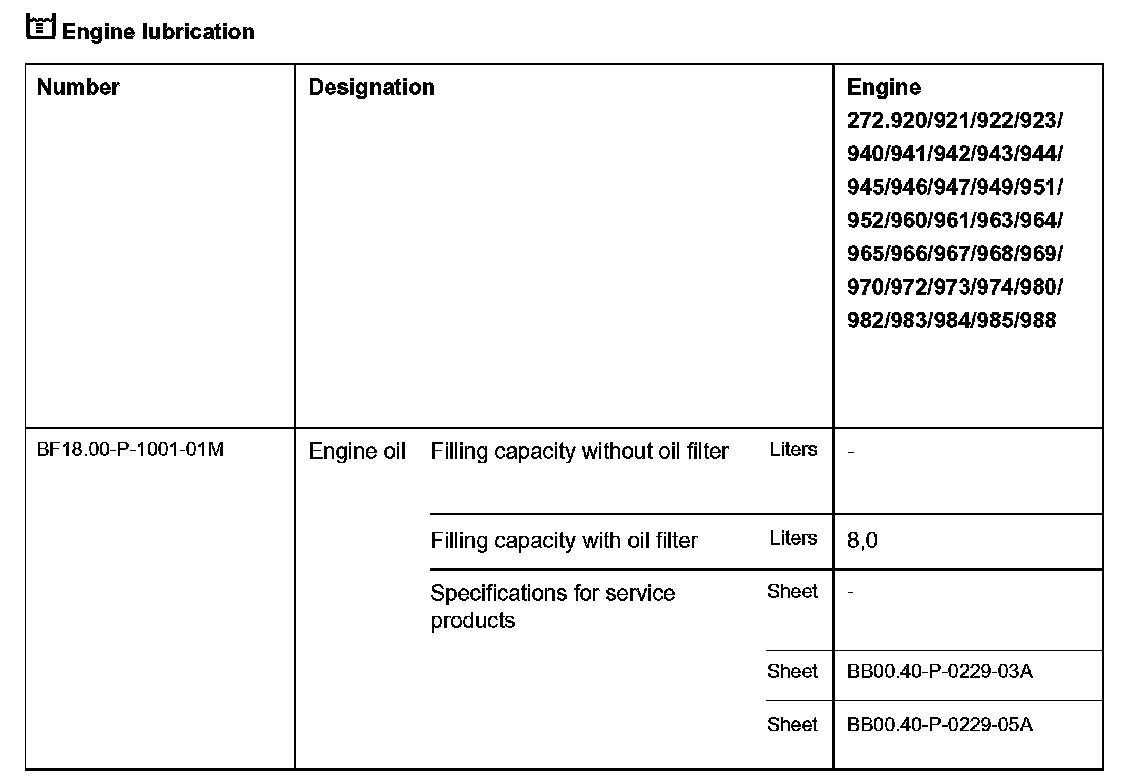

Engine lubrication:

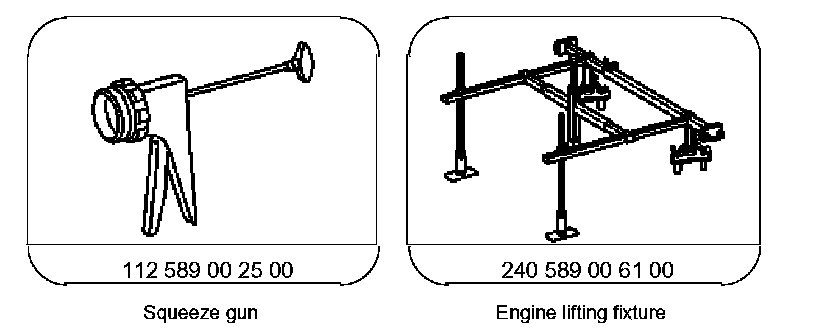

Special Tools:

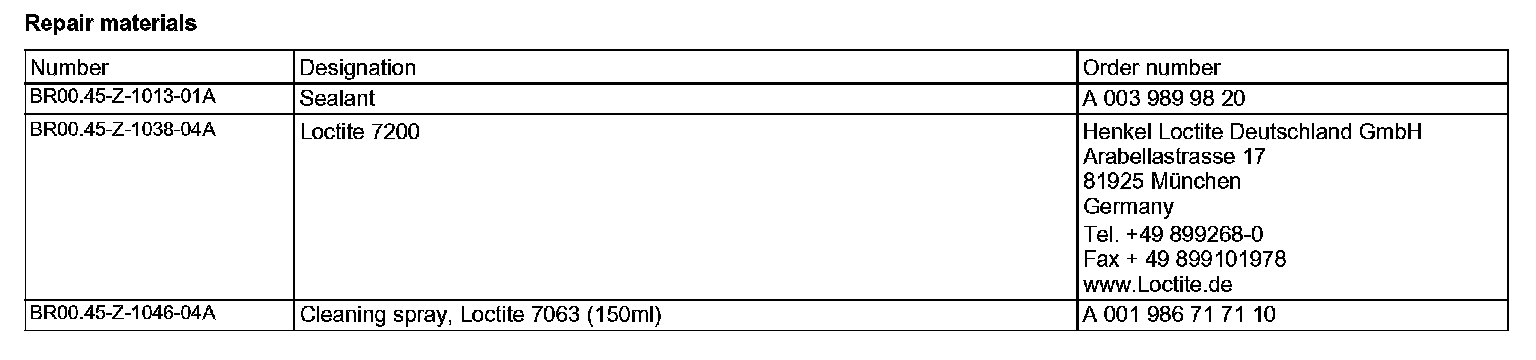

Repair materials:
