Home >> Mercedes Benz >> 2009 >> SLK 300 (171.454) V6-3.0L (272.942) >> Repair and Diagnosis >> Body and Frame >> Seats >> Description and Operation >> GF91.30-P-0006-01RC Airscarf System, Location of Components

GF91.30-P-0006-01RC Airscarf System, Location of Components



GF91.30-P-0006-01RC Airscarf System, Location Of Components
- with CODE (403) Airscarf system

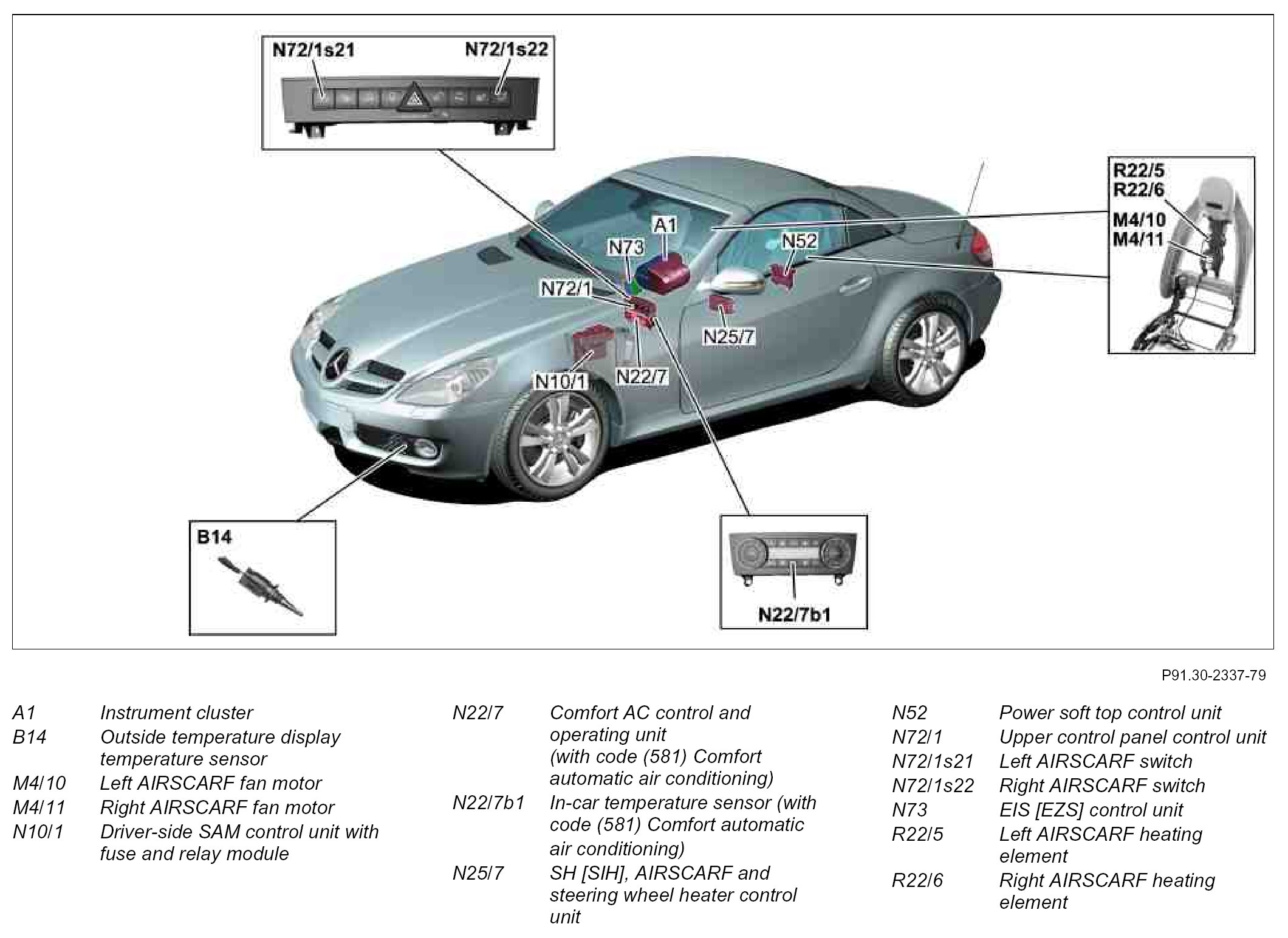

Component Identification:
