AR68.50-P-3000V Remove/Install Retractable Trunk Partition
AR68.50-P-3000V Remove/Install Retractable Trunk Partition
AR68.50-P-3000V Remove/install Retractable Trunk Partition

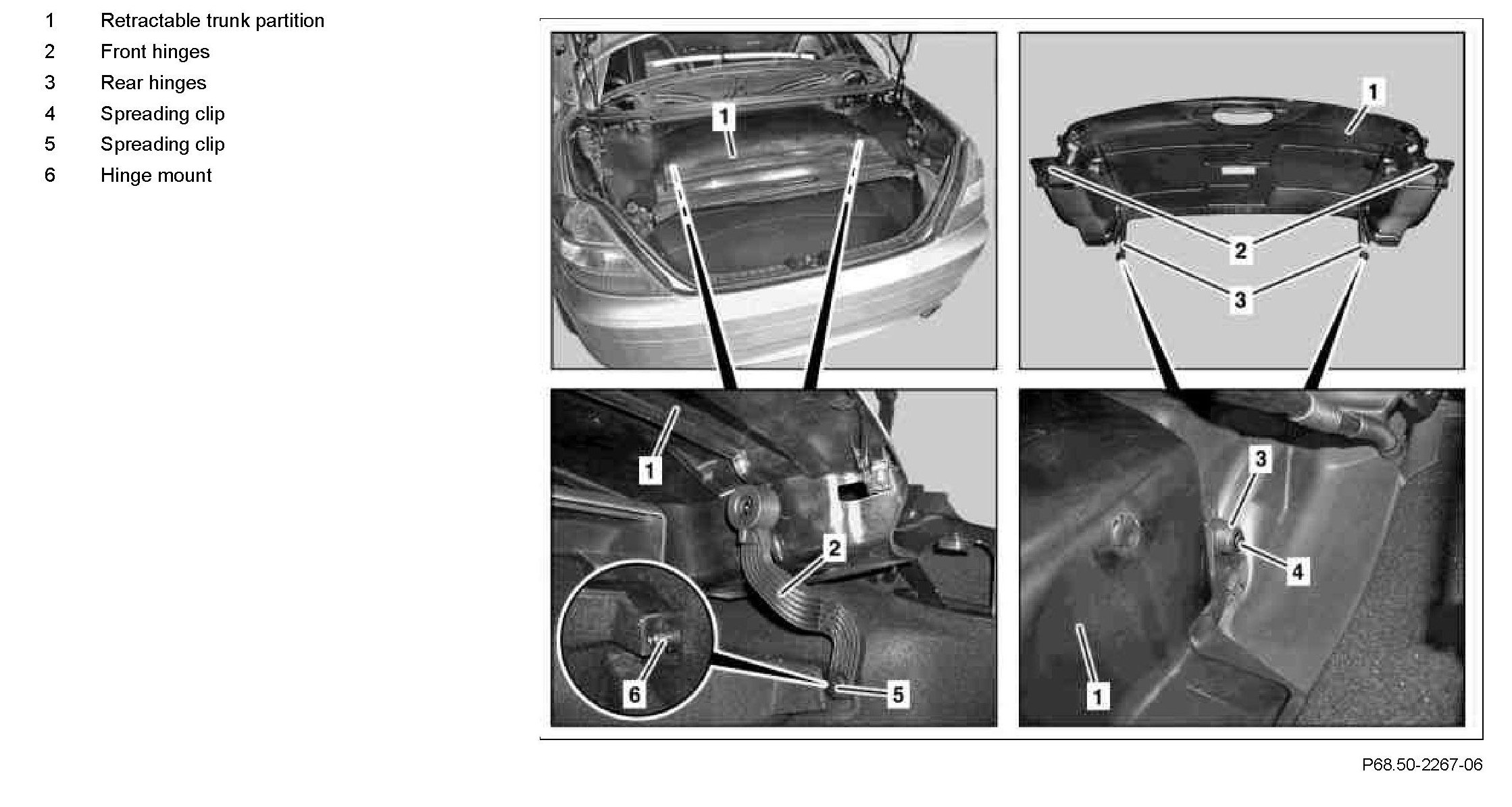

Component Identification:

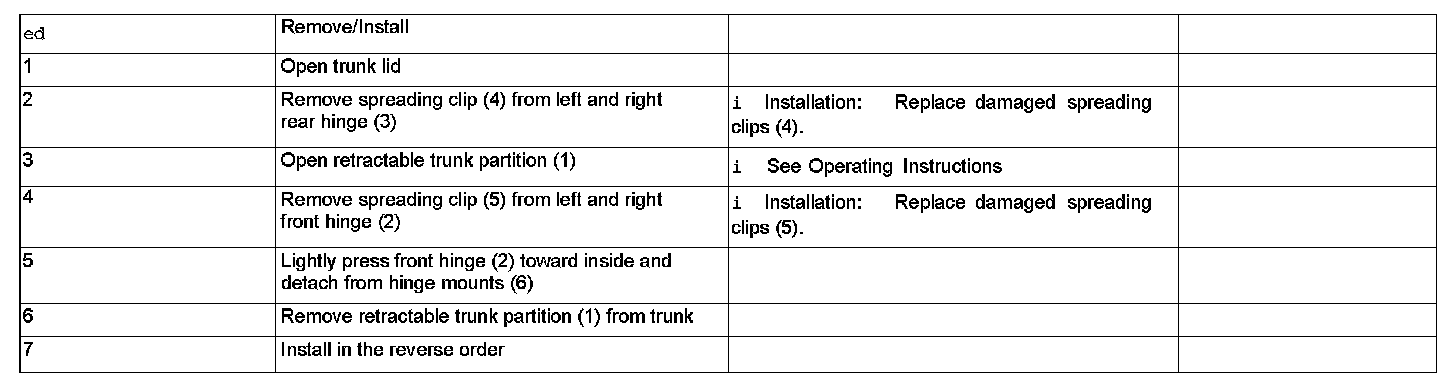

Steps 1 - 7:
